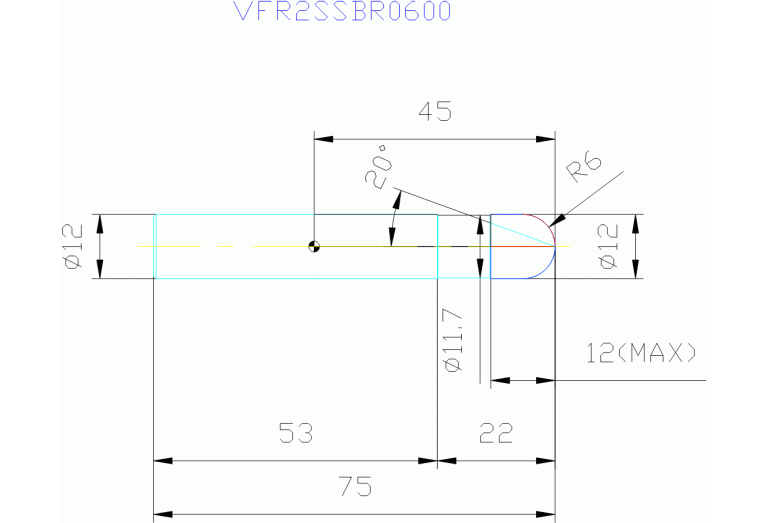

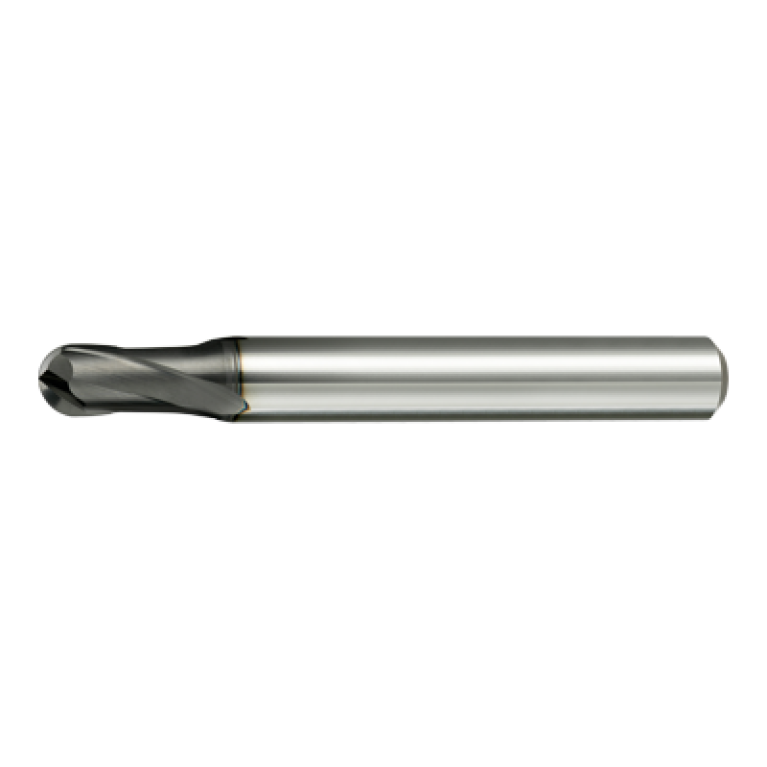

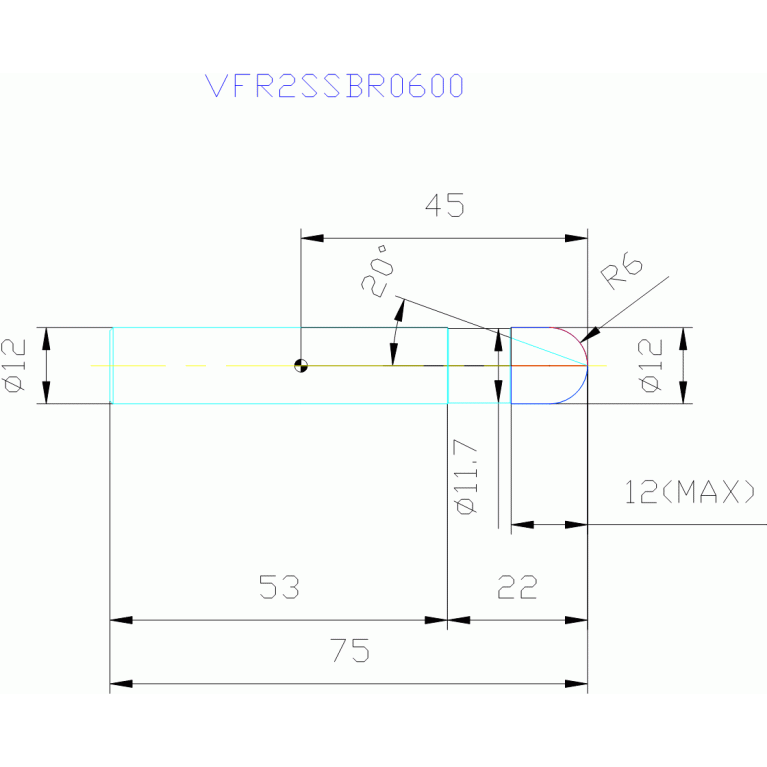

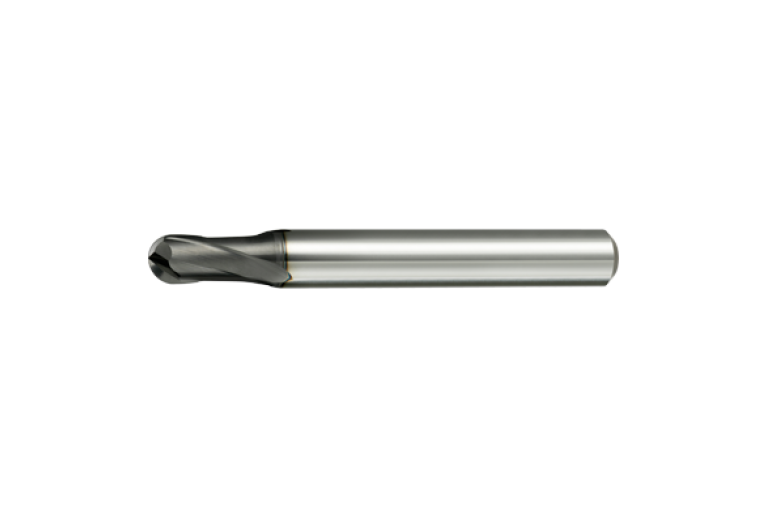

VFR2SSBR0600

Артикул: 10588857

В наличии

В корзину

Описание

Характеристики

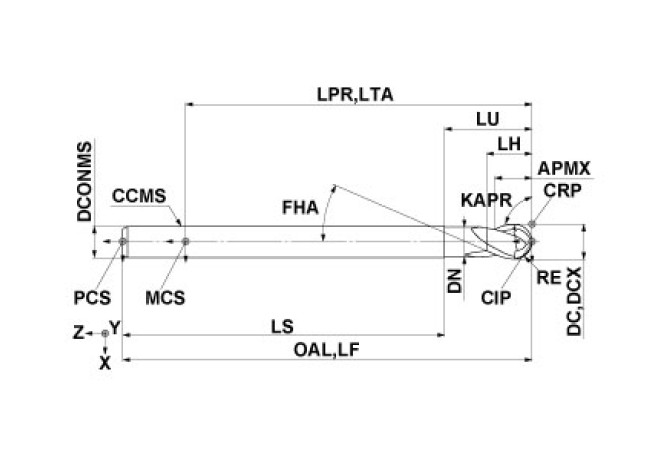

APMX Depth of cut maximum

12 mm

BMC Body material code

H - Solid carbide

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating

AlCrSiN-AlTiSiN

COMPC Company code

MI - Mitsubishi Materials

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

12 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2024

DIN

ZYL01200105

DN Neck diameter

11.7 mm

FamilyProducts

高硬度鋼加工用エンドミル

FHA Flute helix angle

20 Degree

FHH Flute helix hand

R - Hand of helix right

HAND Cutting direction

R - Right

ID Technical product number

10588857

Interface codes

J6 / J61

ISO

ZYL01G1200h$05

ISYC Subclass

303-06 - Ball-nosed end mill

LF Functional length

75 mm

LH Head length

12.15 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0120

LOC-03 DCONMS Diameter

12 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$05

LOC-03 ISO

ZYL01G1200h$05

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01200105

LPR Protruding length

45 mm

LS Shank length

53 mm

LU Usable length

22 mm

Name Identifying order number

VFR2SSBR0600

OAL Overall length

75 mm

PRFRAD Profile radius 1

6 mm

TCDCONMS ISO-tolerance class shank diameter

Working process

No working processes available

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
