Главная Каталог продукции Toolunited 10 303-06 - Ball-nosed end mill STB440.2.375D2B.3Z4 ALTIN

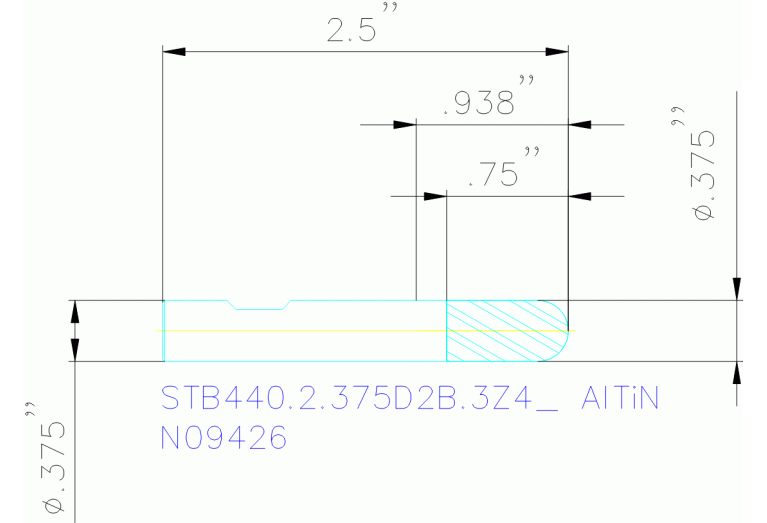

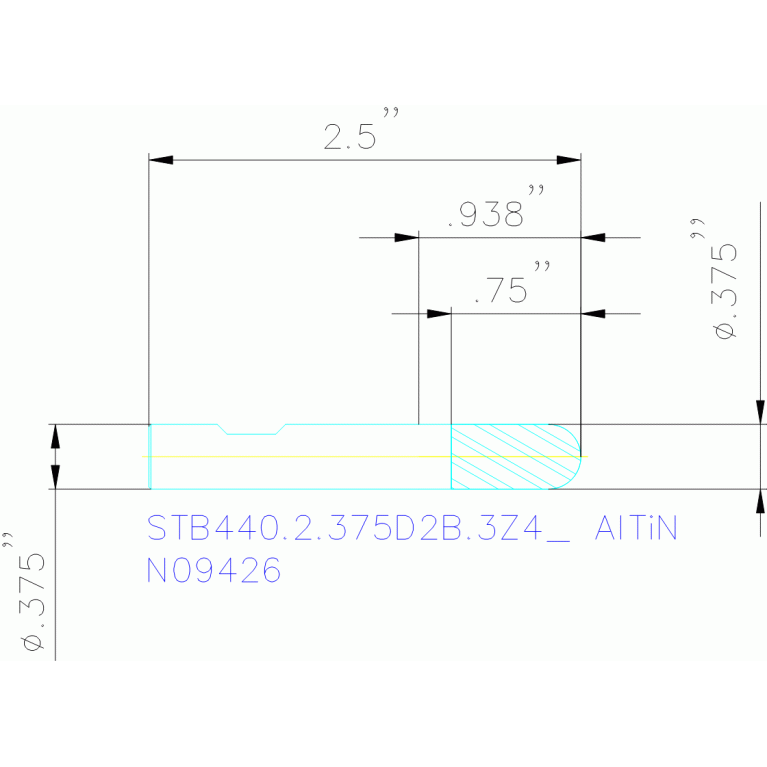

STB440.2.375D2B.3Z4 ALTIN

STB440.2.375D2B.3Z4 ALTIN STB440.2.375D2B.3Z4 ALTIN STB440.2.375D2B.3Z4 ALTIN STB440.2.375D2B.3Z4 ALTIN

STB440.2.375D2B.3Z4 ALTIN

SECO Tools
Артикул: 03083829
В наличии
В корзину
Описание
Характеристики
APMX Depth of cut maximum
19.05 mm
CNSC Coolant entry style code
0 - Without coolant entry
COATN Coating
AlTiN
COMPC Company code
SO - SECO Tools
CXSC Coolant exit style code
0 - Without coolant exit
DC Cutting diameter
9.525 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
ZYL03751025
FamilyProducts
STB440.2.375D2B.3Z4 ALTIN
FHA Flute helix angle
40 Degree
FHH Flute helix hand
R - Hand of helix right
GAMF Rake angle radial
5 Degree
GAMP Rake angle axial
12 Degree
GRDMFG Grade manufacturers designation
ALTIN
HAND Cutting direction
R - Right
ID Technical product number
03083829
Interface codes
J6 /
ISYC Subclass
303-06 - Ball-nosed end mill
LOC-03 CCFMS Connection code form
10
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
2 Inch
LOC-03 CZCMS Connection size code
0375
LOC-03 DCONMS Diameter
9.525 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL03751025
LS Shank length
39.675 mm
Name Identifying order number
STB440.2.375D2B.3Z4 ALTIN
NameAnsi Identifying order number inch alternative
STB440.2-0.375-D2-B.3-Z4
OAL Overall length
63.5 mm
PRFRAD Profile radius 1
4.76 mm
Working process
No working processes available
WT Weight of item
0.04 kg
ZEFF Face effective cutting edge count
4
ZEFP Peripheral effective cutting edge count
4
