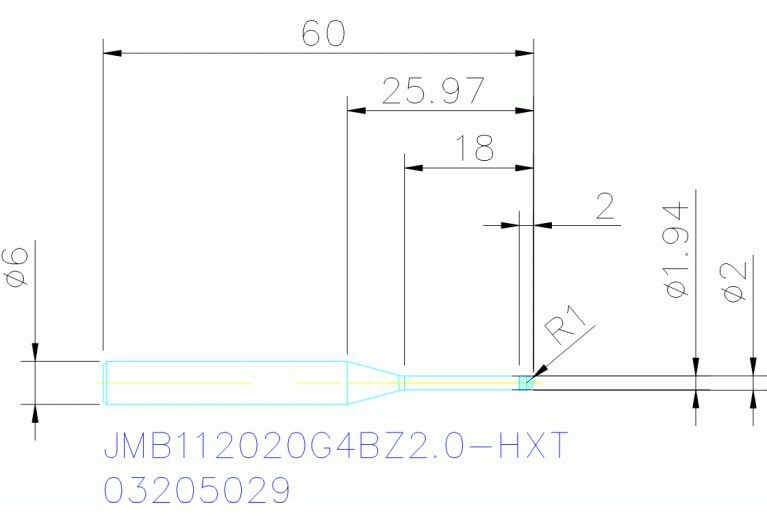

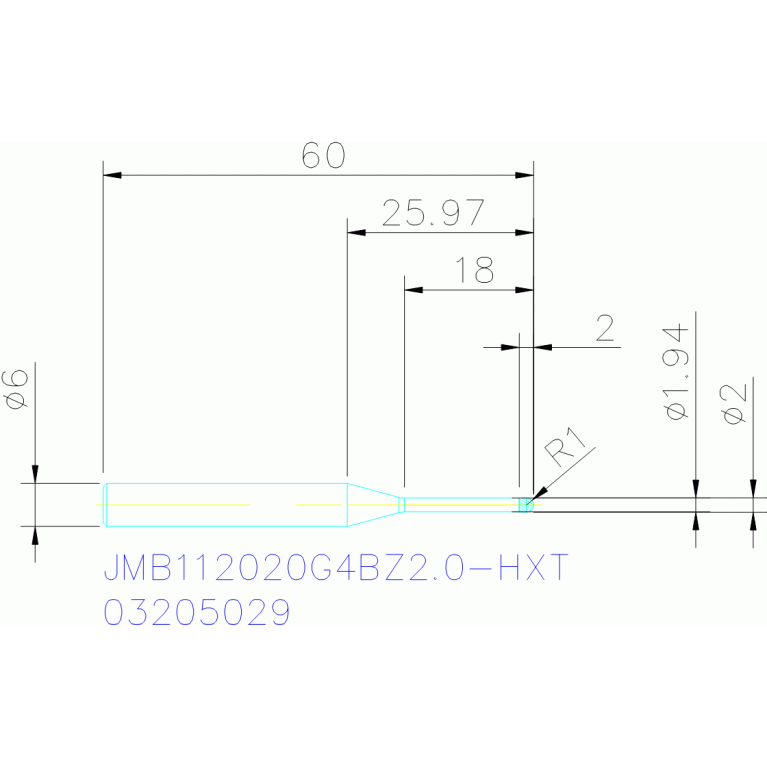

JMB112020G4BZ2.0-HXT
JMB112020G4BZ2.0-HXT
Артикул:
03205029
В наличии
Характеристики
APMX Depth of cut maximum
2 mm
CNSC Coolant entry style code
0 - Without coolant entry
COATN Coating
HXT
COMPC Company code
SO - SECO Tools
CXSC Coolant exit style code
0 - Without coolant exit
DC Cutting diameter
2 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
ZYL00600105
DN Neck diameter
1.94 mm
FamilyProducts
JMB112020G4BZ2.0-HXT
FHA Flute helix angle
28 Degree
FHH Flute helix hand
R - Hand of helix right
GAMF Rake angle radial
-1 Degree
GAMP Rake angle axial
-1 Degree
HAND Cutting direction
R - Right
ID Technical product number
03205029
Interface codes
J6 /
ISYC Subclass
303-06 - Ball-nosed end mill
LN Neck length
18 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0060
LOC-03 DCONMS Diameter
6 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL00600105
LS Shank length
36 mm
Name Identifying order number
JMB112020G4BZ2.0-HXT
OAL Overall length
60 mm
PRFRAD Profile radius 1
1 mm
Working process
No working processes available
WT Weight of item
0.09 kg
ZEFF Face effective cutting edge count
2
ZEFP Peripheral effective cutting edge count
2
