Главная Каталог продукции Toolunited 10 303-06 - Ball-nosed end mill IMX20B2S20020 EP8110

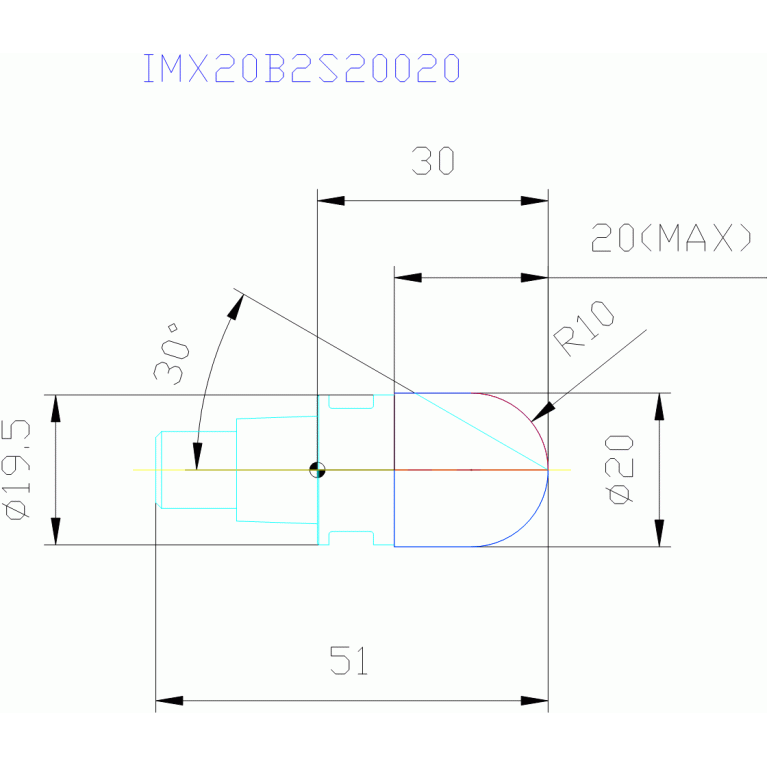

IMX20B2S20020 EP8110

Артикул: 10583333

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

20 mm

BMC Body material code

H - Solid carbide

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

MI - Mitsubishi Materials

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

20 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/1/2022

DIN

SAM02000105

FamilyProducts

solid end mills

FHA Flute helix angle

30 Degree

FHH Flute helix hand

R - Hand of helix right

GRDMFG Grade manufacturers designation

EP8110

HAND Cutting direction

R - Right

ID Technical product number

10583333

Interface codes

J6 /

ISYC Subclass

303-06 - Ball-nosed end mill

LH Head length

30 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

SAM Screw mounting MAPAL

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0200

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SAM02000105

LPR Protruding length

30 mm

MILTTY Mill tool type ISO

L - Face and side end mill with ball nose (more then one indexable insert pro cutting edge) 90°

Name Identifying order number

IMX20B2S20020 EP8110

PRFRAD Profile radius 1

10 mm

Working process

No working processes available

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
