Главная Каталог продукции Toolunited 10 303-06 - Ball-nosed end mill H8111118-16

H8111118-16

Артикул: 5083961

В наличии

В корзину

Описание

Характеристики

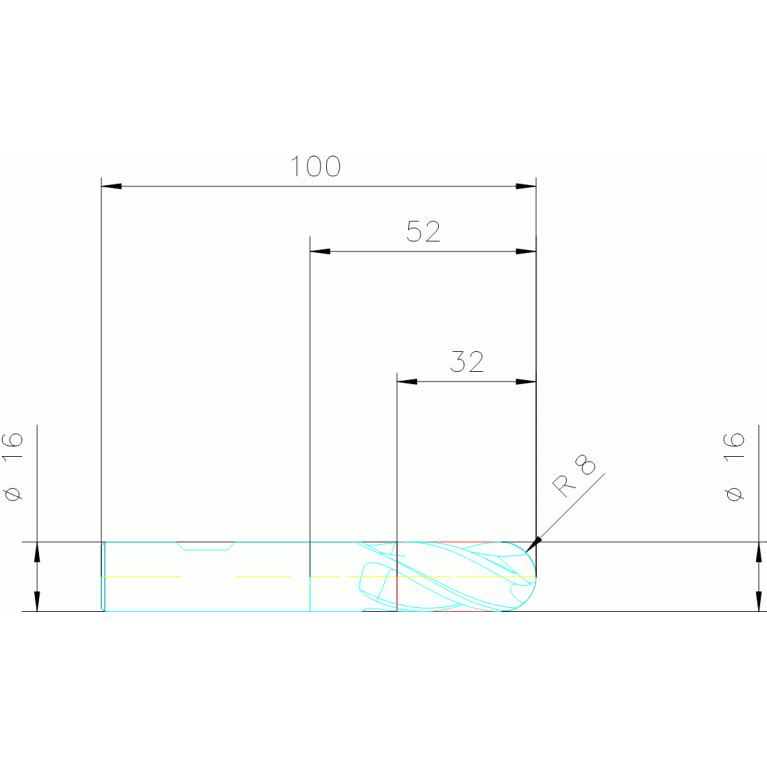

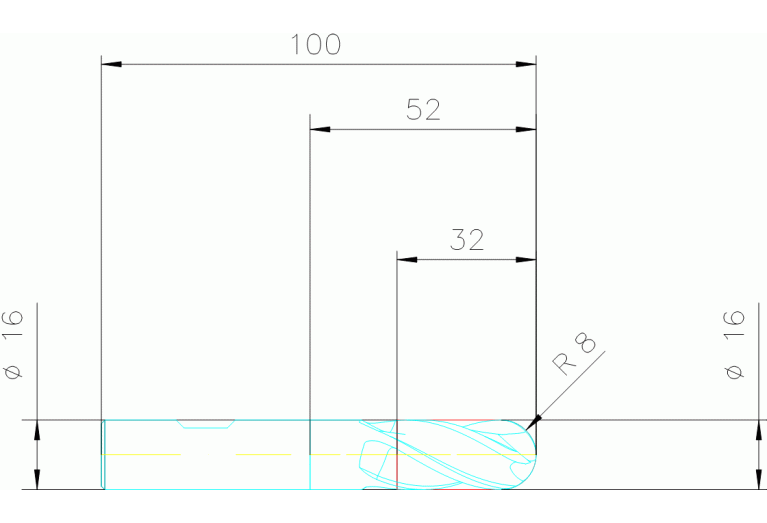

APMX Depth of cut maximum

32 mm

BMC Body material code

H - Solid carbide

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

W - Walter

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

16 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2023

DIN

ZYL01601005

FamilyProducts

Solid carbide ball-nose copy milling cutters

FHA Flute helix angle

30 Degree

FHH Flute helix hand

R - Hand of helix right

GAMF Rake angle radial

10.5 Degree

GAMP Rake angle axial

1.5 Degree

GRDMFG Grade manufacturers designation

TAX

HAND Cutting direction

R - Right

ID Technical product number

5083961

Interface codes

J6 / J61

ISO

ZYL10G1600h$06

ISYC Subclass

303-06 - Ball-nosed end mill

LF Functional length

76 mm

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

ZYL cylindrical shank

LOC-03 CCUMS Unit base

0 Metric

LOC-03 CZCMS Size code

0160

LOC-03 DCONMS Diameter

16 mm

LOC-03 TCDCONCDMS Tolerance class coded

h$06

LOC-03 ISO

ZYL10G1600h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01601005

LPR Protruding length

52 mm

LS Shank length

48 mm

Name Identifying order number

H8111118-16

OAL Overall length

100 mm

PRFRAD Profile radius 1

8 mm

RMPX Ramping angle maximum

15 Degree

RPMX Rotational speed maximum

76872 1/min

STDLET Standard letter to the standard number

STDNO Standard

P-NORM L

TCDCONMS ISO-tolerance class shank diameter

Working process

FEC - Square shoulder milling,FFO - Die milling,FSE - Counter-sinking

WT Weight of item

0.254 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
