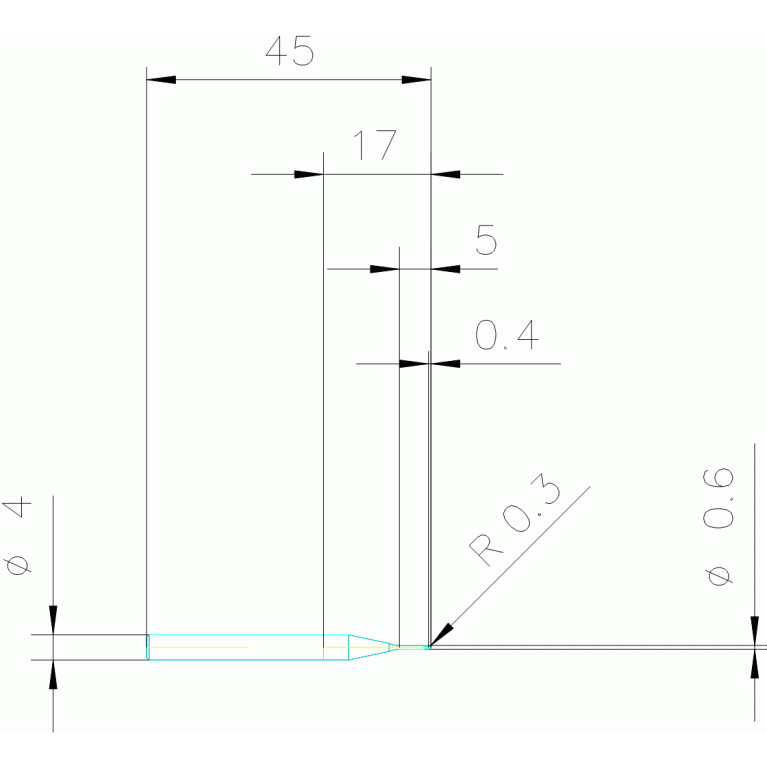

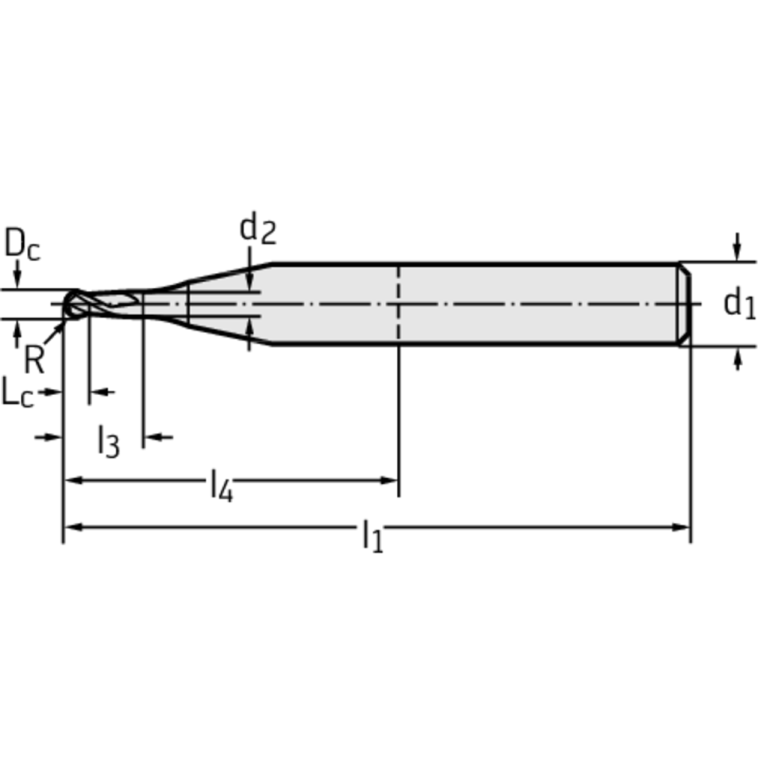

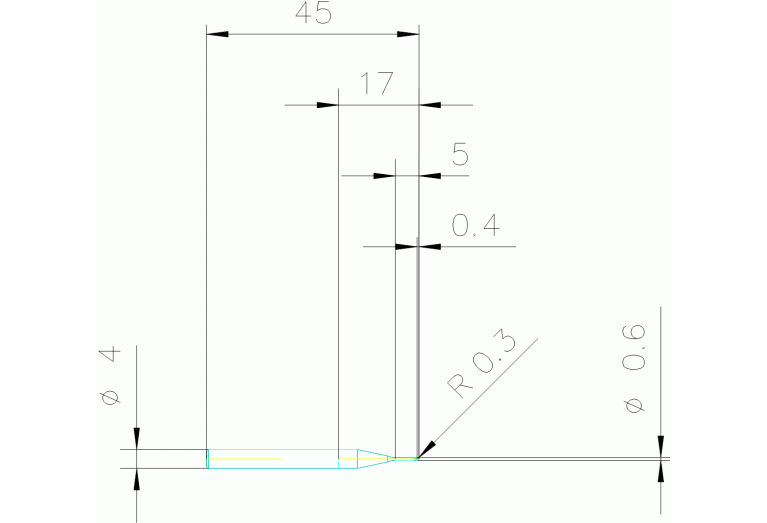

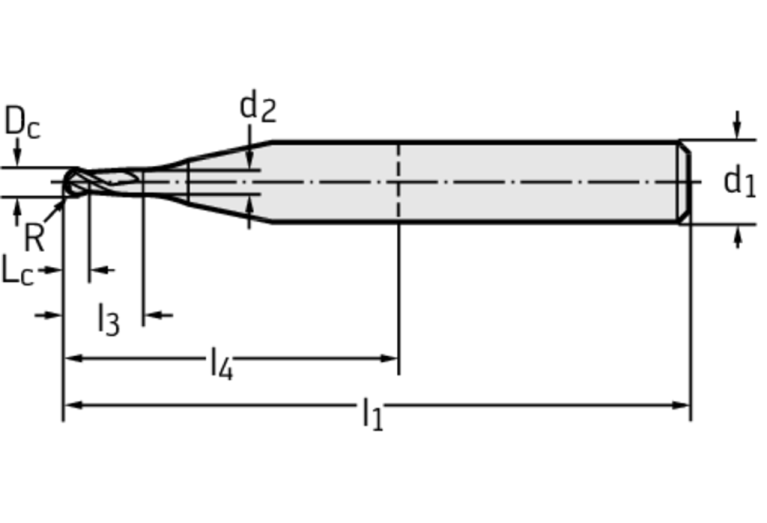

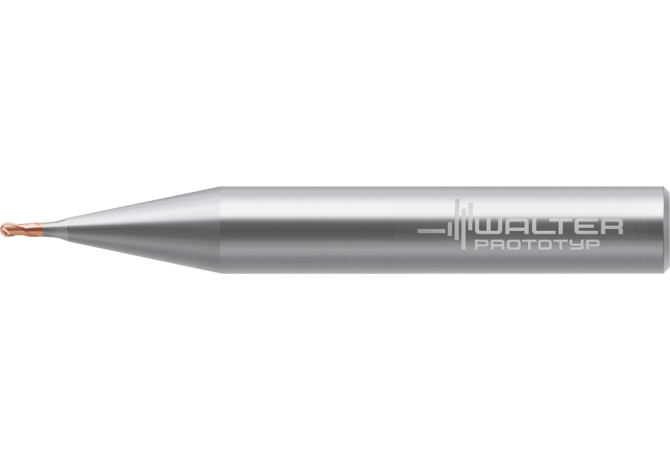

Главная Каталог продукции Toolunited 10 303-06 - Ball-nosed end mill H4046988-0.6-5

H4046988-0.6-5

Артикул: 6016678

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

0.4 mm

BMC Body material code

H - Solid carbide

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating / Покрытие

Unbeschichtet

COMPC Company code

W - Walter

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

0.6 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2023

DIN

ZYL00400105

DN Neck diameter

0.57 mm

FamilyProducts

Solid carbide mini ball-nose copy milling cutters H4046988

FHA Flute helix angle

30 Degree

FHH Flute helix hand

R - Hand of helix right

GAMF Rake angle radial

-6 Degree

GAMP Rake angle axial

1.5 Degree

GRDMFG Grade manufacturers designation

TAS

HAND Cutting direction

R - Right

ID Technical product number

6016678

Interface codes

J6 / J61

ISO

ZYL01F4000h$04

ISYC Subclass

303-06 - Ball-nosed end mill

LF Functional length

45 mm

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

ZYL cylindrical shank

LOC-03 CCUMS Unit base

0 Metric

LOC-03 CZCMS Size code

0040

LOC-03 DCONMS Diameter

4 mm

LOC-03 TCDCONCDMS Tolerance class coded

h$04

LOC-03 ISO

ZYL01F4000h$04

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00400105

LPR Protruding length

17 mm

LS Shank length

28 mm

Name Identifying order number

H4046988-0.6-5

OAL Overall length

45 mm

PRFRAD Profile radius 1

0.3 mm

RMPX Ramping angle maximum

3 Degree

RPMX Rotational speed maximum

509091 1/min

STDLET Standard letter to the standard number

STDNO Standard

P-NORM MINI

TCDCONMS ISO-tolerance class shank diameter

Working process

FEC - Square shoulder milling,FFO - Die milling,FSE - Counter-sinking

WT Weight of item

0.012 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
