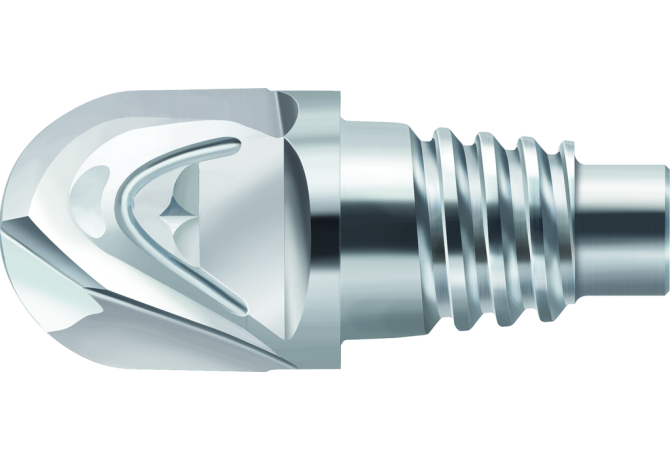

Главная Каталог продукции Toolunited 10 303-06 - Ball-nosed end mill H1E0111-E12-12

H1E0111-E12-12

Артикул: 6068730

В наличии

В корзину

Описание

Характеристики

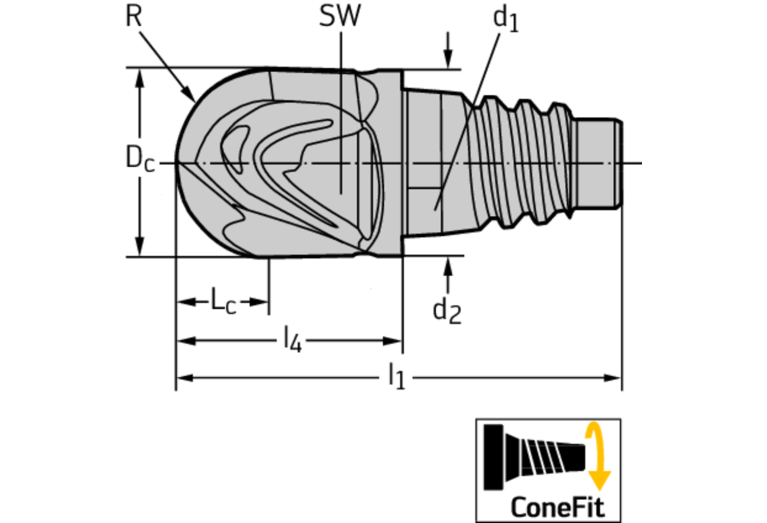

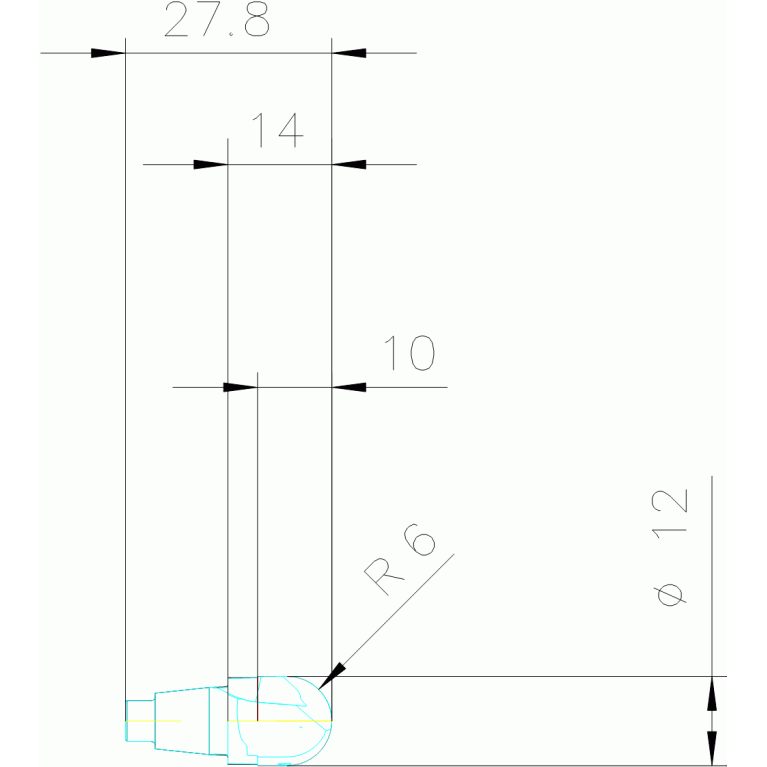

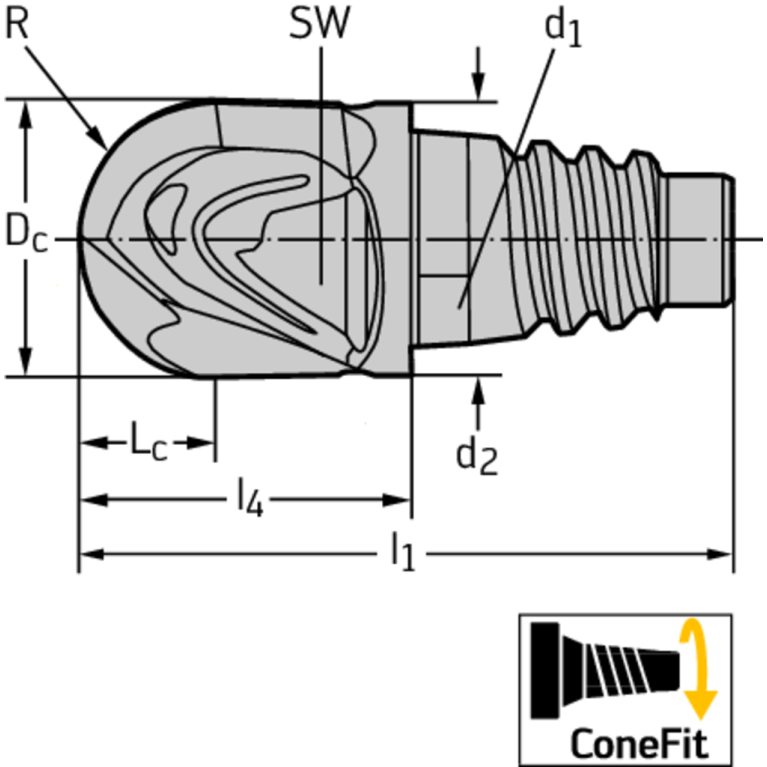

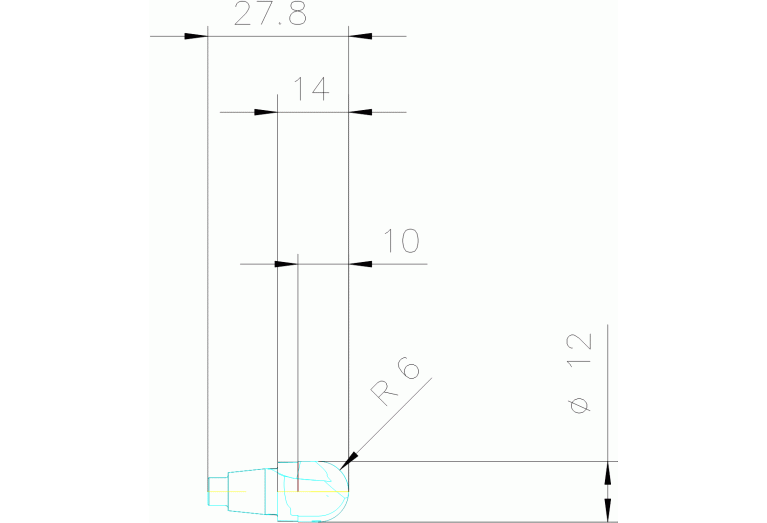

APMX Depth of cut maximum

10 mm

BMC Body material code

H - Solid carbide

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

W - Walter

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

12 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2023

DIN

SAC01200485

DN Neck diameter

11.7 mm

FamilyProducts

Solid carbide ball-nose copy milling cutters H1E0111

FHA Flute helix angle

10 Degree

FHH Flute helix hand

R - Hand of helix right

GAMF Rake angle radial

10.5 Degree

GAMP Rake angle axial

1 Degree

GRDMFG Grade manufacturers designation

UNBESCHICH

HAND Cutting direction

R - Right

ID Technical product number

6068730

Interface codes

J6 / J61

ISO

SAC04A0120$$$$

ISYC Subclass

303-06 - Ball-nosed end mill

LF Functional length

14 mm

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

SAC Screw mounting SANDVIK Coromant

LOC-03 CCUMS Unit base

8 non-dimensional size

LOC-03 CZCMS Size code

0120

LOC-03 DCONMS Diameter

11.7 mm

LOC-03 ISO

SAC04A0120$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SAC01200485

LPR Protruding length

14 mm

Name Identifying order number

H1E0111-E12-12

OAL Overall length

27.8 mm

PRFRAD Profile radius 1

6 mm

RMPX Ramping angle maximum

15 Degree

RPMX Rotational speed maximum

999999 1/min

STDNO Standard

PWZ

Working process

FEC - Square shoulder milling,FFO - Die milling,FSE - Counter-sinking

WT Weight of item

0.033 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
