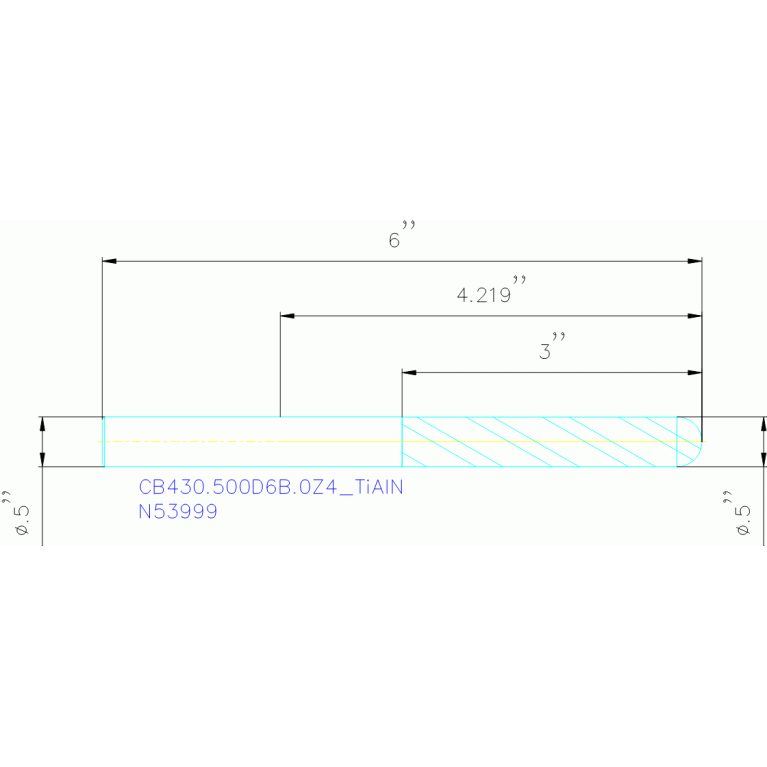

CB430.500D6B.0Z4 TIALN

CB430.500D6B.0Z4 TIALN CB430.500D6B.0Z4 TIALN CB430.500D6B.0Z4 TIALN CB430.500D6B.0Z4 TIALN

CB430.500D6B.0Z4 TIALN

SECO Tools
Артикул: 17001097
В наличии
В корзину
Описание
Характеристики
APMX Depth of cut maximum
76.2 mm
CNSC Coolant entry style code
0 - Without coolant entry
COATN Coating
TiAlN
COMPC Company code
SO - SECO Tools
CXSC Coolant exit style code
0 - Without coolant exit
DC Cutting diameter
12.7 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
ZYL05000125
FamilyProducts
CB430.500D6B.0Z4 TIALN
FHA Flute helix angle
30 Degree
FHH Flute helix hand
R - Hand of helix right
GAMF Rake angle radial
30 Degree
GAMP Rake angle axial
10 Degree
GRDMFG Grade manufacturers designation
TIALN
HAND Cutting direction
R - Right
ID Technical product number
17001097
Interface codes
J6 /
ISYC Subclass
303-06 - Ball-nosed end mill
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
2 Inch
LOC-03 CZCMS Connection size code
0500
LOC-03 DCONMS Diameter
12.7 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL05000125
LS Shank length
45.24 mm
Name Identifying order number
CB430.500D6B.0Z4 TIALN
NameAnsi Identifying order number inch alternative
CB430-0.500-D6-B.0-Z4
OAL Overall length
152.4 mm
PRFRAD Profile radius 1
6.35 mm
Working process
No working processes available
WT Weight of item
0.236 kg
ZEFF Face effective cutting edge count
4
ZEFP Peripheral effective cutting edge count
4
