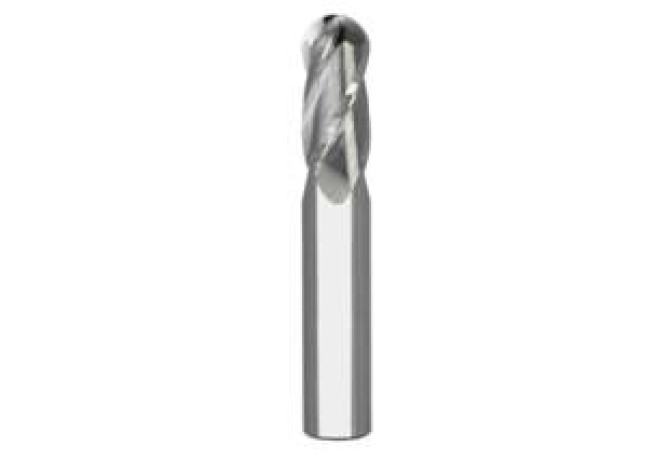

Главная Каталог продукции Toolunited 10 303-06 - Ball-nosed end mill CB430.406F2B.0Z4

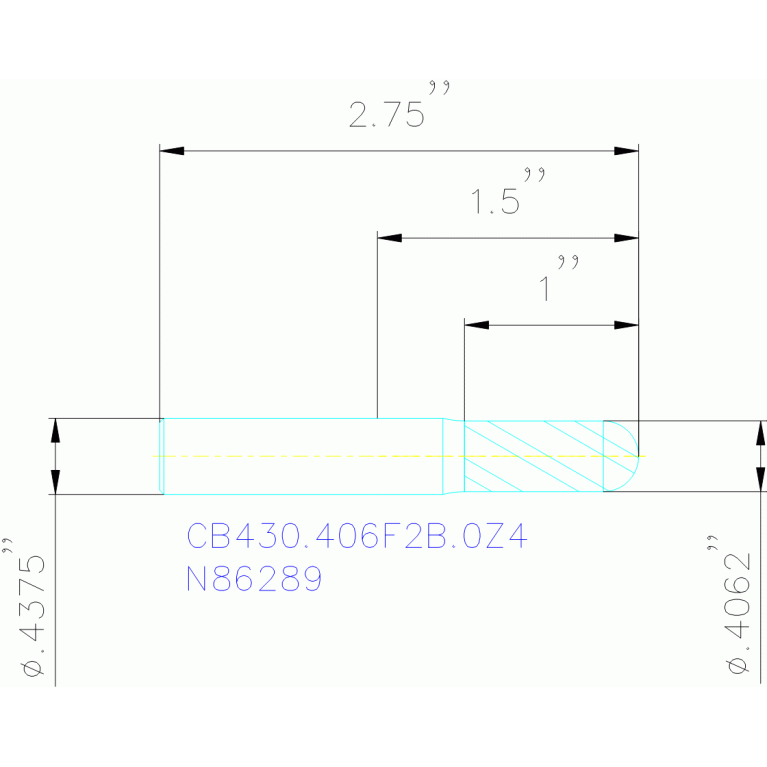

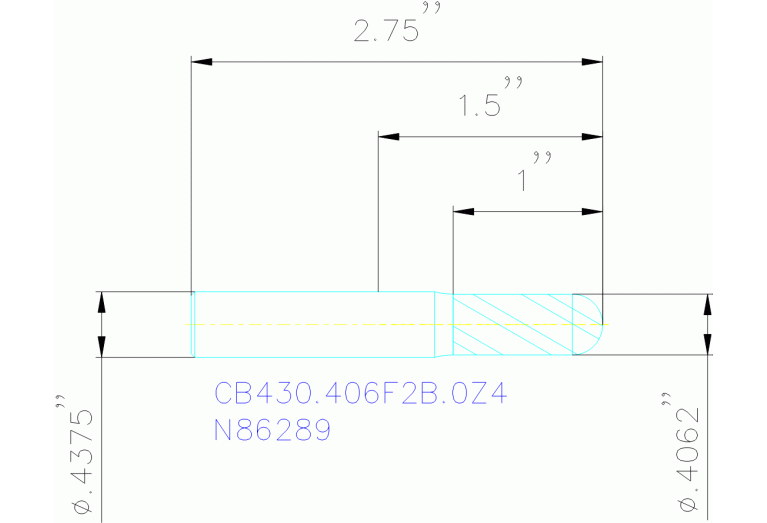

CB430.406F2B.0Z4

CB430.406F2B.0Z4 CB430.406F2B.0Z4 CB430.406F2B.0Z4 CB430.406F2B.0Z4

CB430.406F2B.0Z4

Seco
Артикул: 17006071
В наличии
В корзину
Описание
Характеристики

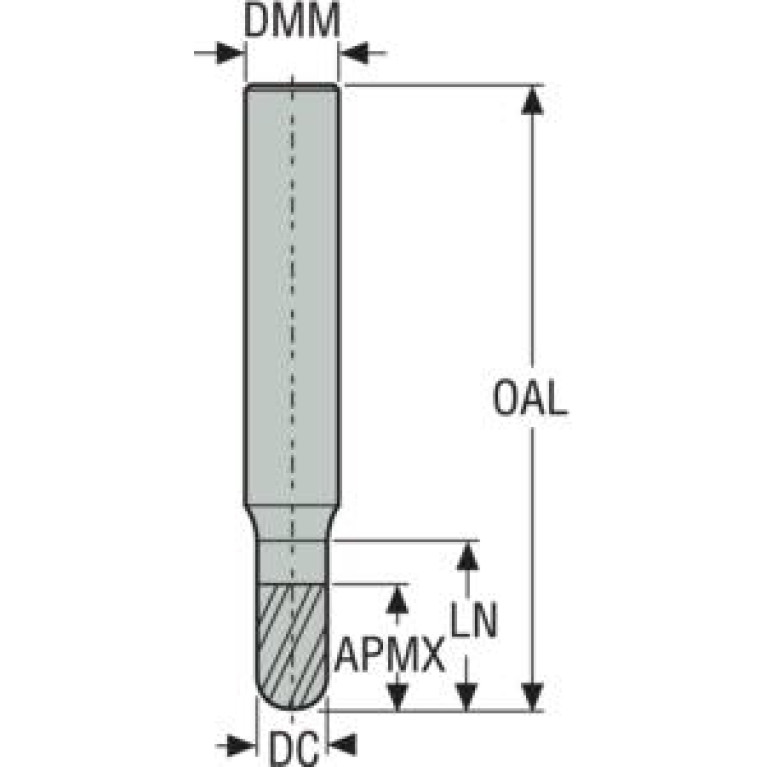

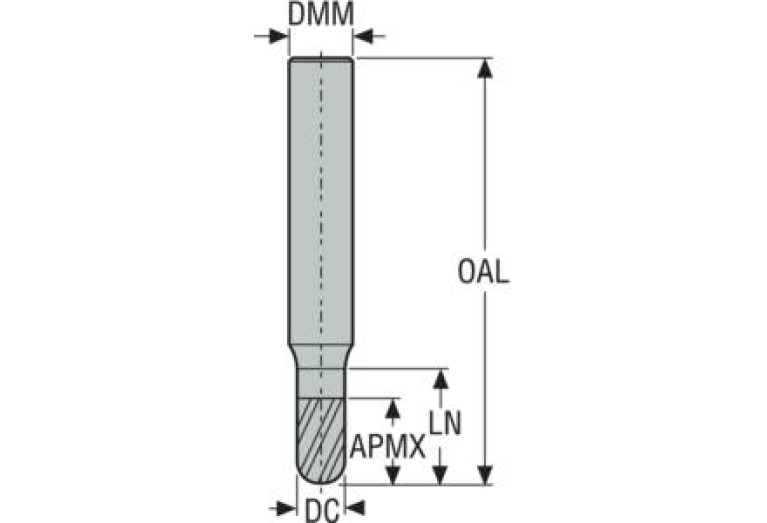

APMX Depth of cut maximum
25.4 mm
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
SO - SECO Tools
CXSC Coolant exit style code
0 - Without coolant exit
DC Cutting diameter
10.32 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
3/14/2020
DIN
ZYL04370125
DN Neck diameter
10.319 mm
FamilyProducts
CB430.406F2B.0Z4
FHA Flute helix angle
30 Degree
FHH Flute helix hand
R - Hand of helix right
GAMF Rake angle radial
30 Degree
GAMP Rake angle axial
10 Degree
HAND Cutting direction
R - Right
ID Technical product number
17006071
Interface codes
J6 / J61
ISO
ZYL01R4375h$05
ISYC Subclass
303-06 - Ball-nosed end mill
LN Neck length
25.4 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
2 Inch
LOC-03 CZCMS Connection size code
0437
LOC-03 DCONMS Diameter
11.112 mm
LOC-03 ISO
ZYL01R4375h$05
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL04370125
LS Shank length
45 mm
Name Identifying order number
CB430.406F2B.0Z4
NameAnsi Identifying order number inch alternative
CB430-0.406-F2-B.0-Z4
OAL Overall length
69.85 mm
PRFRAD Profile radius 1
5.16 mm
Working process
No working processes available
WT Weight of item
0.082 kg
ZEFP Peripheral effective cutting edge count
4
