Главная Каталог продукции Toolunited 10 303-06 - Ball-nosed end mill 3194906

3194906

Артикул: 3194906

В наличии

В корзину

Описание

Характеристики

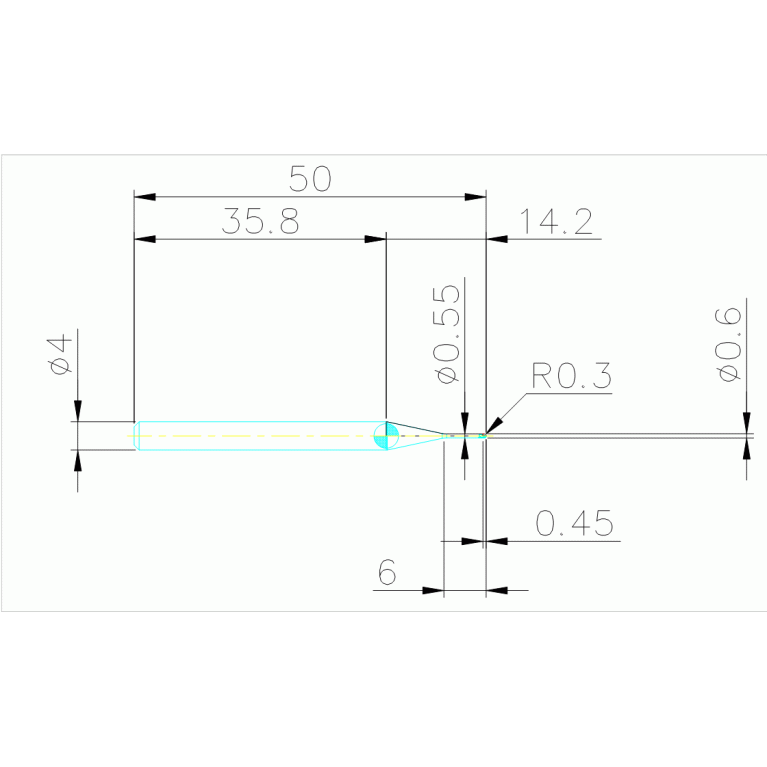

APMX Depth of cut maximum

0.45 mm

BMC Body material code

H - Solid carbide

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating

Multi-SiC layer

COMPC Company code

OSG

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

0.6 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

2/1/2025

DIN

ZYL00400105

DN Neck diameter

0.55 mm

FamilyProducts

List9590 PHX-LN-DBT R0.3X6

FHA Flute helix angle

45 Degree

FHH Flute helix hand

R - Hand of helix right

GAMF Rake angle radial

-10 Degree

GAMP Rake angle axial

-5 Degree

GRDPRIO Standard designation of the grade main application

HAND Cutting direction

R - Right

Interface codes

J6 / J61

ISYC Subclass

303-06 - Ball-nosed end mill

LN Neck length

5.614 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0040

LOC-03 DCONMS Diameter

4 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00400105

LPR Protruding length

14.2 mm

LS Shank length

35.8 mm

LU Usable length

6 mm

Materials

P,M,K,N,S,H

MILTTY Mill tool type ISO

L - Face and side end mill with ball nose (more then one indexable insert pro cutting edge) 90°

Name Identifying order number

3194906

OAL Overall length

50 mm

PRFRAD Profile radius 1

0.3 mm

SN B101 Length of the non-cutting cylindrical neck section

5.164 mm

SN B102 Length to the transition radius beginning

5.614 mm

SN E101 1. neck angle

0 Degree

SN E102 Starting angle Neck radius

0 Degree

SN E103 2. neck angle

12 Degree

SN G102 Transition radius

3 mm

TCDCONMS ISO-tolerance class shank diameter

Working process

FFO - Die milling

WT Weight of item

0.013 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count

ZNC Cutting edge centre count
