Главная Каталог продукции Toolunited 10 303-06 - Ball-nosed end mill 2808.0250

2808.0250

Артикул: 2808.0250

В наличии

В корзину

Описание

Характеристики

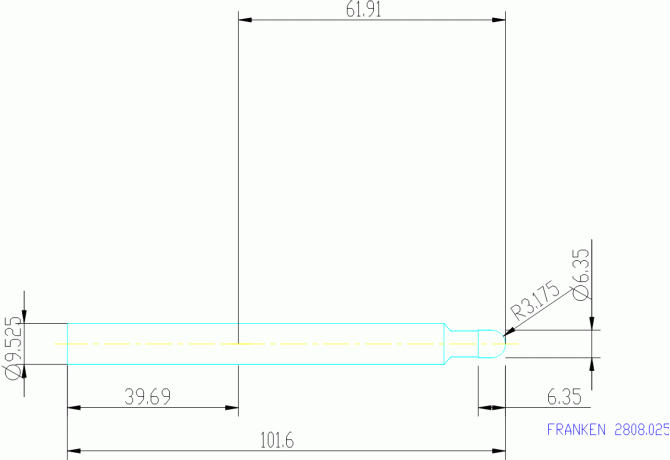

APMX Depth of cut maximum

6.35 mm

BMC Body material code

D - Solid steel with soldered hard-alloy inserts (BN or DP)

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating / Покрытие

ohne

COMPC Company code

E - Emuge

CRCLDIN Tool application class

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

6.35 mm

DCONMSLD Shank diameter lower limit

-0.009 mm

DCONMSUD Shank diameter upper limit

0 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

10/1/2022

DIN

ZYL95250125

DN Neck diameter

6.02 mm

FamilyProducts

Ball Nose End Mill

FHA Flute helix angle

0 Degree

FHH Flute helix hand

N - Hand of helix neutral

GRDMFG Grade manufacturers designation

CBN

GRDPRIO Standard designation of the grade main application

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

303-06 - Ball-nosed end mill

LF Functional length

101.6 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

2 Inch

LOC-03 CZCMS Connection size code

9525

LOC-03 DCONMS Diameter

9.525 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL95250125

LPR Protruding length

61.91 mm

LS Shank length

39.7 mm

MILTTY Mill tool type ISO

L - Face and side end mill with ball nose (more then one indexable insert pro cutting edge) 90°

Name Identifying order number

2808.0250

OAL Overall length

101.6 mm

PRFRAD Profile radius 1

3.175 mm

TCDCONMS ISO-tolerance class shank diameter

Working process

No working processes available

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
