Главная Каталог продукции Toolunited 10 303-05 - T-slot end mill 3018.01053

3018.01053

Артикул: 3018.01053

В наличии

В корзину

Описание

Характеристики

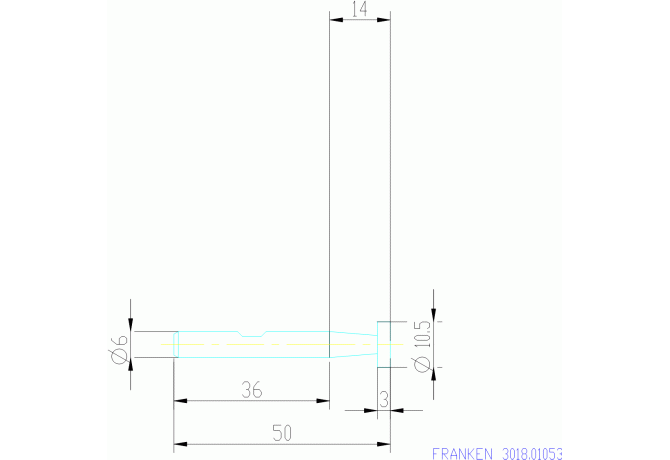

APMX Depth of cut maximum

3 mm

BMC Body material code

S - Solid steel

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating

ohne

COMPC Company code

E - Emuge

CRCLDIN Chip removal class

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

10.5 mm

DCONMSLD Shank diameter lower limit

-0.008 mm

DCONMSUD Shank diameter upper limit

0 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

10/1/2022

DIN

ZYL00601005

DN Neck diameter

4.2 mm

FamilyProducts

Woodruff Keyseat End Mill

GRDMFG Grade manufacturers designation

HSS

GRDPRIO Standard designation of the grade main application

HSSE

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

303-05 - T-slot end mill

LF Functional length

32 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0060

LOC-03 DCONMS Diameter

6 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00601005

LPR Protruding length

14 mm

LS Shank length

36 mm

MILTTY Mill tool type ISO

D - Slot or separating cutter

Name Identifying order number

3018.01053

OAL Overall length

50 mm

STDNO Standard

DIN 850

TCDCONMS ISO-tolerance class shank diameter

Working process

No working processes available

ZEFP Peripheral effective cutting edge count
