Главная Каталог продукции Toolunited 10 303-04 - Angular end mill (V-groove) MM GRIT 28K-75D-6T10 IC528

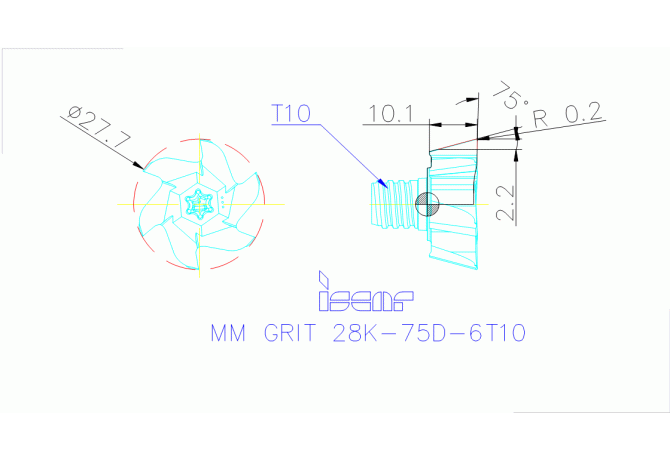

MM GRIT 28K-75D-6T10 IC528

Артикул: 6410562

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

10.1 mm

BMC Body material code

H - Solid carbide

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating

TiCN+TiN

COMPC Company code

IS - Iscar

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

27.7 mm

DCP Data chip provision

0 - Without data chip

DIN

SAI01000185

F71 Number of corner designs

FamilyProducts

Interchangeable Solid Carbide Back Chamfering Heads

FHH Flute helix hand

R - Hand of helix right

GRDMFG Grade manufacturers designation

IC528

HAND Cutting direction

R - Right

ID Technical product number

6410562

Interface codes

J6 / J61

ISO

SAI01C0100$$$$

ISYC Subclass

303-04 - Angular end mill (V-groove)

KAPR Tool cutting edge angle

105 Degree

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

SAI Screw mounting ISCAR

LOC-03 CCUMS Connection code unit base

8 non-dimensional size

LOC-03 CZCMS Connection size code

0100

LOC-03 ISO

SAI01C0100$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SAI01000185

Name Identifying order number

MM GRIT 28K-75D-6T10 IC528

RE Corner radius

0.2 mm

THSZMS Connection thread nominal size machine side

T10

Working process

No working processes available

WT Weight of item

0.06 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
