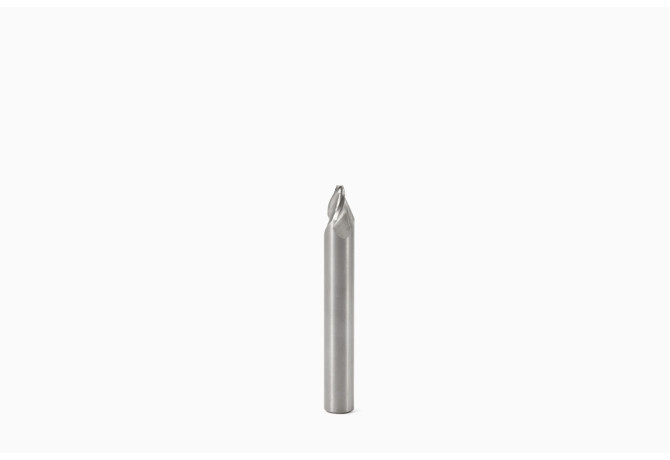

HK200-045
HK200-045
Артикул:
00029166
В наличии
Характеристики

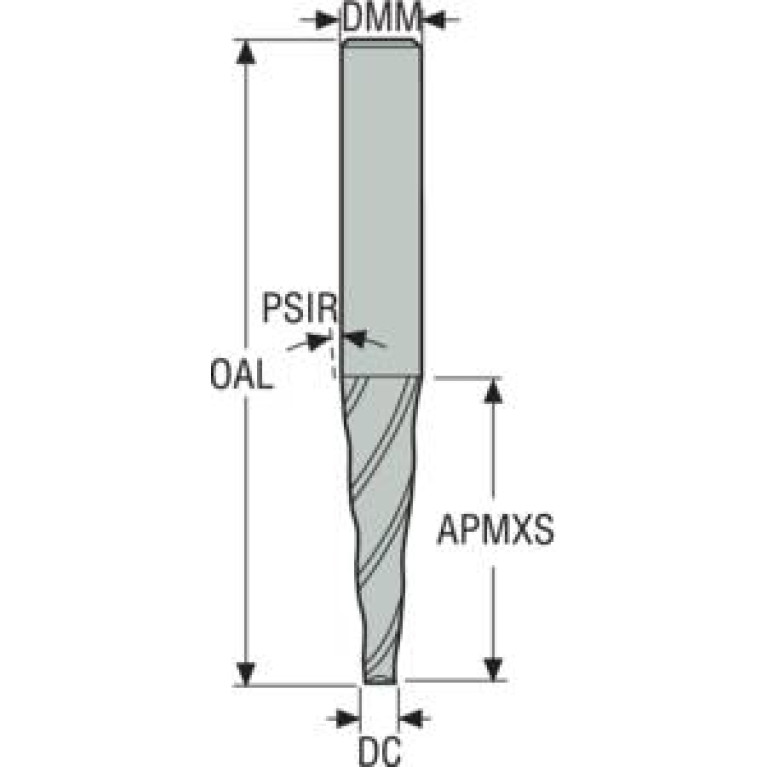

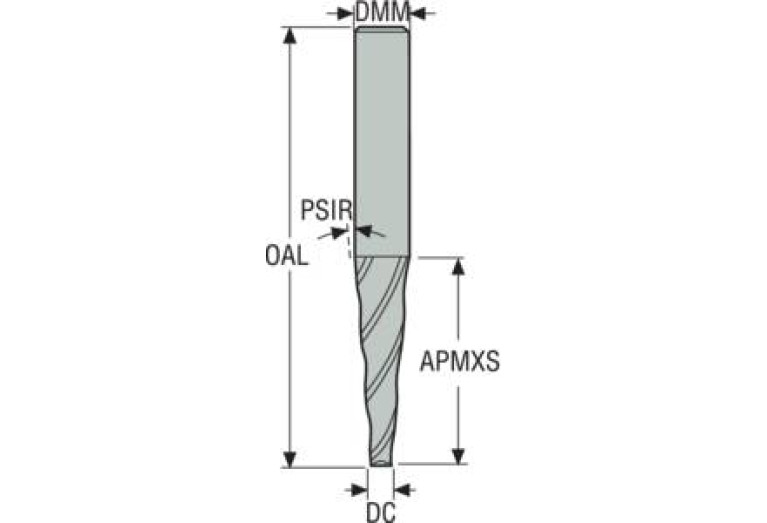

APMX Depth of cut maximum
15 mm
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
SO - SECO Tools
CXSC Coolant exit style code
0 - Without coolant exit
DC Cutting diameter
4.5 mm
DCP Data chip provision
0 - Without data chip
DCX Cutting diameter maximum
16 mm
Delivery state valid from
12/1/2023
DIN
ZYL01600105
F71 Number of corner designs
1
FamilyProducts
HK200-045
FHA Flute helix angle
30 Degree
FHH Flute helix hand
R - Hand of helix right
GAMF Rake angle radial
30 Degree
GAMP Rake angle axial
10 Degree
HAND Cutting direction
R - Right
ID Technical product number
00029166
Interface codes
J6 /
ISYC Subclass
303-03 - Angular end mill (V-groove)
KAPR Tool cutting edge angle
70 Degree
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0160
LOC-03 DCONMS Diameter
16 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL01600105
LS Shank length
48 mm
Name Identifying order number
HK200-045

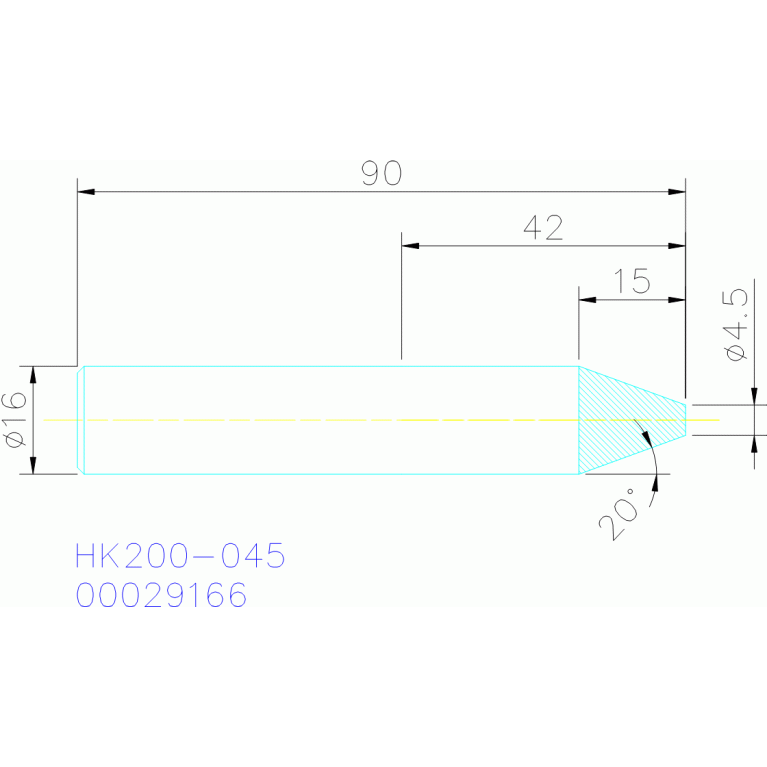

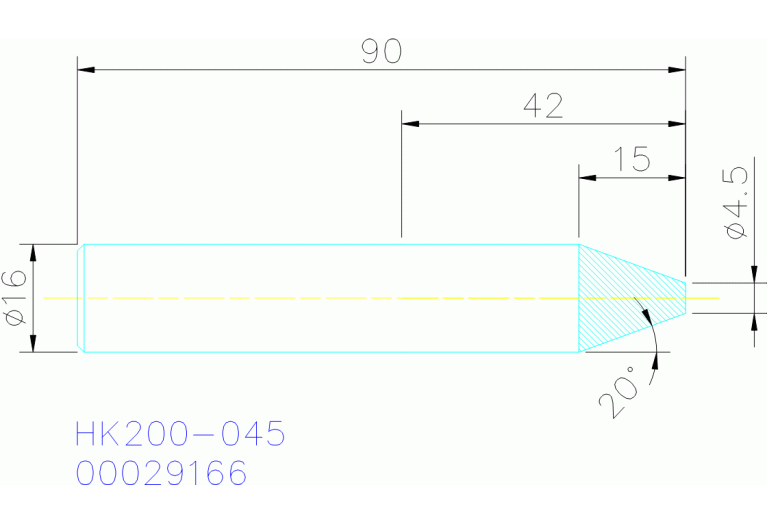

OAL Overall length
90 mm
RMPX Ramping angle maximum
0 Degree
Working process
No working processes available
WT Weight of item
0.227 kg
ZEFP Peripheral effective cutting edge count
4
