208105 8
208105 8
Артикул:
208105 8
В наличии
Характеристики
APMX Depth of cut maximum
4 mm
BMC Body material code
H - Solid carbide
CNSC Coolant entry style code
0 - Without coolant entry
COATN Coating
TIALN
COMPC Company code
HOG - Hoffmann Group
CXSC Coolant exit style code
0 - Without coolant exit
DC Cutting diameter
8 mm
DCP Data chip provision
0 - Without data chip
DIN
ZYL00800105
F71 Number of corner designs
1

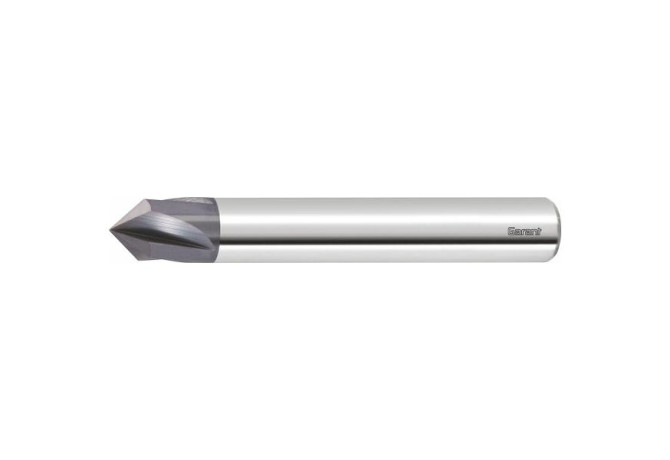

FamilyProducts
Solid carbide deburrer
FHA Flute helix angle
0 Degree
FHH Flute helix hand
N - Hand of helix neutral
GAMF Rake angle radial
8 Degree
GAMP Rake angle axial
0 Degree
GRDMFG Grade manufacturers designation
VHM
HAND Cutting direction
R - Right
Interface codes
J6 /
ISYC Subclass
303-03 - Angular end mill (V-groove)
KAPR Tool cutting edge angle
45 Degree
LH Head length
13 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0080
LOC-03 DCONMS Diameter
8 mm
LOC-03 TCDCONCDMS Connection tolerance class coded
h$06
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL00800105
LPR Protruding length
27 mm
LS Shank length
36 mm
Name Identifying order number
208105 8

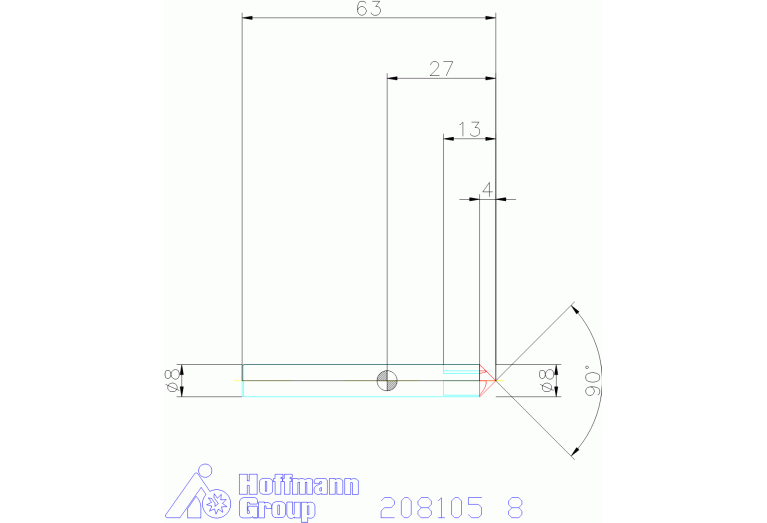

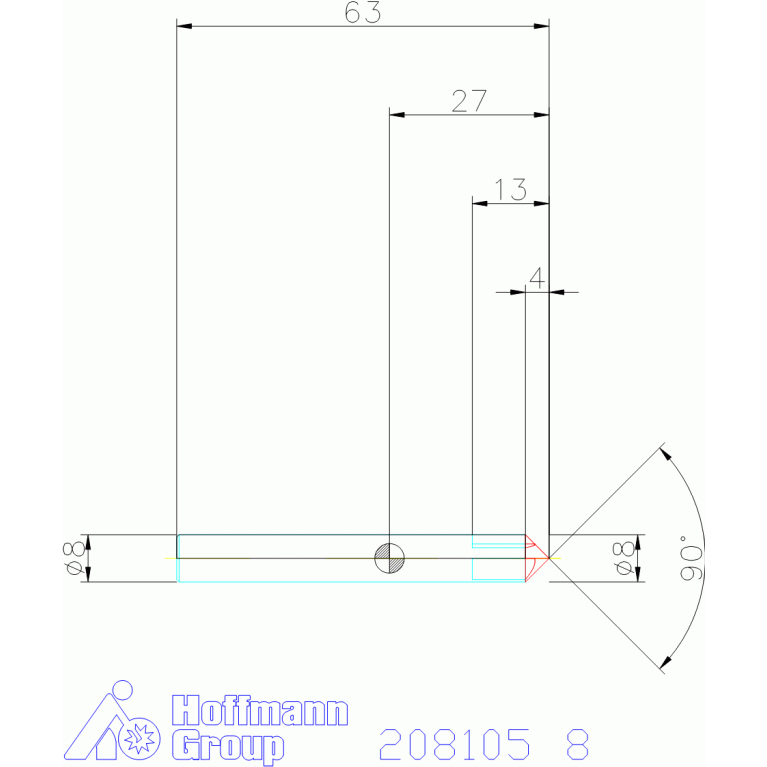

OAL Overall length
63 mm
TCDCONMS ISO-tolerance class shank diameter
h6
Working process
FFO - Die milling
WT Weight of item
0.04 kg
ZEFF Face effective cutting edge count
4
ZEFP Peripheral effective cutting edge count
4
