208065 20
208065 20
Артикул:
208065 20
В наличии
Характеристики

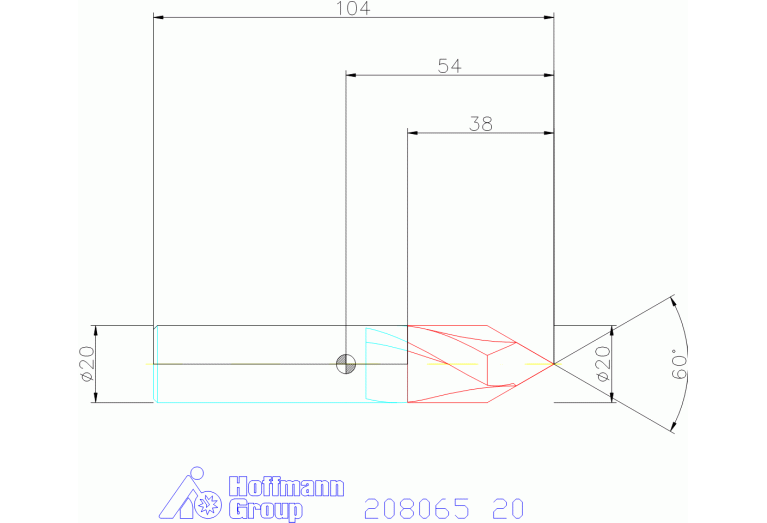

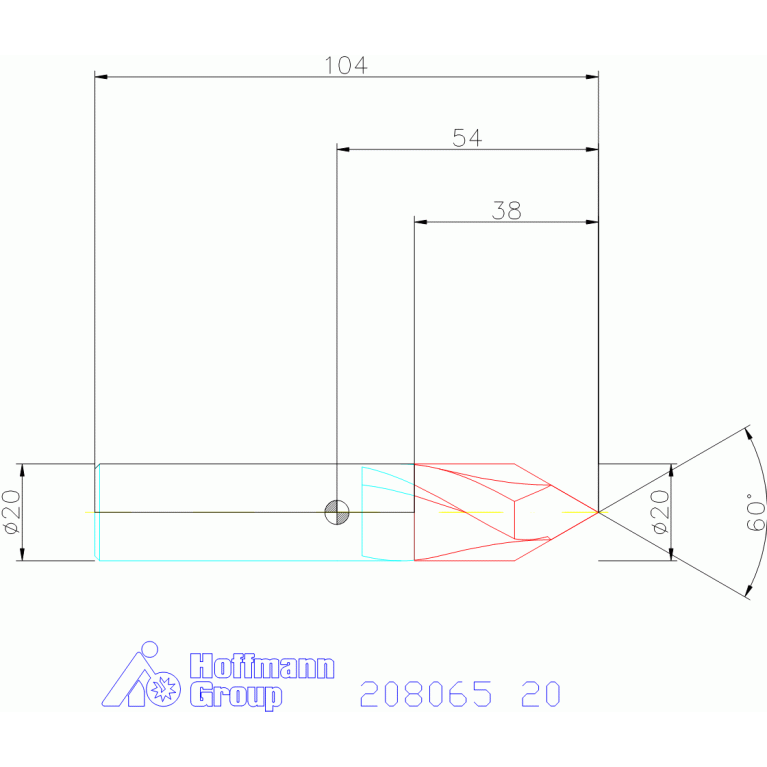

APMX Depth of cut maximum
38 mm
BMC Body material code
H - Solid carbide
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
HOG - Hoffmann Group
CXSC Coolant exit style code
0 - Without coolant exit
DC Cutting diameter
20 mm
DCP Data chip provision
0 - Without data chip
DIN
ZYL02000105
F71 Number of corner designs
1
FamilyProducts

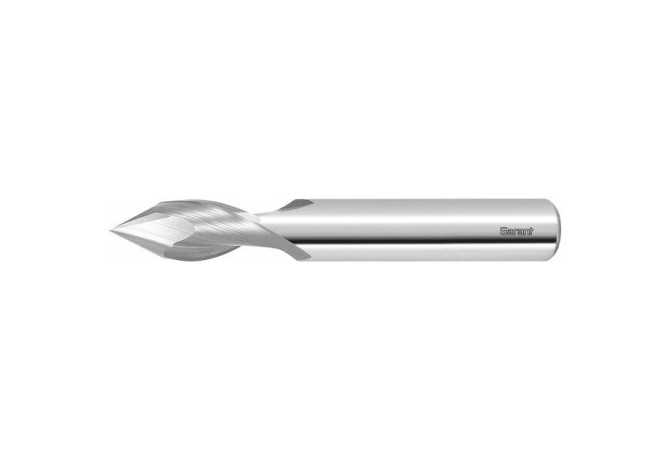

Solid carbide chamfer mill 60°
FHA Flute helix angle
30 Degree
FHH Flute helix hand
R - Hand of helix right
GRDMFG Grade manufacturers designation
VHM
HAND Cutting direction
R - Right
Interface codes
J6 /
ISYC Subclass
303-03 - Angular end mill (V-groove)
KAPR Tool cutting edge angle
60 Degree
LH Head length
38 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0200
LOC-03 DCONMS Diameter
20 mm
LOC-03 TCDCONCDMS Connection tolerance class coded
h$06
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL02000105
LPR Protruding length
54 mm
LS Shank length
50 mm
Name Identifying order number
208065 20
OAL Overall length
104 mm
TCDCONMS ISO-tolerance class shank diameter
h6
Working process
FFO - Die milling
WT Weight of item
0.359 kg
ZEFF Face effective cutting edge count
2
ZEFP Peripheral effective cutting edge count
2
ZNC Cutting edge centre count
1
