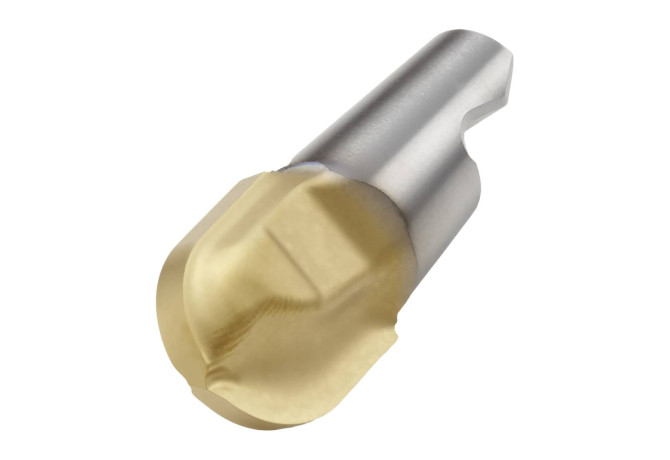

Главная Каталог продукции Toolunited 10 303-02 - Centre cutting end mill MM06-06006-B90-MD02 F30M

MM06-06006-B90-MD02 F30M

MM06-06006-B90-MD02 F30M MM06-06006-B90-MD02 F30M MM06-06006-B90-MD02 F30M MM06-06006-B90-MD02 F30M

MM06-06006-B90-MD02 F30M

Seco
Артикул: 74080708
В наличии
В корзину
Описание
Характеристики

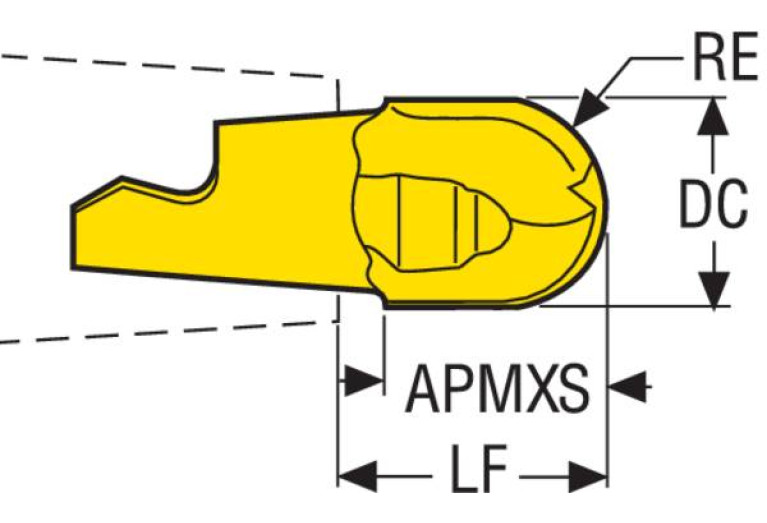

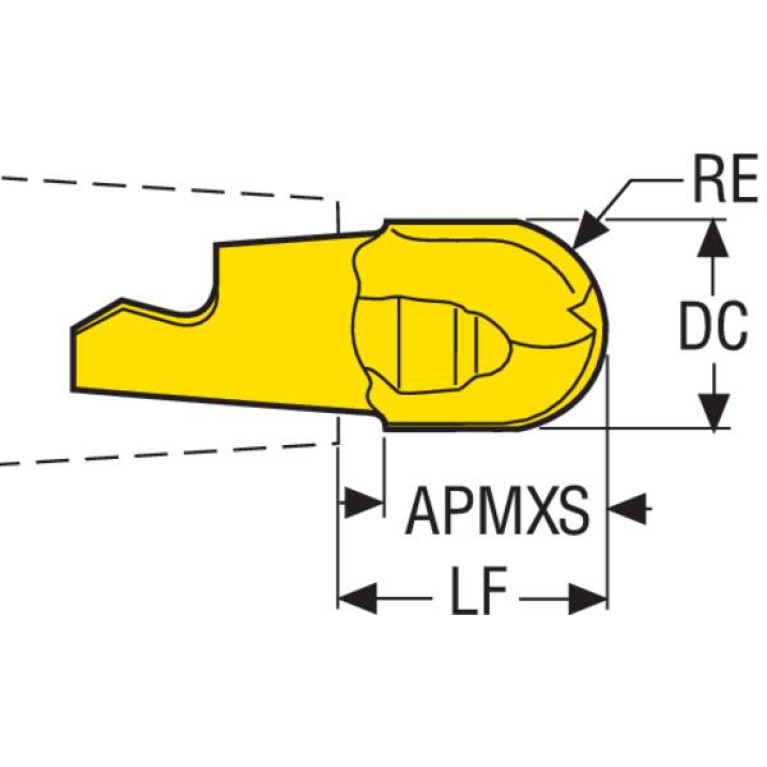

APMX Depth of cut maximum
6.1 mm
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
SO - SECO Tools
CXSC Coolant exit style code
0 - Without coolant exit
DC Cutting diameter
6 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
SMM00600105
F71 Number of corner designs
1
FamilyProducts
MM06-06006-B90-MD02 F30M
FHA Flute helix angle
0 Degree
FHH Flute helix hand
N - Hand of helix neutral
GAMF Rake angle radial
0 Degree
GAMP Rake angle axial
0 Degree
GRDMFG Grade manufacturers designation
F30M
ID Technical product number
74080708
Interface codes
J6 /
ISYC Subclass
303-02 - Centre cutting end mill
LF Functional length
7.06 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
SMM
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0060
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SMM00600105
Name Identifying order number
MM06-06006-B90-MD02 F30M
NameAnsi Identifying order number inch alternative
MM06-0.236-B90-MD02
RMPX Ramping angle maximum
15 Degree
Working process
No working processes available
WT Weight of item
0.003 kg
ZEFF Face effective cutting edge count
1
ZEFP Peripheral effective cutting edge count
1
