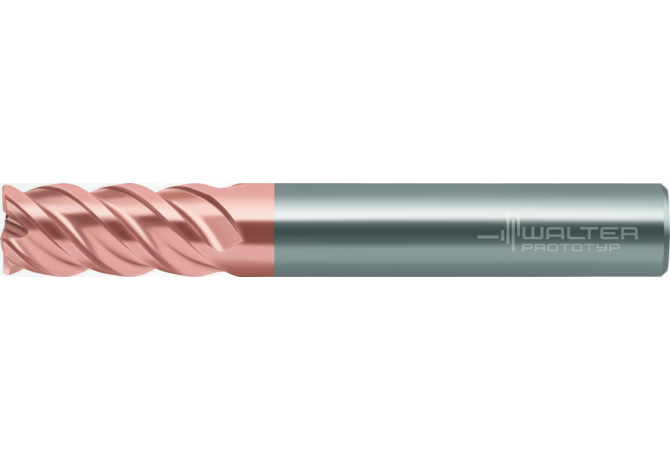

Главная Каталог продукции Toolunited 10 303-02 - Centre cutting end mill MC388-08.0A4L050-WB10TG

MC388-08.0A4L050-WB10TG

Артикул: 7254999

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

19 mm

BMC Body material code

H - Solid carbide

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating / Покрытие

TiAlSiN

COMPC Company code

W - Walter

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

8 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2023

DIN

ZYL00800105

F71 Number of corner designs

FamilyProducts

Solid carbide shoulder/slot milling cutter MC388

FHA Flute helix angle

50 Degree

FHH Flute helix hand

R - Hand of helix right

GAMF Rake angle radial

-18 Degree

GAMP Rake angle axial

1.5 Degree

GRDMFG Grade manufacturers designation

WB10TG

HAND Cutting direction

R - Right

ID Technical product number

7254999

Interface codes

J6 / J61

ISO

ZYL01F8000h$06

ISYC Subclass

303-02 - Centre cutting end mill

LF Functional length

80 mm

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

ZYL cylindrical shank

LOC-03 CCUMS Unit base

0 Metric

LOC-03 CZCMS Size code

0080

LOC-03 DCONMS Diameter

8 mm

LOC-03 TCDCONCDMS Tolerance class coded

h$06

LOC-03 ISO

ZYL01F8000h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00800105

LPR Protruding length

44 mm

LS Shank length

36 mm

Materials

P,H

Name Identifying order number

MC388-08.0A4L050-WB10TG

OAL Overall length

80 mm

RE Corner radius

0.5 mm

RMPX Ramping angle maximum

6 Degree

RPMX Rotational speed maximum

80000 1/min

STDLET Standard letter to the standard number

STDNO Standard

PWZ-NORM L

TCDCONMS ISO-tolerance class shank diameter

Working process

FEC - Square shoulder milling,FFO - Die milling,FNU - Groove milling,FPL - Face milling,FSE - Counter-sinking,FZI - Circular milling

WT Weight of item

0.062 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
