Главная Каталог продукции Toolunited 10 303-02 - Centre cutting end mill MC320.15.9W4DC-WK40TF

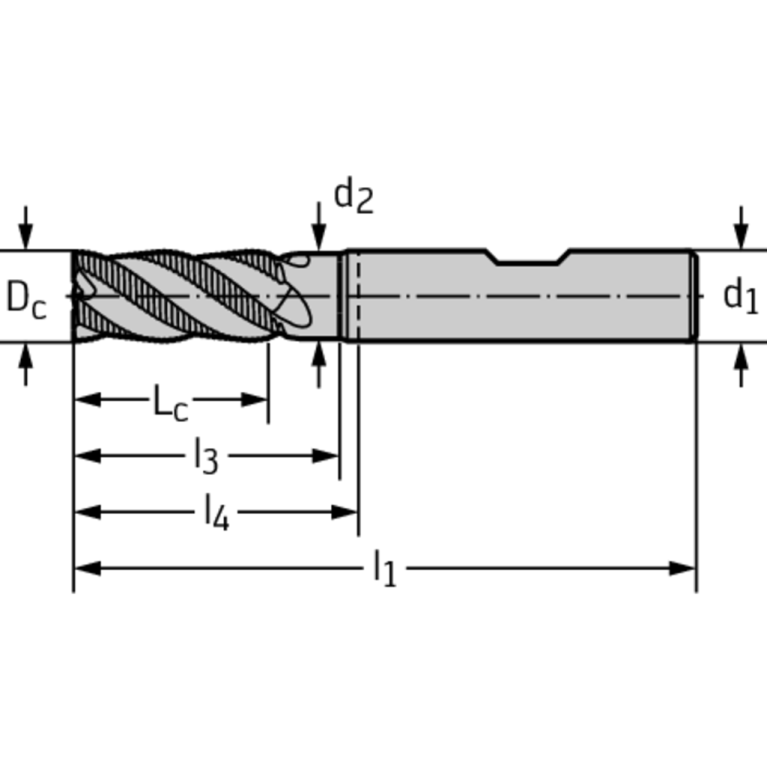

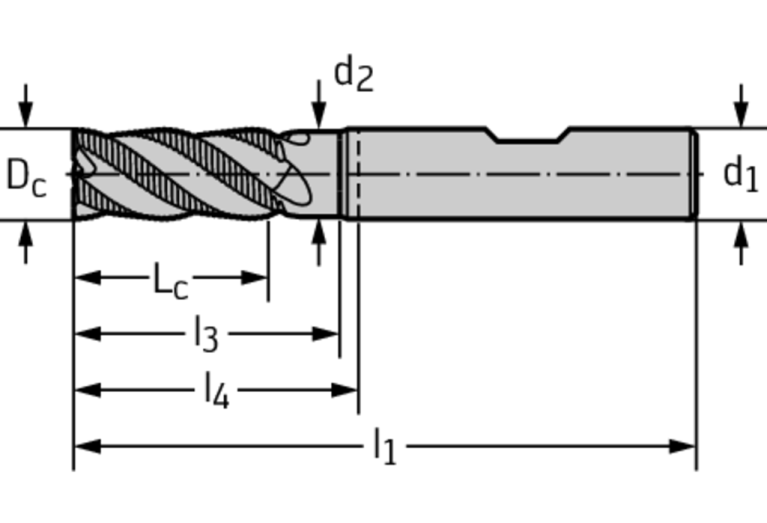

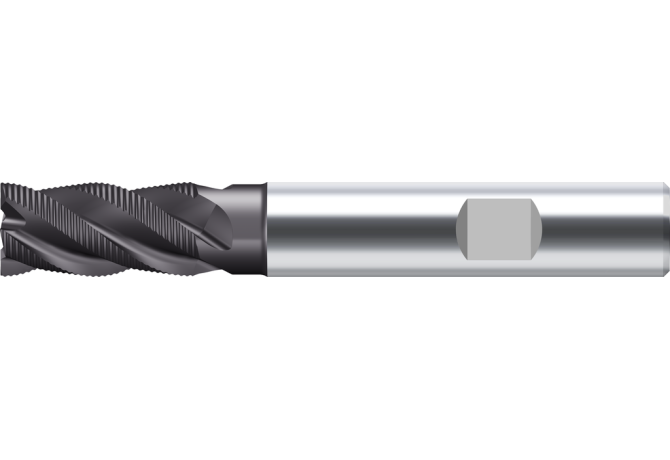

MC320.15.9W4DC-WK40TF

MC320.15.9W4DC-WK40TF MC320.15.9W4DC-WK40TF MC320.15.9W4DC-WK40TF

MC320.15.9W4DC-WK40TF

Walter
Артикул: 7438171
В наличии
В корзину
Описание
Характеристики
APMX Depth of cut maximum
31.75 mm
BMC Body material code
H - Solid carbide
CNSC Coolant entry style code
0 - Without coolant entry
COATN Coating / Покрытие
TiAlN
COMPC Company code
W - Walter
CXSC Coolant exit style code
0 - Without coolant exit
DC Cutting diameter
15.875 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
ZYL06251025
DN Neck diameter
15.08 mm
F71 Number of corner designs
1
FamilyProducts
Solid carbide shoulder/slot milling cutter MC320
FHA Flute helix angle
40 Degree
FHH Flute helix hand
R - Hand of helix right
GAMF Rake angle radial
10.5 Degree
GAMP Rake angle axial
4 Degree
GRDMFG Grade manufacturers designation
WK40TF
HAND Cutting direction
R - Right
ID Technical product number
7438171
Interface codes
J6 / J61
ISO
ZYL10R6250h$06
ISYC Subclass
303-02 - Centre cutting end mill
LF Functional length
64.691 mm
LOC-03 CCFMS Form
10
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
ZYL cylindrical shank
LOC-03 CCUMS Unit base
2 Inch
LOC-03 CZCMS Size code
0625
LOC-03 DCONMS Diameter
15.875 mm
LOC-03 TCDCONCDMS Tolerance class coded
h$06
LOC-03 ISO
ZYL10R6250h$06
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL06251025
LPR Protruding length
40.5 mm
Name Identifying order number
MC320.15.9W4DC-WK40TF
OAL Overall length
88.9 mm
RMPX Ramping angle maximum
6 Degree
RPMX Rotational speed maximum
80000 1/min
STDLET Standard letter to the standard number
WE
STDNO Standard
STANDARD
TCDCONMS ISO-tolerance class shank diameter
h6
Working process
FEC - Square shoulder milling,FNU - Groove milling,FPL - Face milling,FSE - Counter-sinking,FZI - Circular milling
WT Weight of item
0.221 kg
ZEFF Face effective cutting edge count
4
ZEFP Peripheral effective cutting edge count
4
