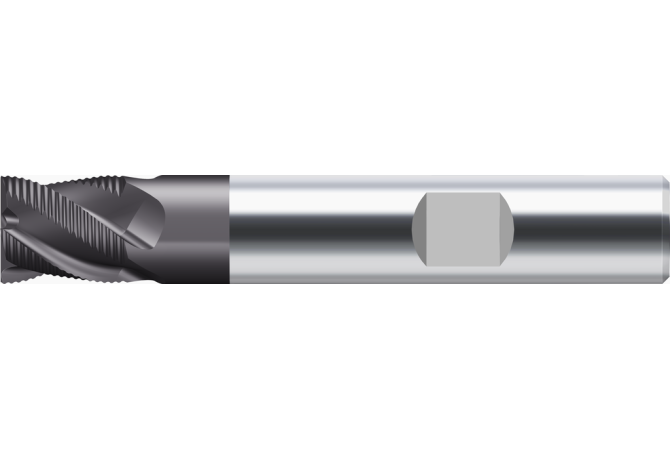

Главная Каталог продукции Toolunited 10 303-02 - Centre cutting end mill MC320-06.0W4A-WK40TF

MC320-06.0W4A-WK40TF

MC320-06.0W4A-WK40TF MC320-06.0W4A-WK40TF MC320-06.0W4A-WK40TF

MC320-06.0W4A-WK40TF

Walter
Артикул: 7438155
В наличии
В корзину
Описание
Характеристики

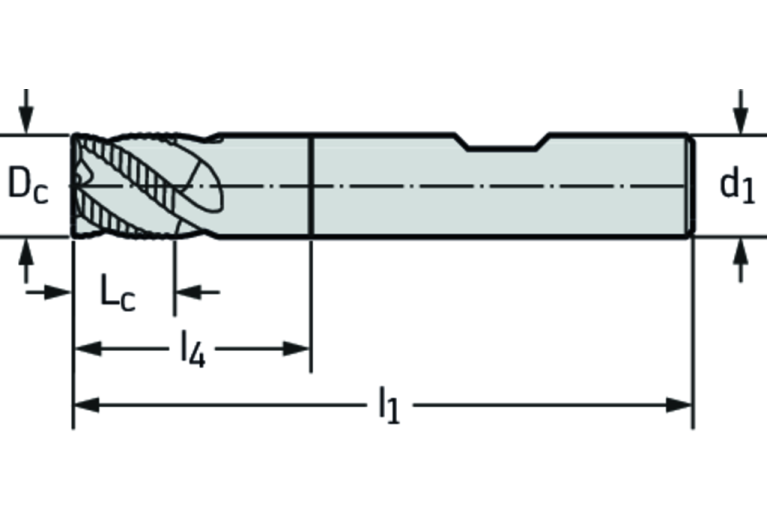

APMX Depth of cut maximum
7 mm
BMC Body material code
H - Solid carbide
CNSC Coolant entry style code
0 - Without coolant entry
COATN Coating / Покрытие
TiAlN
COMPC Company code
W - Walter
CXSC Coolant exit style code
0 - Without coolant exit
DC Cutting diameter
6 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
ZYL00601005
F71 Number of corner designs
1
FamilyProducts
Solid carbide shoulder/slot milling cutter MC320
FHA Flute helix angle
40 Degree
FHH Flute helix hand
R - Hand of helix right
GAMF Rake angle radial
10.5 Degree
GAMP Rake angle axial
4 Degree
GRDMFG Grade manufacturers designation
WK40TF
HAND Cutting direction
R - Right
ID Technical product number
7438155
Interface codes
J6 / J61
ISO
ZYL10F6000h$06
ISYC Subclass
303-02 - Centre cutting end mill
LF Functional length
36 mm
LOC-03 CCFMS Form
10
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
ZYL cylindrical shank
LOC-03 CCUMS Unit base
0 Metric
LOC-03 CZCMS Size code
0060
LOC-03 DCONMS Diameter
6 mm
LOC-03 TCDCONCDMS Tolerance class coded
h$06
LOC-03 ISO
ZYL10F6000h$06
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL00601005
LPR Protruding length
18 mm
LS Shank length
36 mm
Materials
P,M,K,S
Name Identifying order number
MC320-06.0W4A-WK40TF
OAL Overall length
54 mm
RE Corner radius
0.2 mm
RMPX Ramping angle maximum
6 Degree
RPMX Rotational speed maximum
80000 1/min
STDLET Standard letter to the standard number
WE
STDNO Standard
DIN 6527 K
TCDCONMS ISO-tolerance class shank diameter
h6
Working process
FEC - Square shoulder milling,FNU - Groove milling,FPL - Face milling,FSE - Counter-sinking,FZI - Circular milling
WT Weight of item
0.024 kg
ZEFF Face effective cutting edge count
4
ZEFP Peripheral effective cutting edge count
4
