Главная Каталог продукции Toolunited 10 303-02 - Centre cutting end mill MC232-03.0A4B030C-WJ30ED

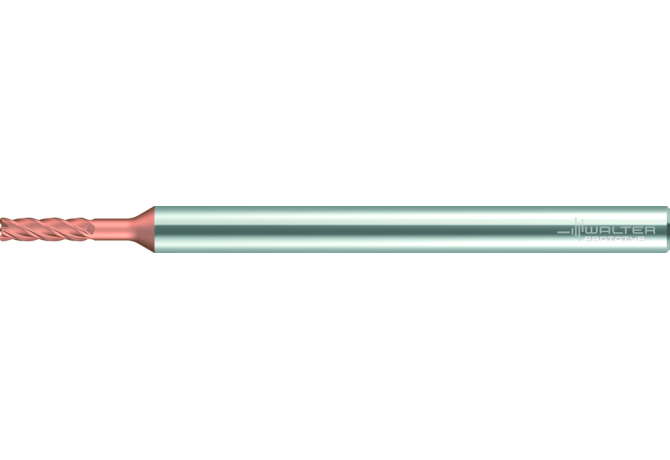

MC232-03.0A4B030C-WJ30ED

Артикул: 7568697

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

8 mm

BMC Body material code

H - Solid carbide

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating / Покрытие

AlCrSiN

COMPC Company code

W - Walter

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

3 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2023

DIN

ZYL00400105

DN Neck diameter

2.85 mm

F71 Number of corner designs

FamilyProducts

Solid carbide shoulder/slot mills MC232

FHA Flute helix angle

35 Degree

FHH Flute helix hand

R - Hand of helix right

GAMF Rake angle radial

8 Degree

GAMP Rake angle axial

4 Degree

GRDMFG Grade manufacturers designation

WJ30ED

HAND Cutting direction

R - Right

ID Technical product number

7568697

Interface codes

J6 / J61

ISO

ZYL01F4000h$06

ISYC Subclass

303-02 - Centre cutting end mill

LF Functional length

57 mm

LN Neck length

11.97 mm

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

ZYL cylindrical shank

LOC-03 CCUMS Unit base

0 Metric

LOC-03 CZCMS Size code

0040

LOC-03 DCONMS Diameter

4 mm

LOC-03 TCDCONCDMS Tolerance class coded

h$06

LOC-03 ISO

ZYL01F4000h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00400105

LPR Protruding length

29 mm

LS Shank length

28 mm

Materials

P,M,K,N,S

Name Identifying order number

MC232-03.0A4B030C-WJ30ED

OAL Overall length

57 mm

RE Corner radius

0.3 mm

RMPX Ramping angle maximum

6 Degree

RPMX Rotational speed maximum

80000 1/min

STDLET Standard letter to the standard number

STDNO Standard

DIN 6527 L

TCDCONMS ISO-tolerance class shank diameter

Working process

FEC - Square shoulder milling,FFO - Die milling,FNU - Groove milling,FPL - Face milling,FSE - Counter-sinking,FZI - Circular milling

WT Weight of item

0.009 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
