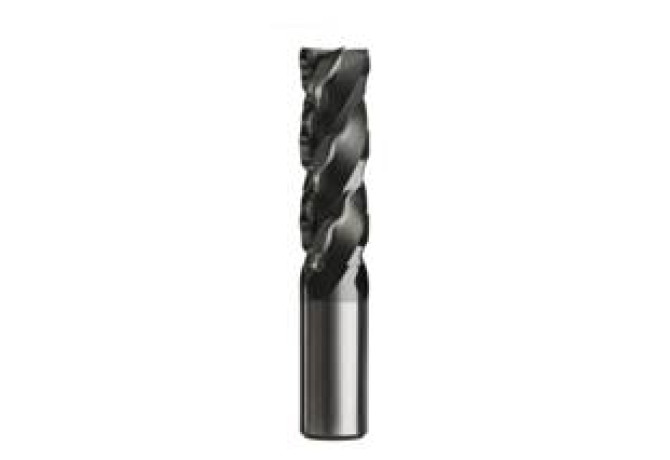

Главная Каталог продукции Toolunited 10 303-02 - Centre cutting end mill JCO710200D2R400.3Z4A-SIRA

JCO710200D2R400.3Z4A-SIRA

JCO710200D2R400.3Z4A-SIRA JCO710200D2R400.3Z4A-SIRA JCO710200D2R400.3Z4A-SIRA JCO710200D2R400.3Z4A-SIRA

JCO710200D2R400.3Z4A-SIRA

Seco
Артикул: 03094452
В наличии
В корзину
Описание
Характеристики

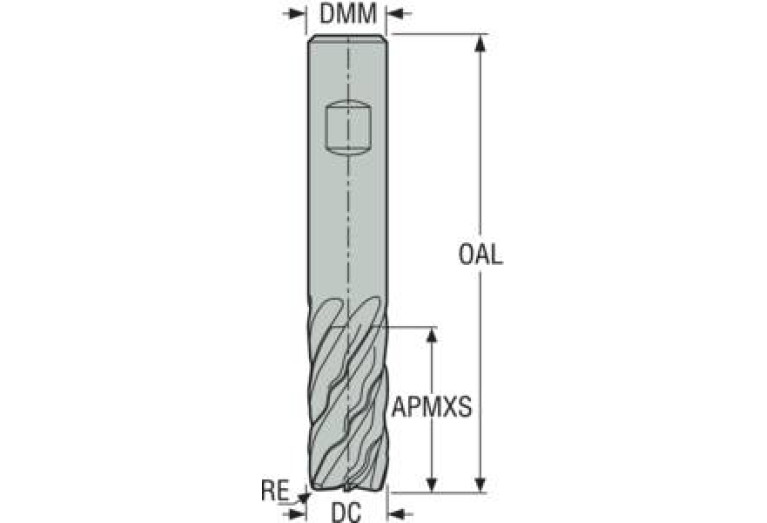

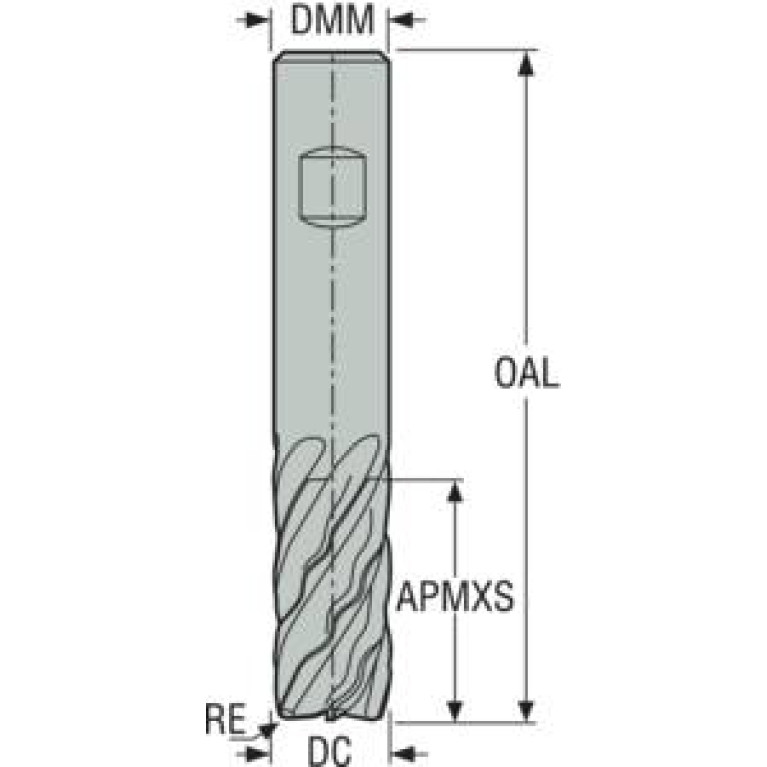

APMX Depth of cut maximum
38 mm
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
SO - SECO Tools
DC Cutting diameter
20 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
3/14/2020
DIN
ZYL02001015
F71 Number of corner designs
1
FamilyProducts
JCO710200D2R400.3Z4A-SIRA
FHA Flute helix angle
7 Degree
FHH Flute helix hand
R - Hand of helix right
GAMF Rake angle radial
7 Degree
GAMP Rake angle axial
12 Degree
HAND Cutting direction
R - Right
ID Technical product number
03094452
Interface codes
J6 /
ISYC Subclass
303-02 - Centre cutting end mill
LOC-03 CCFMS Connection code form
10
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0200
LOC-03 DCONMS Diameter
20 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL02001015

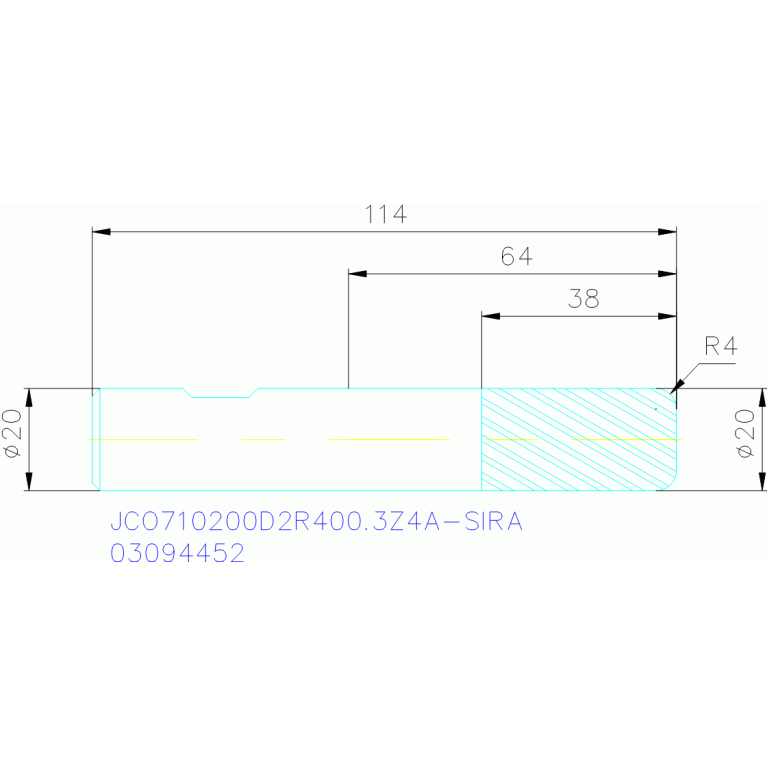

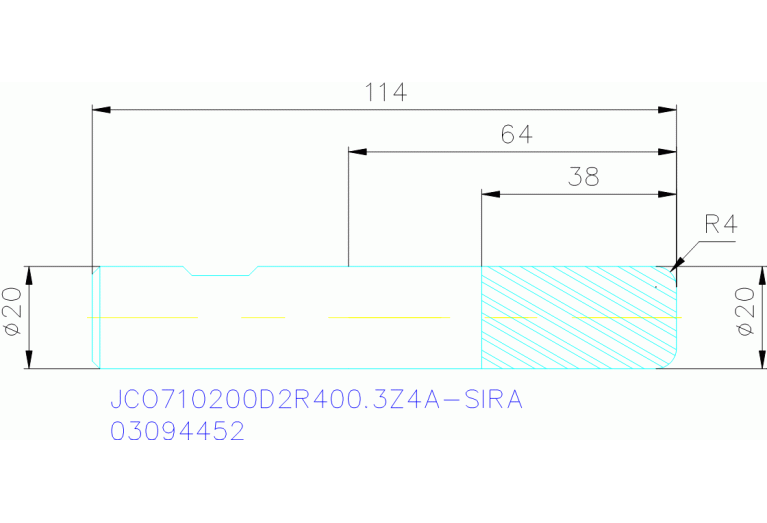

LS Shank length
50 mm
Name Identifying order number
JCO710200D2R400.3Z4A-SIRA
OAL Overall length
114 mm
RE Corner radius
4 mm
Working process
No working processes available
ZEFF Face effective cutting edge count
4
ZEFP Peripheral effective cutting edge count
4
