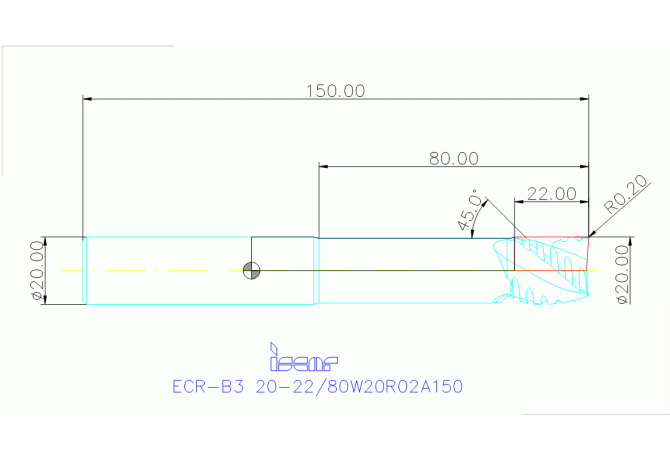

ECR-B3 20-22/80W20R02A150 IC08

Артикул: 5622072

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

22 mm

BMC Body material code

H - Solid carbide

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating / Покрытие

Uncoated

COMPC Company code

IS - Iscar

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

20 mm

DCP Data chip provision

0 - Without data chip

DIN

ZYL02001005

F71 Number of corner designs

FamilyProducts

3 Flute, 45° Helix Solid Carbide Roughing Endmills with 3xD Relieved Necks for High Stock Removal Rates of Aluminum

FHA Flute helix angle

45 Degree

FHH Flute helix hand

R - Hand of helix right

GRDMFG Grade manufacturers designation

IC08

HAND Cutting direction

R - Right

ID Technical product number

5622072

Interface codes

J6 / J61

ISO

ZYL10G2000h$06

ISYC Subclass

303-02 - Centre cutting end mill

LF Functional length

125 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0200

LOC-03 DCONMS Diameter

20 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03 ISO

ZYL10G2000h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL02001005

LS Shank length

70 mm

Name Identifying order number

ECR-B3 20-22/80W20R02A150 IC08

OAL Overall length

150 mm

RE Corner radius

0.2 mm

RMPX Ramping angle maximum

20 Degree

TCDCONMS ISO-tolerance class shank diameter

Working process

No working processes available

WT Weight of item

0.58 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
