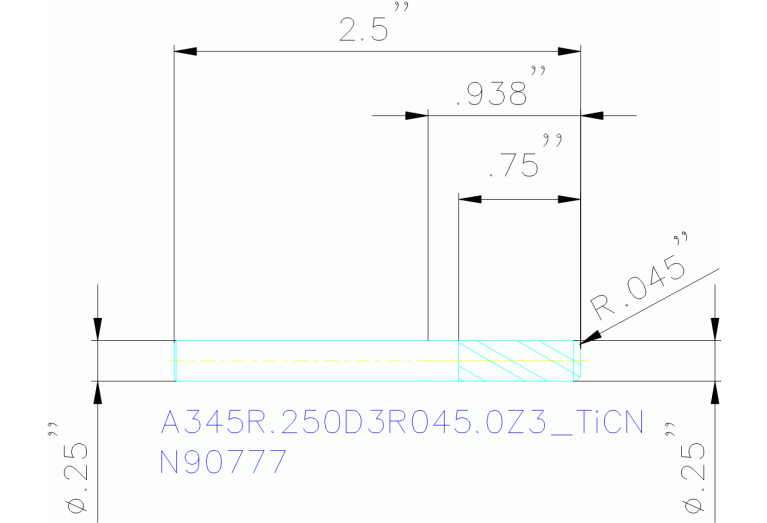

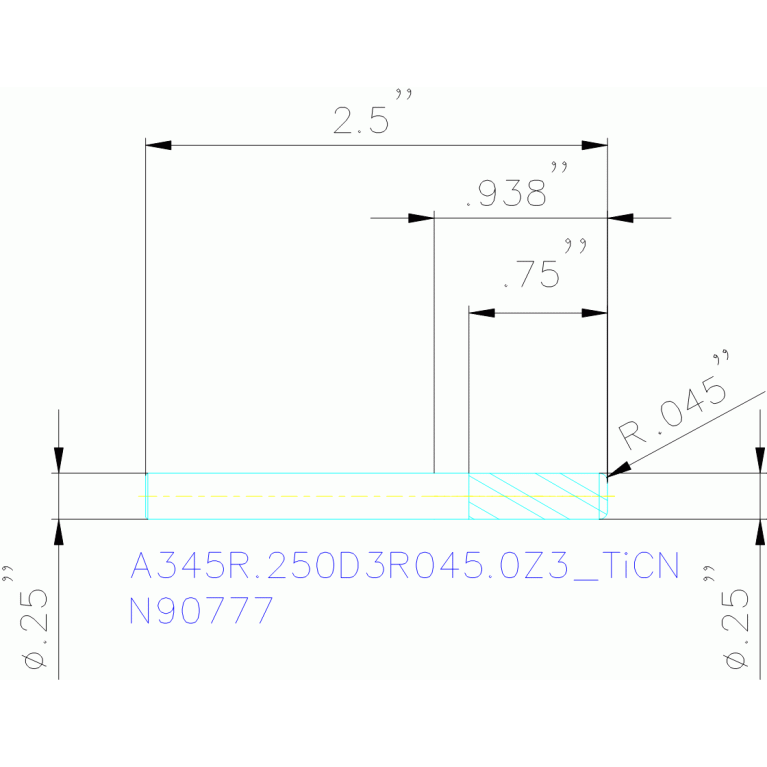

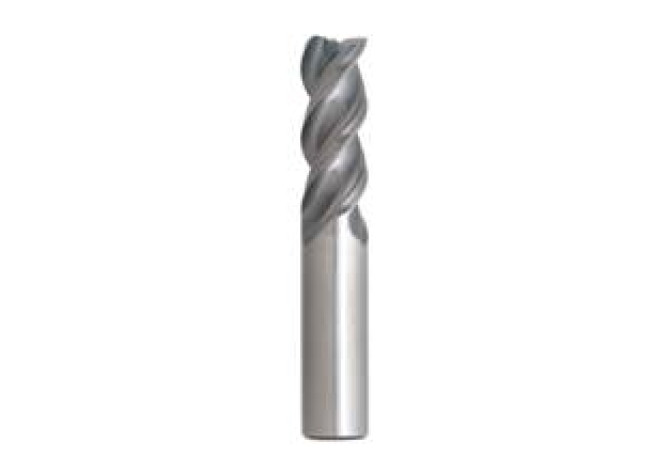

A345R.250D3R045.0Z3 TICN

A345R.250D3R045.0Z3 TICN A345R.250D3R045.0Z3 TICN A345R.250D3R045.0Z3 TICN A345R.250D3R045.0Z3 TICN

A345R.250D3R045.0Z3 TICN

Seco
Артикул: 17006831
В наличии
В корзину
Описание
Характеристики

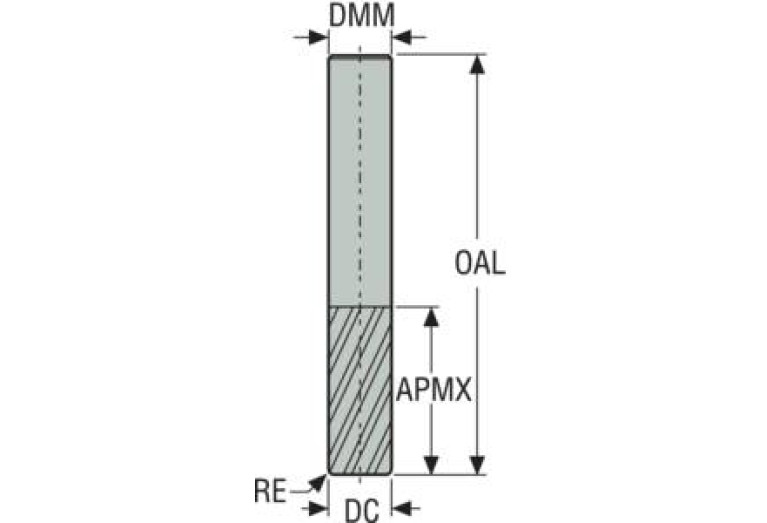

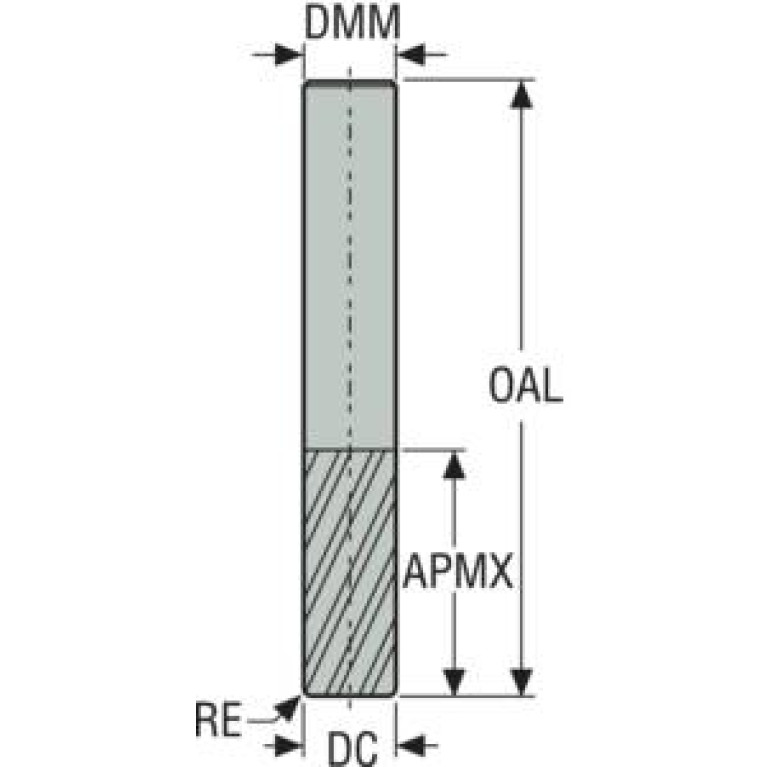

APMX Depth of cut maximum
19.05 mm
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
SO - SECO Tools
CXSC Coolant exit style code
0 - Without coolant exit
DC Cutting diameter
6.35 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
3/14/2020
DIN
ZYL02500125
F71 Number of corner designs
1
FamilyProducts
A345R.250D3R045.0Z3 TICN
FHA Flute helix angle
45 Degree
FHH Flute helix hand
R - Hand of helix right
GAMF Rake angle radial
7 Degree
GAMP Rake angle axial
13 Degree
GRDMFG Grade manufacturers designation
TICN
HAND Cutting direction
R - Right
ID Technical product number
17006831
Interface codes
J6 / J61
ISO
ZYL01R2500h$05
ISYC Subclass
303-02 - Centre cutting end mill
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
2 Inch
LOC-03 CZCMS Connection size code
0250
LOC-03 DCONMS Diameter
6.35 mm
LOC-03 ISO
ZYL01R2500h$05
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL02500125
LS Shank length
36 mm
Name Identifying order number
A345R.250D3R045.0Z3 TICN
NameAnsi Identifying order number inch alternative
A345R-0.250-D3-R045.0-Z3 TICN
OAL Overall length
63.5 mm
RE Corner radius
1.143 mm
Working process
No working processes available
WT Weight of item
0.027 kg
ZEFF Face effective cutting edge count
3
ZEFP Peripheral effective cutting edge count
3
