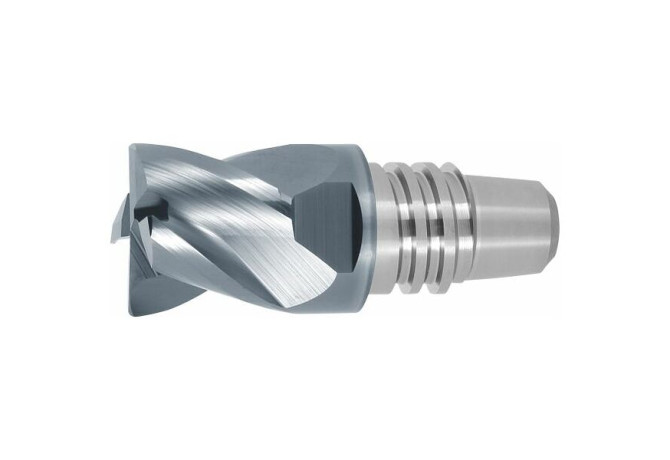

Главная Каталог продукции Toolunited 10 303-02 - Centre cutting end mill 210245 20

210245 20

Артикул: 210245 20

В наличии

В корзину

Описание

Характеристики

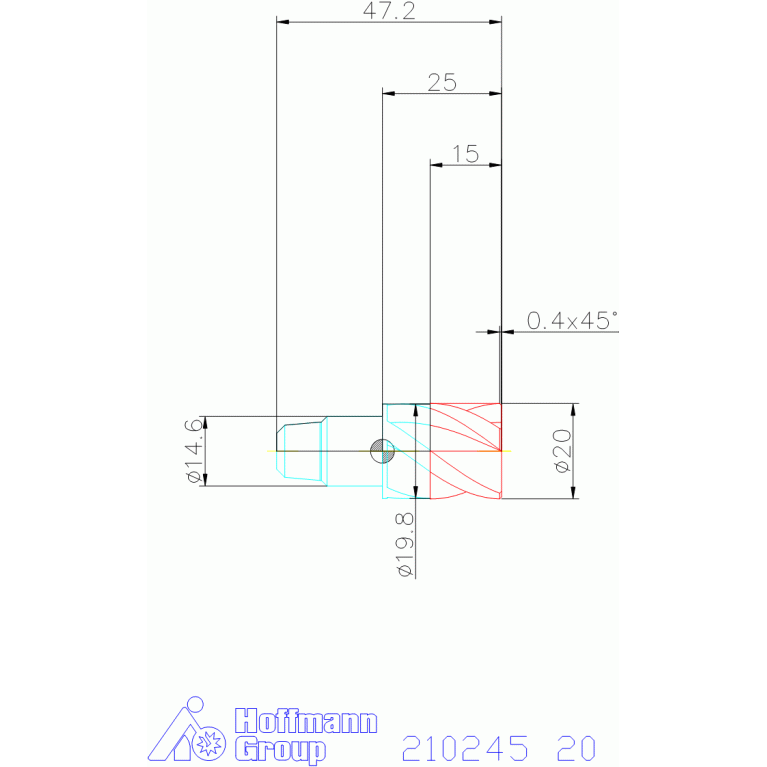

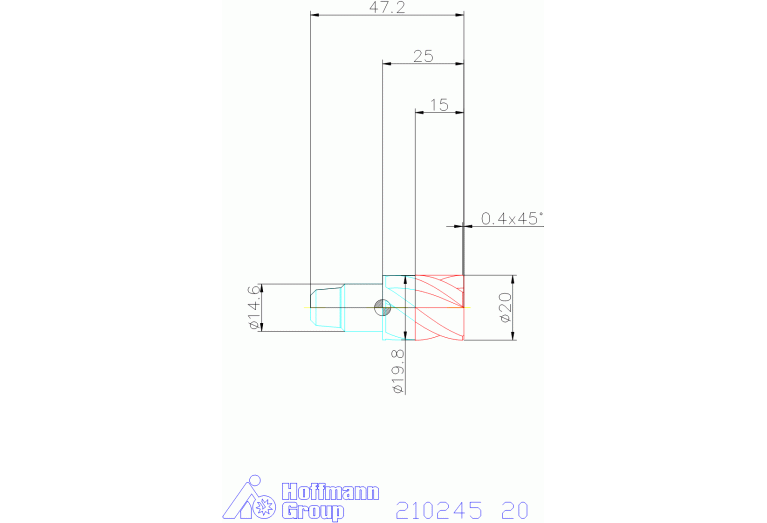

APMX Depth of cut maximum

15 mm

BMC Body material code

H - Solid carbide

CHW Corner chamfer width

0.4 mm

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating / Покрытие

ALCRN

COMPC Company code

HOG - Hoffmann Group

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

20 mm

DCP Data chip provision

0 - Without data chip

DIN

HOG-TOPCUT20

DN Neck diameter

19.8 mm

F71 Number of corner designs

FamilyProducts

MasterSteel end milling head, 45° chamfer

FHA Flute helix angle

37 Degree

FHH Flute helix hand

R - Hand of helix right

GRDMFG Grade manufacturers designation

HB730

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

303-02 - Centre cutting end mill

KCH Corner chamfer angle

45 Degree

LN Neck length

25 mm

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 DCONMS Diameter

14.6 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

HOG-TOPCUT20

LPR Protruding length

25 mm

LS Shank length

22.2 mm

Name Identifying order number

210245 20

OAL Overall length

47.2 mm

RMPX Ramping angle maximum

3 Degree

Working process

FEC - Square shoulder milling,FNB - Slotting,FNU - Groove milling

WT Weight of item

0.102 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count

ZNC Cutting edge centre count
