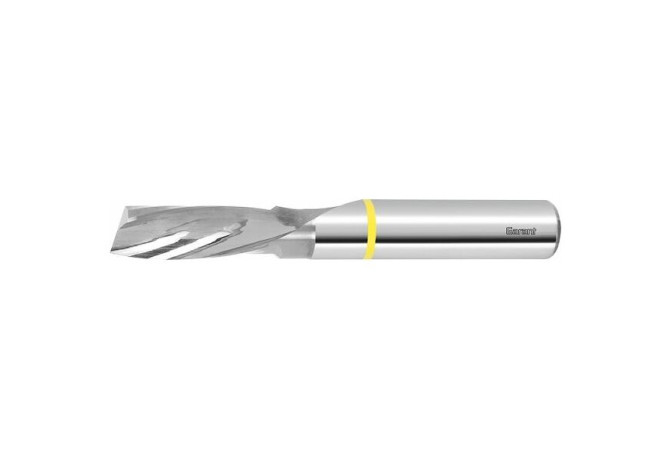

Главная Каталог продукции Toolunited 10 303-02 - Centre cutting end mill 209305 12

209305 12

Артикул: 209305 12

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

30 mm

BMC Body material code

H - Solid carbide

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

HOG - Hoffmann Group

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

12 mm

DCP Data chip provision

0 - Without data chip

DIN

ZYL01200105

DN Neck diameter

11.8 mm

F71 Number of corner designs

FamilyProducts

Solid carbide end mill

FHA Flute helix angle

23 Degree

FHH Flute helix hand

L - Hand of helix left

GAMF Rake angle radial

0 Degree

GAMP Rake angle axial

0 Degree

GRDMFG Grade manufacturers designation

VHM

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

303-02 - Centre cutting end mill

LH Head length

38 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0120

LOC-03 DCONMS Diameter

12 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$05

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01200105

LPR Protruding length

50 mm

LS Shank length

33 mm

Name Identifying order number

209305 12

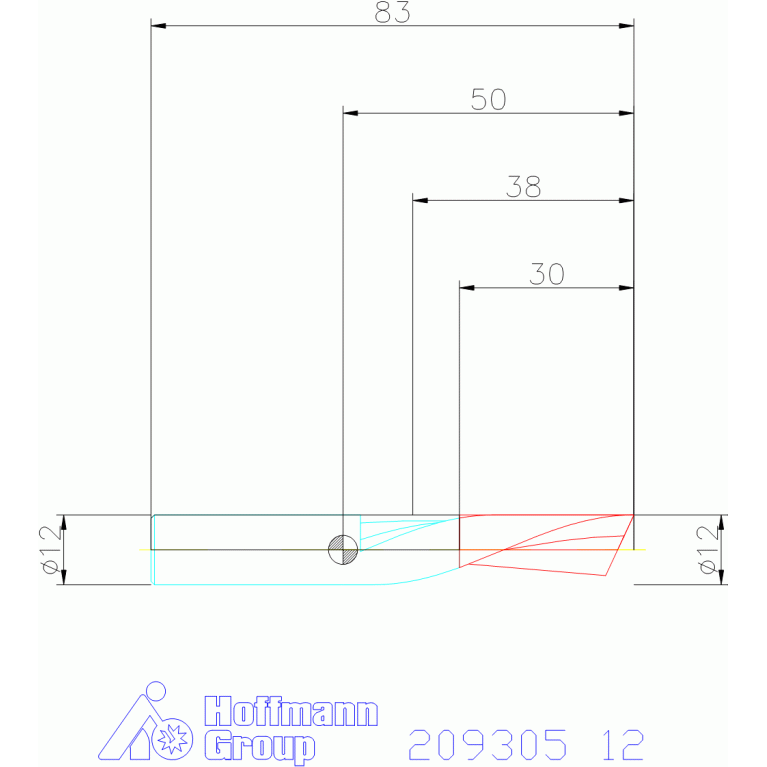

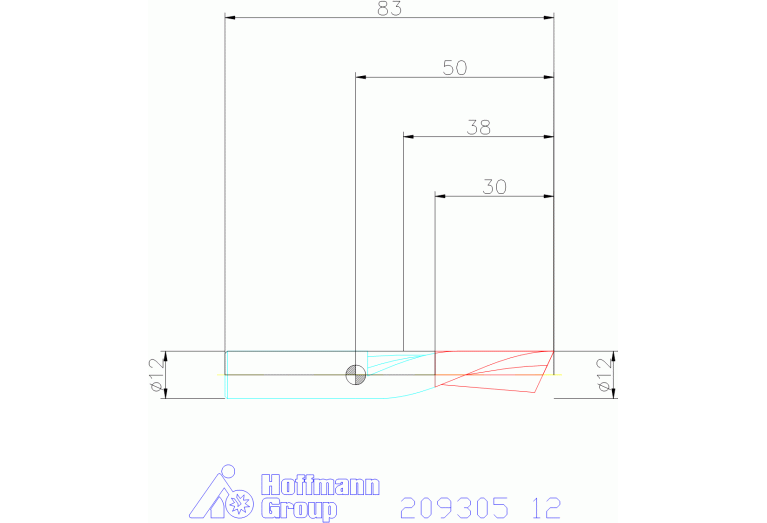

OAL Overall length

83 mm

RMPX Ramping angle maximum

0 Degree

TCDCONMS ISO-tolerance class shank diameter

Working process

No working processes available

WT Weight of item

0.096 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count

ZNC Cutting edge centre count
