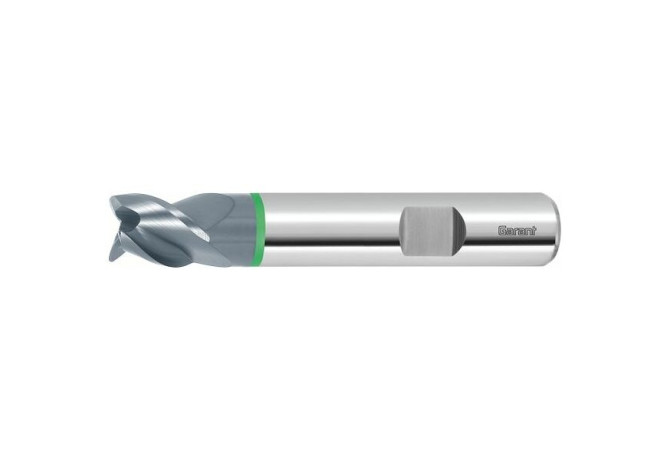

Главная Каталог продукции Toolunited 10 303-02 - Centre cutting end mill 202402 10

202402 10

Артикул: 202402 10

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

11 mm

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating / Покрытие

ALCRN

COMPC Company code

HOG - Hoffmann Group

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

10 mm

DCP Data chip provision

0 - Without data chip

DIN

ZYL01001015

F71 Number of corner designs

FamilyProducts

MasterSteel PickPocket solid carbide roughing end mill

FHA Flute helix angle

42 Degree

FHH Flute helix hand

R - Hand of helix right

GAMF Rake angle radial

0 Degree

GAMP Rake angle axial

42 Degree

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

303-02 - Centre cutting end mill

LH Head length

11 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0100

LOC-03 DCONMS Diameter

10 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01001015

LPR Protruding length

25 mm

LS Shank length

41 mm

Name Identifying order number

202402 10

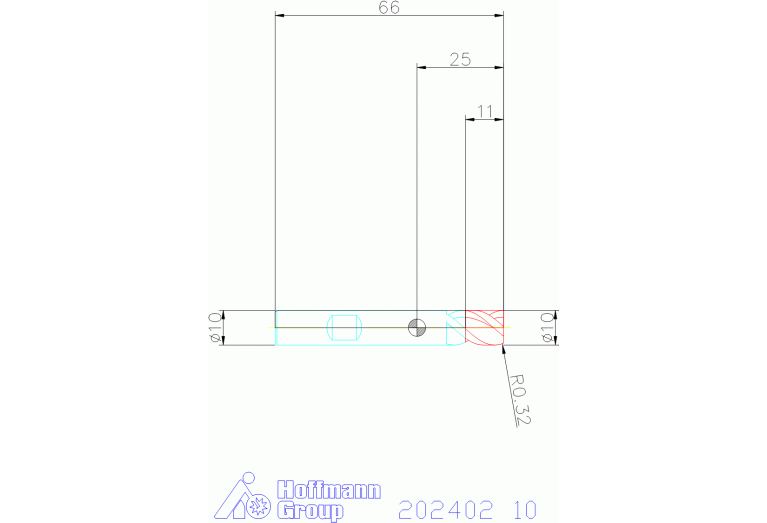

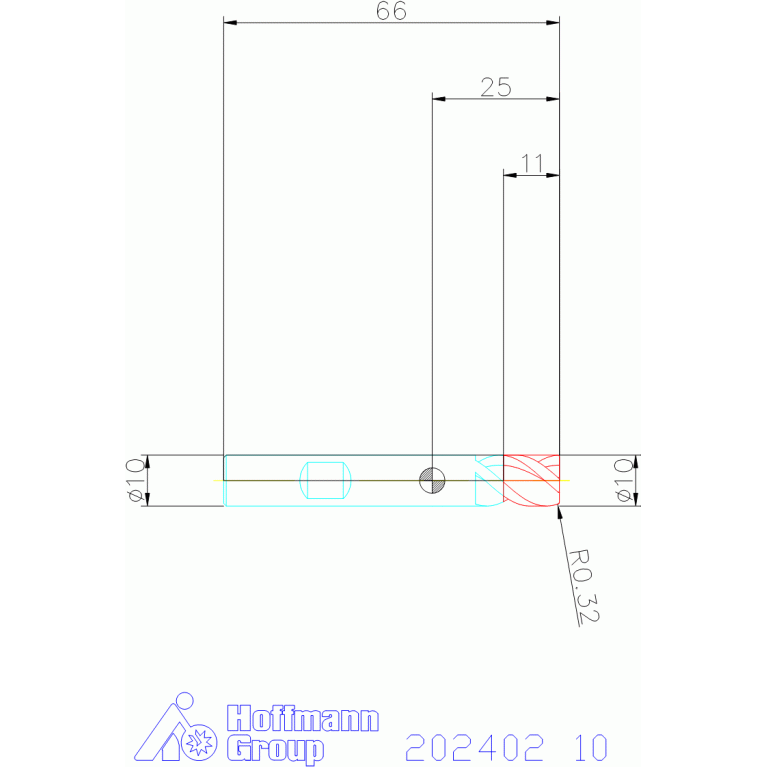

OAL Overall length

66 mm

RE Corner radius

0.32 mm

RMPX Ramping angle maximum

90 Degree

Working process

No working processes available

WT Weight of item

0.067 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count

ZNC Cutting edge centre count
