Главная Каталог продукции Toolunited 10 303-01 - Non-centre cutting end mill MM EC160H12C6-5T10CF IC308

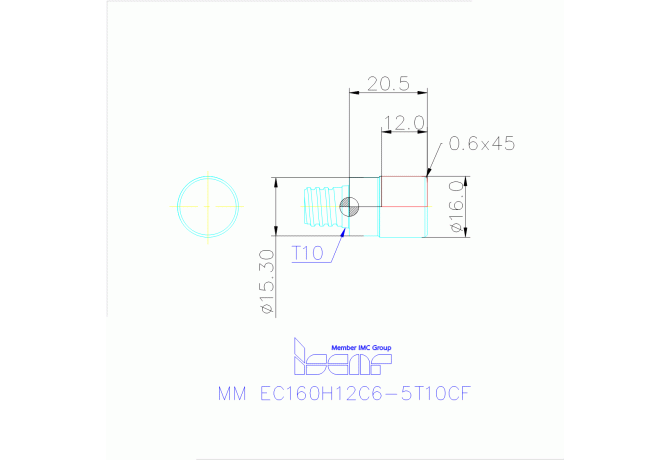

MM EC160H12C6-5T10CF IC308

Артикул: 5623383

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

12 mm

BMC Body material code

H - Solid carbide

CHW Corner chamfer width

0.6 mm

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating / Покрытие

TiCN

COMPC Company code

IS - Iscar

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

16 mm

DCP Data chip provision

0 - Without data chip

DIN

SAI01000185

F71 Number of corner designs

FamilyProducts

Interchangeable Carbide Endmill Heads for Chatter Free Milling of High Temperature Alloys like Titanium and Inconel

FHA Flute helix angle

38 Degree

FHH Flute helix hand

R - Hand of helix right

GRDMFG Grade manufacturers designation

IC308

HAND Cutting direction

R - Right

ID Technical product number

5623383

Interface codes

J6 / J61

ISO

SAI01C0100$$$$

ISYC Subclass

303-01 - Non-centre cutting end mill

LF Functional length

20.5 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

SAI Screw mounting ISCAR

LOC-03 CCUMS Connection code unit base

8 non-dimensional size

LOC-03 CZCMS Connection size code

0100

LOC-03 DCONMS Diameter

15.3 mm

LOC-03 ISO

SAI01C0100$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SAI01000185

Name Identifying order number

MM EC160H12C6-5T10CF IC308

RMPX Ramping angle maximum

4 Degree

THSZMS Connection thread nominal size machine side

T10

Working process

No working processes available

WT Weight of item

0.05 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
