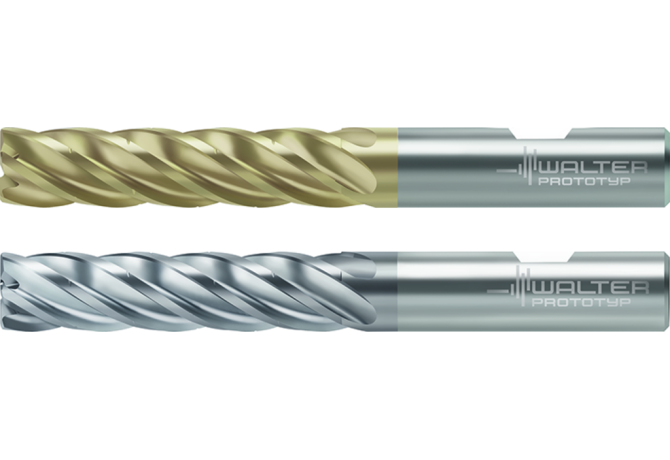

MD133-16.0W6L080K-WJ30RD

MD133-16.0W6L080K-WJ30RD MD133-16.0W6L080K-WJ30RD MD133-16.0W6L080K-WJ30RD

MD133-16.0W6L080K-WJ30RD

Walter
Артикул: 7496814
В наличии
В корзину
Описание
Характеристики
APMX Depth of cut maximum
66 mm
BMC Body material code
H - Solid carbide
CNSC Coolant entry style code
0 - Without coolant entry
COATN Coating / Покрытие
AlTiN + ZrN
COMPC Company code
W - Walter
CXSC Coolant exit style code
0 - Without coolant exit
DC Cutting diameter
16 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
ZYL01601005
F71 Number of corner designs
1
FamilyProducts
Solid carbide shoulder milling cutters MD133
FHA Flute helix angle
35 Degree
FHH Flute helix hand
R - Hand of helix right
GAMF Rake angle radial
10.5 Degree
GAMP Rake angle axial
7 Degree
GRDMFG Grade manufacturers designation
WJ30RD
HAND Cutting direction
R - Right
ID Technical product number
7496814
Interface codes
J6 / J61
ISO
ZYL10G1600h$06
ISYC Subclass
303-01 - Non-centre cutting end mill
LF Functional length
101 mm
LOC-03 CCFMS Form
10
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
ZYL cylindrical shank
LOC-03 CCUMS Unit base
0 Metric
LOC-03 CZCMS Size code
0160
LOC-03 DCONMS Diameter
16 mm
LOC-03 TCDCONCDMS Tolerance class coded
h$06
LOC-03 ISO
ZYL10G1600h$06
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL01601005
LPR Protruding length
77 mm
LS Shank length
48 mm
Materials
P,K
Name Identifying order number
MD133-16.0W6L080K-WJ30RD
OAL Overall length
125 mm
RE Corner radius
0.8 mm
RMPX Ramping angle maximum
2 Degree
RPMX Rotational speed maximum
80000 1/min
STDLET Standard letter to the standard number
WE
STDNO Standard
PWZ-NORM L
TCDCONMS ISO-tolerance class shank diameter
h6
Working process
FEC - Square shoulder milling,FFO - Die milling,FNU - Groove milling,FPL - Face milling,FZI - Circular milling
WT Weight of item
0.33 kg
ZEFF Face effective cutting edge count
6
ZEFP Peripheral effective cutting edge count
6
