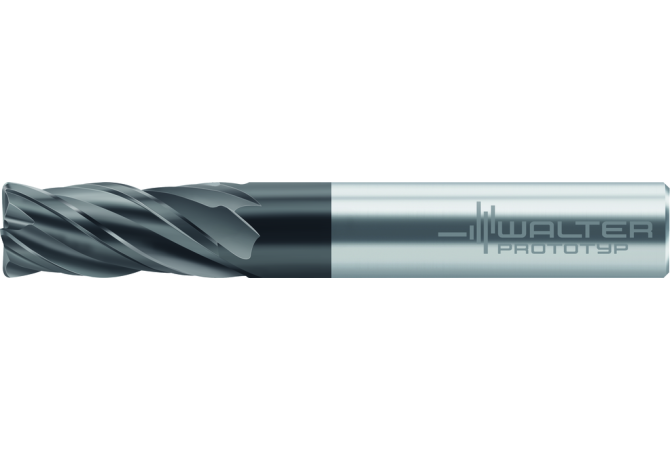

Главная Каталог продукции Toolunited 10 303-01 - Non-centre cutting end mill MC251.12.7-A4D076-WK40RC

MC251.12.7-A4D076-WK40RC

Артикул: 7091876

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

27 mm

BMC Body material code

H - Solid carbide

CHW Corner chamfer width

0 mm

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

W - Walter

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

12.7 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2023

DIN

ZYL05000125

F71 Number of corner designs

F72 Corner design

1 - radius

FamilyProducts

Solid carbide shoulder/slot mills MC251

FHA Flute helix angle

38 Degree

FHH Flute helix hand

R - Hand of helix right

GAMF Rake angle radial

13.5 Degree

GAMP Rake angle axial

4 Degree

GRDMFG Grade manufacturers designation

WK40RC

HAND Cutting direction

R - Right

ID Technical product number

7091876

Interface codes

J6 / J61

ISO

ZYL01R5000h$05

ISYC Subclass

303-01 - Non-centre cutting end mill

KCH Corner chamfer angle

90 Degree

LF Functional length

88.9 mm

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

ZYL cylindrical shank

LOC-03 CCUMS Unit base

2 Inch

LOC-03 CZCMS Size code

0500

LOC-03 DCONMS Diameter

12.7 mm

LOC-03 TCDCONCDMS Tolerance class coded

h$05

LOC-03 ISO

ZYL01R5000h$05

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL05000125

LPR Protruding length

43.6 mm

Name Identifying order number

MC251.12.7-A4D076-WK40RC

OAL Overall length

88.9 mm

RE Corner radius

0.762 mm

RMPX Ramping angle maximum

6 Degree

RPMX Rotational speed maximum

80000 1/min

STDNO Standard

STANDARD

TCDCONMS ISO-tolerance class shank diameter

Working process

FEC - Square shoulder milling,FFO - Die milling,FNU - Groove milling,FPL - Face milling,FSE - Counter-sinking,FZI - Circular milling

WT Weight of item

0.15 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
