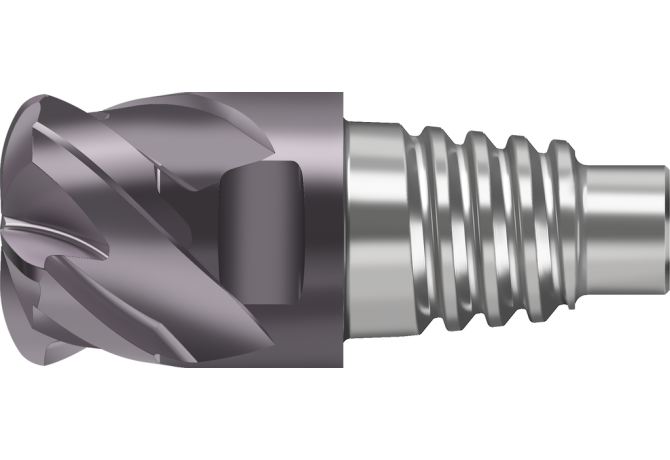

Главная Каталог продукции Toolunited 10 303-01 - Non-centre cutting end mill MC025.9.53E4P152-WJ30TF

MC025.9.53E4P152-WJ30TF

MC025.9.53E4P152-WJ30TF MC025.9.53E4P152-WJ30TF MC025.9.53E4P152-WJ30TF

MC025.9.53E4P152-WJ30TF

Walter
Артикул: 7745687
В наличии
В корзину
Описание
Характеристики

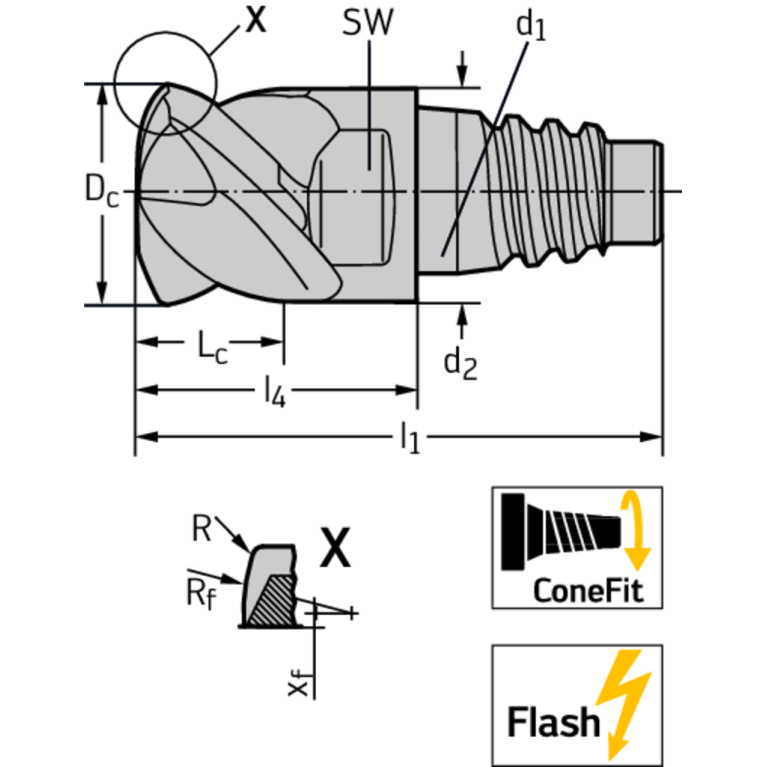

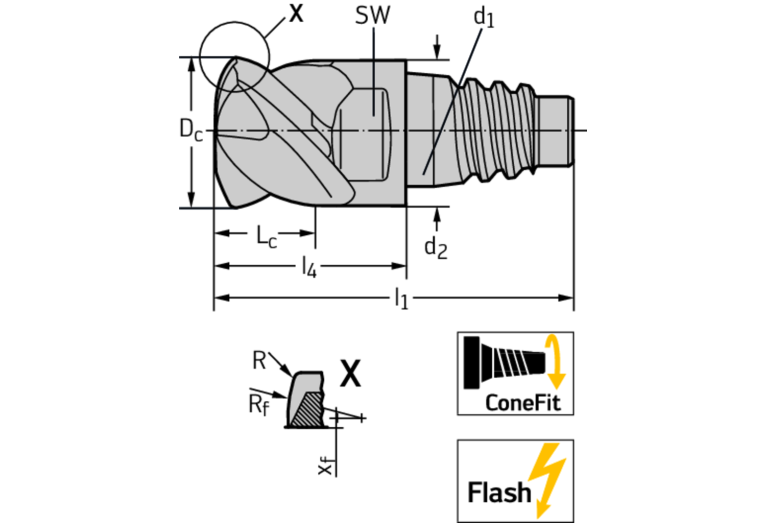

APMX Depth of cut maximum
5.3 mm
BMC Body material code
H - Solid carbide
CNSC Coolant entry style code
0 - Without coolant entry
COATN Coating / Покрытие
TiAlN
COMPC Company code
W - Walter
CXSC Coolant exit style code
0 - Without coolant exit
DC Cutting diameter
9.525 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
SAC01000405
DN Neck diameter
9.25 mm
F71 Number of corner designs
1
FamilyProducts
Solid carbide high feed milling cutters MC025
FHA Flute helix angle
50 Degree
FHH Flute helix hand
R - Hand of helix right
GAMF Rake angle radial
-18 Degree
GAMP Rake angle axial
6 Degree
GRDMFG Grade manufacturers designation
WJ30TF
HAND Cutting direction
R - Right
ID Technical product number
7745687
Interface codes
J6 / J61
ISO
SAC04B0100$$$$
ISYC Subclass
303-01 - Non-centre cutting end mill
LF Functional length
12.4 mm
LOC-03 CCFMS Form
04
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
SAC Screw mounting SANDVIK Coromant
LOC-03 CCUMS Unit base
0 Metric
LOC-03 CZCMS Size code
0100
LOC-03 DCONMS Diameter
9.25 mm
LOC-03 ISO
SAC04B0100$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SAC01000405
LPR Protruding length
12.4 mm
Materials
P,M,K,S
Name Identifying order number
MC025.9.53E4P152-WJ30TF
OAL Overall length
23.6 mm
RE Corner radius
4.6 mm
RMPX Ramping angle maximum
5 Degree
RPMX Rotational speed maximum
80000 1/min
STDNO Standard
PWZ-NORM
Working process
FEC - Square shoulder milling,FNU - Groove milling,FPL - Face milling,FSE - Counter-sinking,FZI - Circular milling
WT Weight of item
0.019 kg
ZEFF Face effective cutting edge count
4
ZEFP Peripheral effective cutting edge count
4
