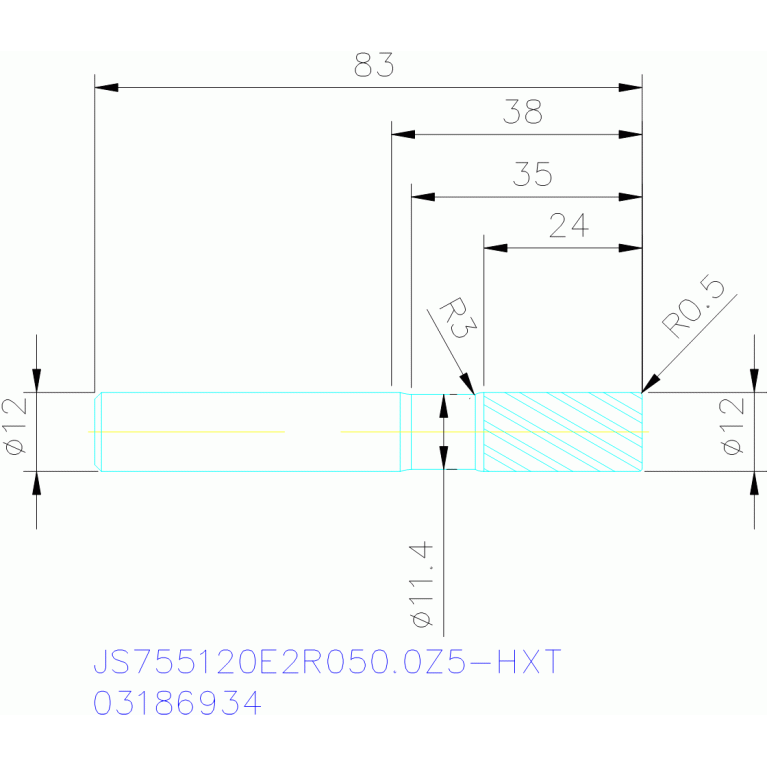

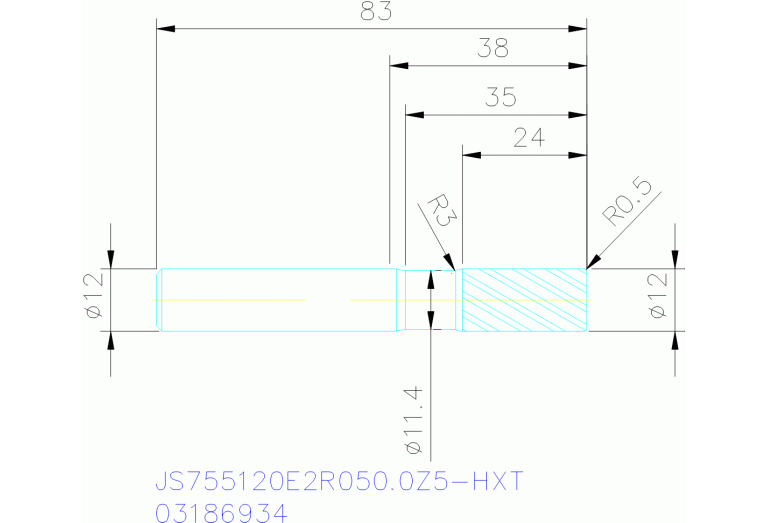

JS755120E2R050.0Z5-HXT
JS755120E2R050.0Z5-HXT
Артикул:
03186934
В наличии
Характеристики
APMX Depth of cut maximum
24 mm
CNSC Coolant entry style code
0 - Without coolant entry
COATN Coating
HXT
COMPC Company code
SO - SECO Tools
CXSC Coolant exit style code
0 - Without coolant exit
DC Cutting diameter
12 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
ZYL01200105
DN Neck diameter
11.4 mm
F71 Number of corner designs
1
FamilyProducts
JS755120E2R050.0Z5-HXT
FHA Flute helix angle
48 Degree
FHH Flute helix hand
R - Hand of helix right
GAMF Rake angle radial
48 Degree
GAMP Rake angle axial
8 Degree
HAND Cutting direction
R - Right
ID Technical product number
03186934
Interface codes
J6 /
ISYC Subclass
303-01 - Non-centre cutting end mill
LN Neck length
35 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0120
LOC-03 DCONMS Diameter
12 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL01200105
LS Shank length
45 mm
Name Identifying order number
JS755120E2R050.0Z5-HXT
OAL Overall length
83 mm
RMPX Ramping angle maximum
5 Degree
Working process
No working processes available
WT Weight of item
0.118 kg
ZEFF Face effective cutting edge count
5
ZEFP Peripheral effective cutting edge count
5
