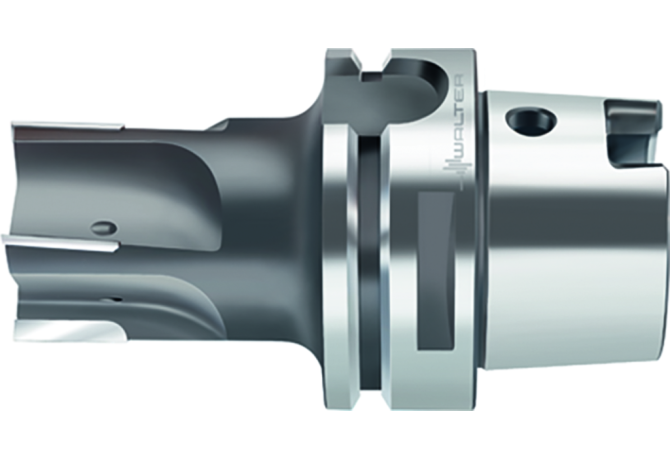

Главная Каталог продукции Toolunited 10 303-01 - Non-centre cutting end mill F4722.H63A.040.Z05.20.D

F4722.H63A.040.Z05.20.D

F4722.H63A.040.Z05.20.D F4722.H63A.040.Z05.20.D F4722.H63A.040.Z05.20.D F4722.H63A.040.Z05.20.D

F4722.H63A.040.Z05.20.D

Walter
Артикул: 5109754
В наличии
В корзину
Описание
Характеристики
APMX Depth of cut maximum
20 mm
BMC Body material code
S - Solid steel
CHW Corner chamfer width
0.2 mm
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COATN Coating / Покрытие
PKD
COMPC Company code
W - Walter
CXSC Coolant exit style code
2 - With Coolant exit, radial

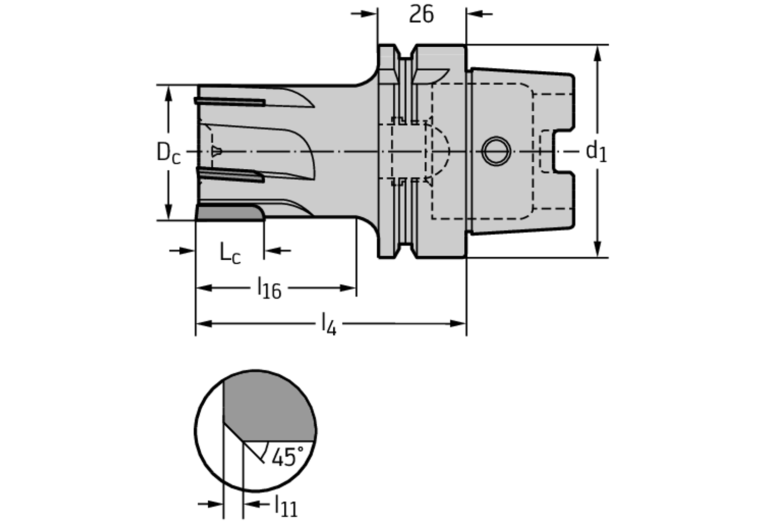

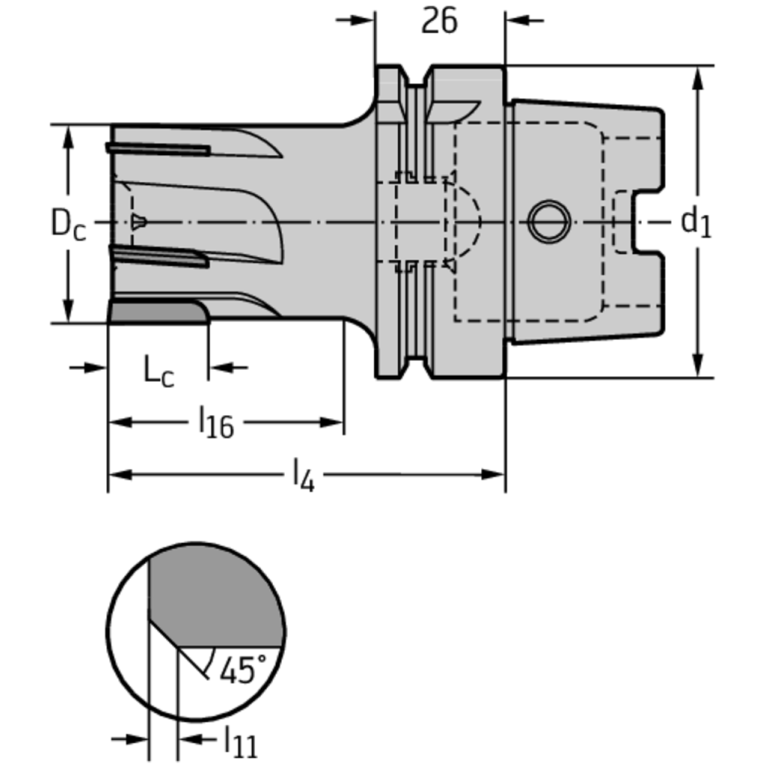

DC Cutting diameter
40 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
HSK06300195
DN Neck diameter
39 mm
F71 Number of corner designs
1
FamilyProducts
PCD shoulder milling cutters F4722
FHA Flute helix angle
4 Degree
FHH Flute helix hand
R - Hand of helix right
GAMF Rake angle radial
0 Degree
GAMP Rake angle axial
4 Degree
GRDMFG Grade manufacturers designation
WCD10
HAND Cutting direction
R - Right
ID Technical product number
5109754
Interface codes
J6 / J61
ISO
HSK01C0630$$$$
ISYC Subclass
303-01 - Non-centre cutting end mill
KCH Corner chamfer angle
45 Degree
LF Functional length
80 mm
LOC-03 CCFMS Form
01
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction

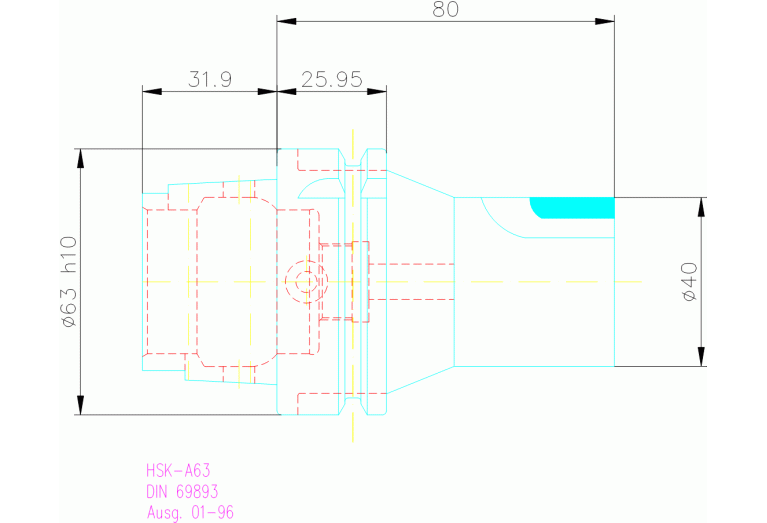

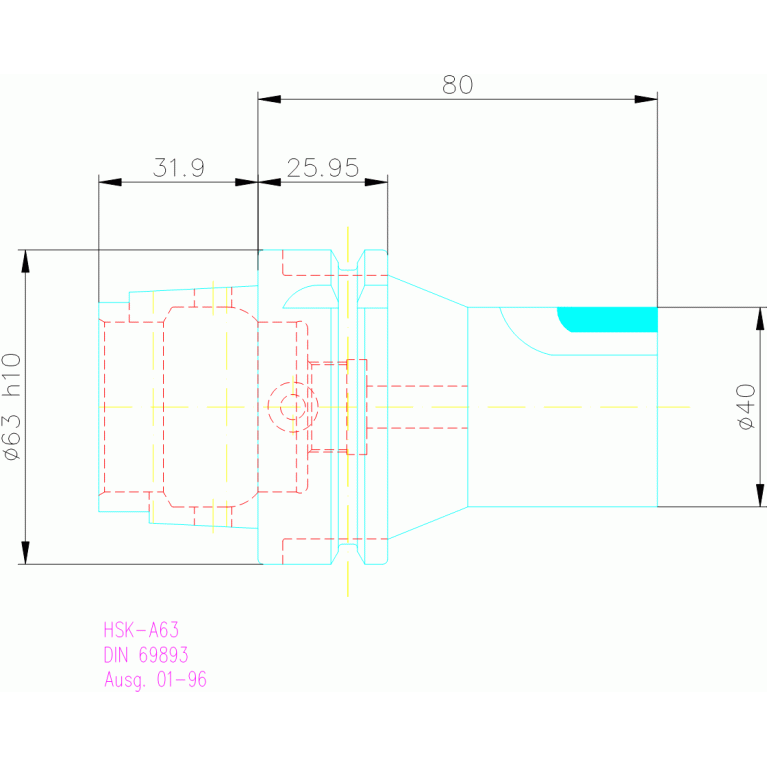

LOC-03 CCTMS Type
HSK Hollow taper shank
LOC-03 CCUMS Unit base
9 non-dimensional size with coolant
LOC-03 CZCMS Size code
0630
LOC-03 DCONMS Diameter
63 mm
LOC-03 ISO
HSK01C0630$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
HSK06300195
LPR Protruding length
80 mm
Name Identifying order number
F4722.H63A.040.Z05.20.D
OAL Overall length
112 mm
RMPX Ramping angle maximum
1 Degree
RPMX Rotational speed maximum
16000 1/min
STDLET Standard letter to the standard number
A
STDNO Standard
ISO12164-1
Working process
FEC - Square shoulder milling,FNU - Groove milling,FPL - Face milling,FSE - Counter-sinking,FZI - Circular milling
WT Weight of item
1.1 kg
ZEFF Face effective cutting edge count
5
ZEFP Peripheral effective cutting edge count
5
