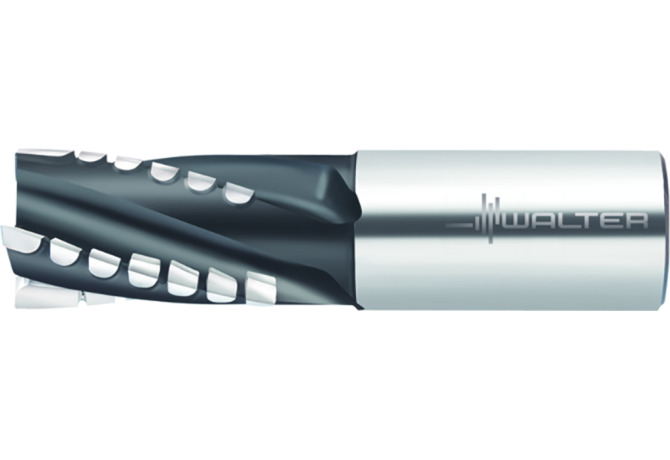

Главная Каталог продукции Toolunited 10 303-01 - Non-centre cutting end mill F1616.W.040.Z02.63.K

F1616.W.040.Z02.63.K

F1616.W.040.Z02.63.K F1616.W.040.Z02.63.K F1616.W.040.Z02.63.K F1616.W.040.Z02.63.K

F1616.W.040.Z02.63.K

Walter
Артикул: 5001607
В наличии
В корзину
Описание
Характеристики
APMX Depth of cut maximum
63 mm
BMC Body material code
S - Solid steel
CHW Corner chamfer width
0.8 mm
CNSC Coolant entry style code
0 - Without coolant entry
COATN Coating / Покрытие
Unbeschichtet
COMPC Company code
W - Walter
CXSC Coolant exit style code
0 - Without coolant exit
DC Cutting diameter
40 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
ZYL04001005
DN Neck diameter
37.5 mm
F71 Number of corner designs
1
FamilyProducts
Brazed porcupine shoulder milling cutters F1616
FHA Flute helix angle
21 Degree
FHH Flute helix hand
R - Hand of helix right
GAMF Rake angle radial
6 Degree
GAMP Rake angle axial
21 Degree
GRDMFG Grade manufacturers designation
WKM
HAND Cutting direction
R - Right
ID Technical product number
5001607
Interface codes
J6 / J61
ISO
ZYL10G4000h$06
ISYC Subclass
303-01 - Non-centre cutting end mill
KCH Corner chamfer angle
45 Degree
LF Functional length
105 mm
LOC-03 CCFMS Form
10
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
ZYL cylindrical shank
LOC-03 CCUMS Unit base
0 Metric
LOC-03 CZCMS Size code
0400
LOC-03 DCONMS Diameter
40 mm
LOC-03 TCDCONCDMS Tolerance class coded
h$06
LOC-03 ISO
ZYL10G4000h$06
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL04001005
LPR Protruding length
84 mm
LS Shank length
70 mm
Name Identifying order number
F1616.W.040.Z02.63.K
OAL Overall length
145 mm
RMPX Ramping angle maximum
1.5 Degree
RPMX Rotational speed maximum
8000 1/min
STDLET Standard letter to the standard number
WE
STDNO Standard
ISO3338-2
TCDCONMS ISO-tolerance class shank diameter
h6
Working process
FEC - Square shoulder milling,FNU - Groove milling,FPL - Face milling,FSE - Counter-sinking,FZI - Circular milling
WT Weight of item
0.918 kg
ZEFF Face effective cutting edge count
2
ZEFP Peripheral effective cutting edge count
2
