Главная Каталог продукции Toolunited 10 303-01 - Non-centre cutting end mill EPN-F12 10-25C10F72 IC02

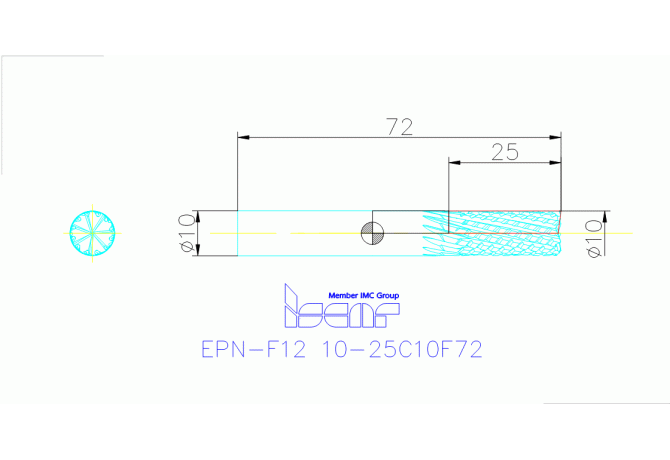

EPN-F12 10-25C10F72 IC02

Артикул: 5622860

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

25 mm

BMC Body material code

H - Solid carbide

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating / Покрытие

Uncoated

COMPC Company code

IS - Iscar

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

10 mm

DCP Data chip provision

0 - Without data chip

DIN

ZYL01000105

F71 Number of corner designs

FamilyProducts

Solid Endmills with a Special Edge Configuration for Machining Different Types of Composite Materials

FHA Flute helix angle

15 Degree

FHH Flute helix hand

R - Hand of helix right

GRDMFG Grade manufacturers designation

IC02

HAND Cutting direction

R - Right

ID Technical product number

5622860

Interface codes

J6 / J61

ISO

ZYL01G1000h$06

ISYC Subclass

303-01 - Non-centre cutting end mill

LF Functional length

72 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0100

LOC-03 DCONMS Diameter

10 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03 ISO

ZYL01G1000h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01000105

Name Identifying order number

EPN-F12 10-25C10F72 IC02

OAL Overall length

72 mm

TCDCONMS ISO-tolerance class shank diameter

Working process

No working processes available

WT Weight of item

0.07 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
