Главная Каталог продукции Toolunited 10 303-01 - Non-centre cutting end mill EFF-S2 02-07/06C6RP0.3M50 IC902

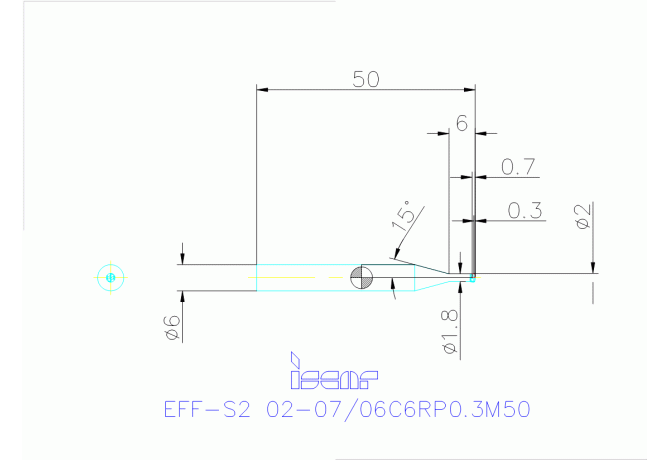

EFF-S2 02-07/06C6RP0.3M50 IC902

Артикул: 5623188

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

0.12 mm

BMC Body material code

H - Solid carbide

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating / Покрытие

TiAlN

COMPC Company code

IS - Iscar

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

2 mm

DCP Data chip provision

0 - Without data chip

DIN

ZYL00600105

F71 Number of corner designs

FamilyProducts

4 Flute Solid Carbide Endmills with Relieved Necks for Fast Feed High Productivity

FHH Flute helix hand

R - Hand of helix right

GRDMFG Grade manufacturers designation

IC902

HAND Cutting direction

R - Right

ID Technical product number

5623188

Interface codes

J6 / J61

ISO

ZYL01F6000h$06

ISYC Subclass

303-01 - Non-centre cutting end mill

LF Functional length

50 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0060

LOC-03 DCONMS Diameter

6 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03 ISO

ZYL01F6000h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00600105

Name Identifying order number

EFF-S2 02-07/06C6RP0.3M50 IC902

OAL Overall length

50 mm

RE Corner radius

0.3 mm

RMPX Ramping angle maximum

5 Degree

TCDCONMS ISO-tolerance class shank diameter

Working process

No working processes available

WT Weight of item

0.02 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
