Главная Каталог продукции Toolunited 10 303-01 - Non-centre cutting end mill AH8095118-3/16-0.015

AH8095118-3/16-0.015

Артикул: 5543534

В наличии

В корзину

Описание

Характеристики

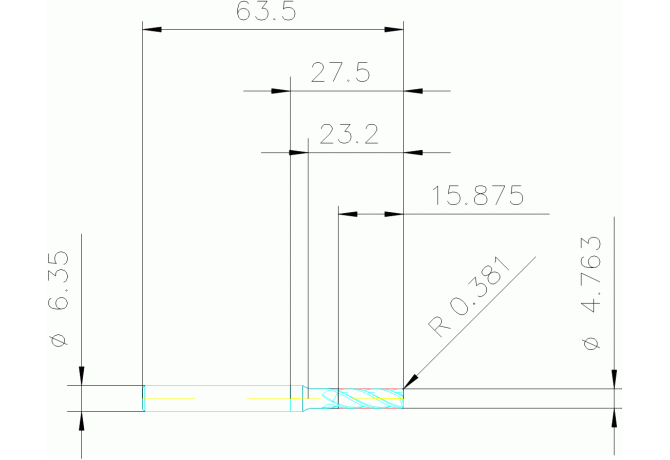

APMX Depth of cut maximum

15.875 mm

BMC Body material code

H - Solid carbide

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

W - Walter

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

4.763 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2023

DIN

ZYL02500125

DN Neck diameter

4.81 mm

F71 Number of corner designs

FamilyProducts

Solid carbide milling cutters

FHA Flute helix angle

30 Degree

FHH Flute helix hand

R - Hand of helix right

GAMF Rake angle radial

10.5 Degree

GAMP Rake angle axial

13.5 Degree

GRDMFG Grade manufacturers designation

TAX

HAND Cutting direction

R - Right

ID Technical product number

5543534

Interface codes

J6 / J61

ISO

ZYL01R2500h$06

ISYC Subclass

303-01 - Non-centre cutting end mill

LF Functional length

63.5 mm

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

ZYL cylindrical shank

LOC-03 CCUMS Unit base

2 Inch

LOC-03 CZCMS Size code

0250

LOC-03 DCONMS Diameter

6.35 mm

LOC-03 TCDCONCDMS Tolerance class coded

h$06

LOC-03 ISO

ZYL01R2500h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL02500125

LPR Protruding length

27.5 mm

Name Identifying order number

AH8095118-3/16-0.015

OAL Overall length

63.5 mm

RE Corner radius

0.381 mm

RMPX Ramping angle maximum

6 Degree

RPMX Rotational speed maximum

80000 1/min

STDNO Standard

STANDARD

TCDCONMS ISO-tolerance class shank diameter

Working process

FEC - Square shoulder milling,FFO - Die milling,FNU - Groove milling,FPL - Face milling,FSE - Counter-sinking,FZI - Circular milling

WT Weight of item

0.025 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
