Главная Каталог продукции Toolunited 10 303-01 - Non-centre cutting end mill 2883RZ.025020

2883RZ.025020

Артикул: 2883RZ.025020

В наличии

В корзину

Описание

Характеристики

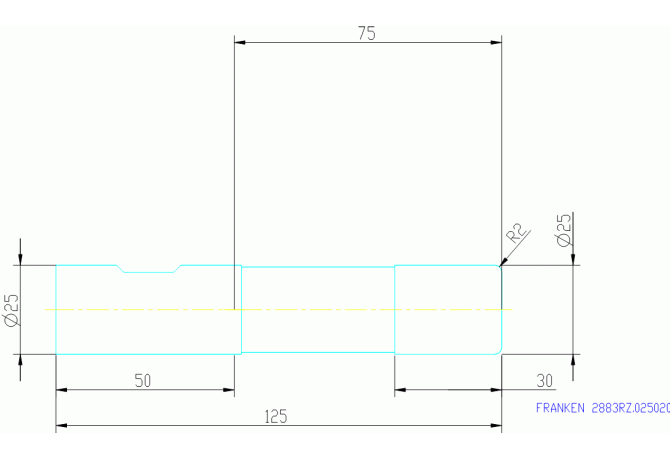

APMX Depth of cut maximum

30 mm

BMC Body material code

H - Solid carbide

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COATN Coating / Покрытие

CRN

COMPC Company code

E - Emuge

CRCLDIN Chip removal class

CXSC Coolant exit style code

3 - With Coolant exit, axial and radial

DC Cutting diameter

25 mm

DCONMSLD Shank diameter lower limit

-0.009 mm

DCONMSUD Shank diameter upper limit

0 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

10/1/2022

DIN

ZYL02501015

DN Neck diameter

24 mm

F71 Number of corner designs

FamilyProducts

End Mill

FHA Flute helix angle

40 Degree

FHH Flute helix hand

R - Hand of helix right

GRDMFG Grade manufacturers designation

GRDPRIO Standard designation of the grade main application

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

303-01 - Non-centre cutting end mill

LF Functional length

93 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0250

LOC-03 DCONMS Diameter

25 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$05

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL02501015

LPR Protruding length

75 mm

LS Shank length

56 mm

MILTTY Mill tool type ISO

J - Face and side and mill (one more then one indexable insert pro cutting edeg) 90°

Name Identifying order number

2883RZ.025020

OAL Overall length

125 mm

RE Corner radius

2 mm

TCDCONMS ISO-tolerance class shank diameter

Working process

No working processes available

ZEFP Peripheral effective cutting edge count
