Главная Каталог продукции Toolunited 10 303-01 - Non-centre cutting end mill 2869AZ.0250

2869AZ.0250

Артикул: 2869AZ.0250

В наличии

В корзину

Описание

Характеристики

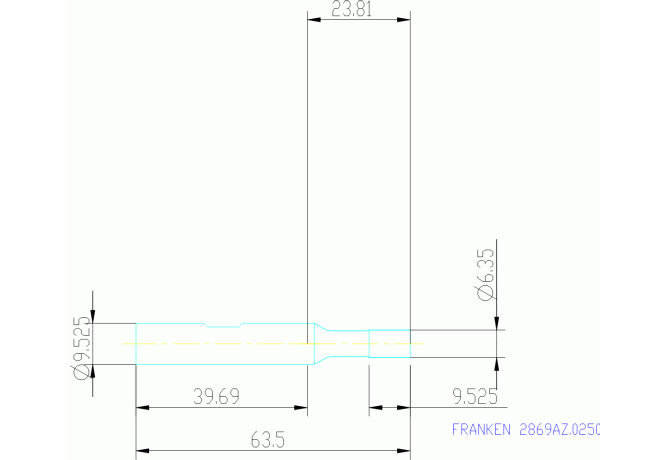

APMX Depth of cut maximum

9.525 mm

COATN Coating / Покрытие

TIALN

COMPC Company code

E - Emuge

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

DC Cutting diameter

6.35 mm

DIN

ZYL95251035

F71 Number of corner designs

FamilyProducts

Schaftfräser

FHH Flute helix hand

R - Hand of helix right

GRDMFG Grade manufacturers designation

GRDPRIO Standard designation of the grade main application

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

303-01 - Non-centre cutting end mill

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

3 Inch with coolant

LOC-03 CZCMS Connection size code

9525

LOC-03 DCONMS Diameter

9.525 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL95251035

LPR Protruding length

23.8 mm

Name Identifying order number

2869AZ.0250

OAL Overall length

63.5 mm

STDNO Standard

TCDCONMS ISO-tolerance class shank diameter

Working process

FDR - Rotary milling, turn milling,FEC - Square shoulder milling

WT Weight of item

0.001 kg

ZEFP Peripheral effective cutting edge count
