Главная Каталог продукции Toolunited 10 303-01 - Non-centre cutting end mill 2761A.0018

2761A.0018

Артикул: 2761A.0018

В наличии

В корзину

Описание

Характеристики

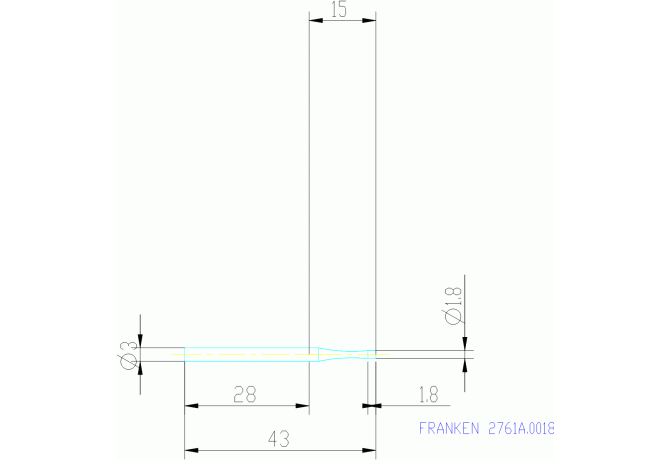

APMX Depth of cut maximum

1.8 mm

COATN Coating / Покрытие

TIALN

COMPC Company code

E - Emuge

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

1.8 mm

DIN

ZYL00300105

F71 Number of corner designs

FamilyProducts

Schaftfräser

FHH Flute helix hand

R - Hand of helix right

GRDMFG Grade manufacturers designation

GRDPRIO Standard designation of the grade main application

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

303-01 - Non-centre cutting end mill

LF Functional length

43 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0030

LOC-03 DCONMS Diameter

3 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$05

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00300105

LPR Protruding length

15 mm

Name Identifying order number

2761A.0018

OAL Overall length

43 mm

STDNO Standard

TCDCONMS ISO-tolerance class shank diameter

Working process

FDR - Rotary milling, turn milling,FEC - Square shoulder milling

WT Weight of item

0.001 kg

ZEFP Peripheral effective cutting edge count
