Главная Каталог продукции Toolunited 10 303-00 - End mill unspecified VQT6URR030R075S10

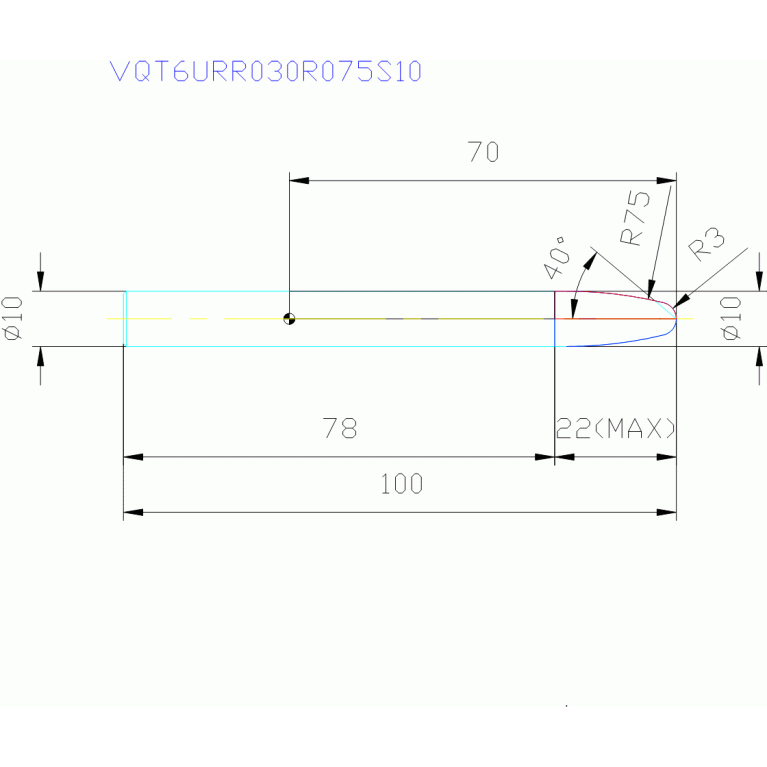

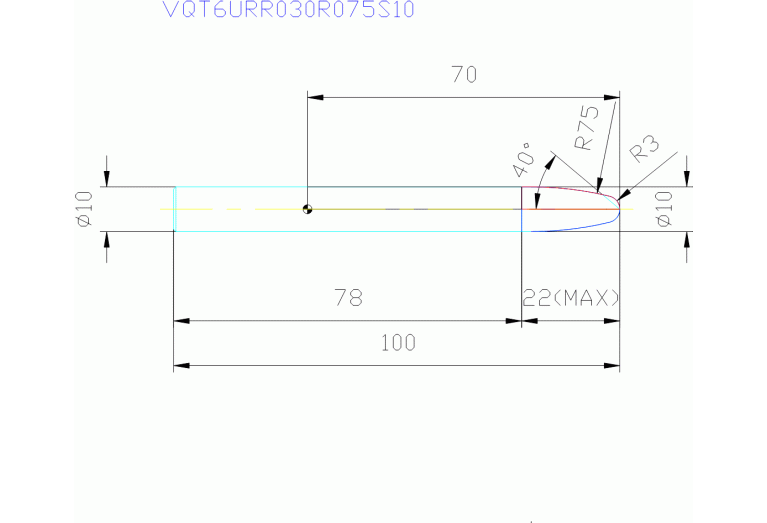

VQT6URR030R075S10

Артикул: 10596692

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

22 mm

BMC Body material code

H - Solid carbide

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating

AlCrN

COMPC Company code

MI - Mitsubishi Materials

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

10 mm

DCP Data chip provision

0 - Without data chip

DCX Cutting diameter maximum

10 mm

Delivery state valid from

12/1/2024

DIN

ZYL01000105

FamilyProducts

Carbide Corner radius end mill, Medium cut length, 4 flute, Irregular helix flutes

FHA Flute helix angle

40 Degree

FHH Flute helix hand

R - Hand of helix right

HAND Cutting direction

R - Right

ID Technical product number

10596692

Interface codes

J6 / J61

ISO

ZYL01G1000h$06

ISYC Subclass

303-00 - End mill unspecified

LF Functional length

100 mm

LH Head length

22 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0100

LOC-03 DCONMS Diameter

10 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03 ISO

ZYL01G1000h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01000105

LPR Protruding length

70 mm

LS Shank length

78 mm

LU Usable length

22 mm

Name Identifying order number

VQT6URR030R075S10

OAL Overall length

100 mm

PRFRAD Profile radius 1

3 mm

RE Corner radius

3 mm

TCDCONMS ISO-tolerance class shank diameter

Working process

FPL - Face milling

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
