Главная Каталог продукции Toolunited 10 303-00 - End mill unspecified JC898150G3HZ4A.0-M64

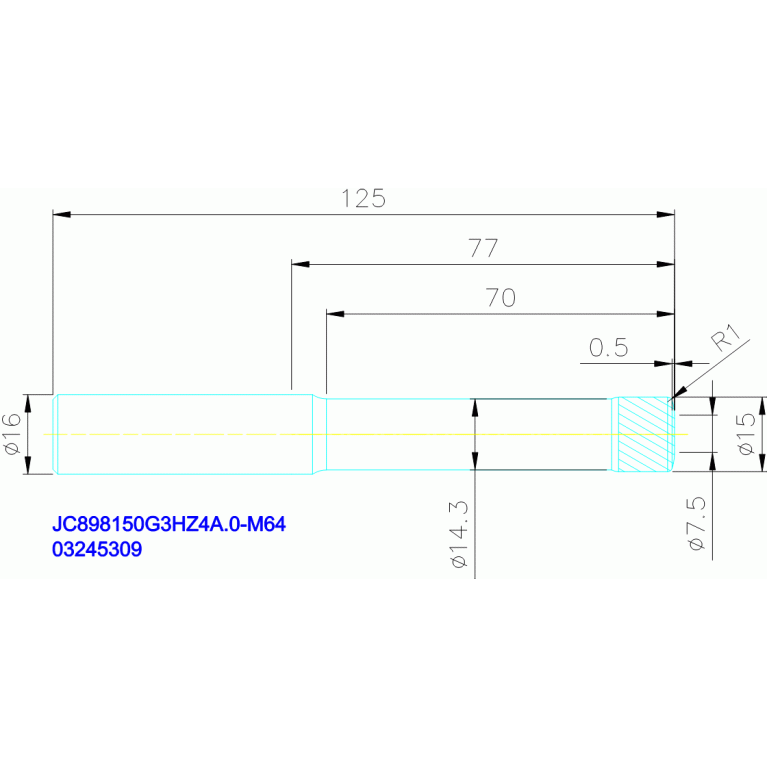

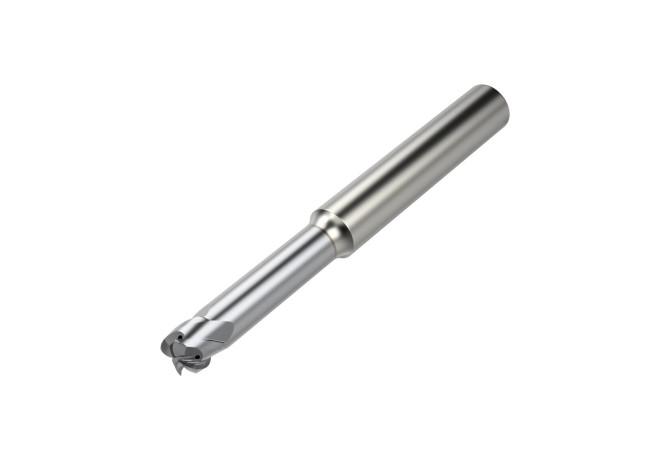

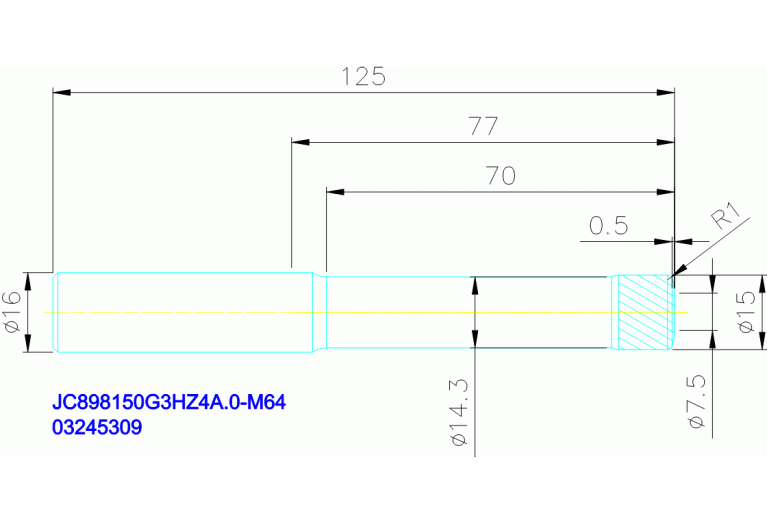

JC898150G3HZ4A.0-M64

JC898150G3HZ4A.0-M64 JC898150G3HZ4A.0-M64 JC898150G3HZ4A.0-M64

JC898150G3HZ4A.0-M64

Seco
Артикул: 03245309
В наличии
В корзину
Описание
Характеристики

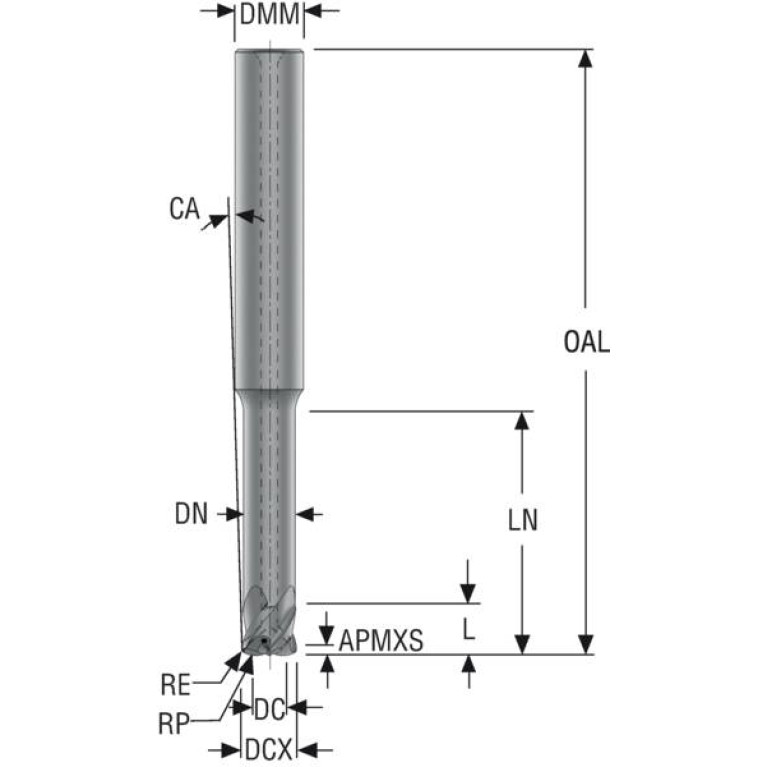

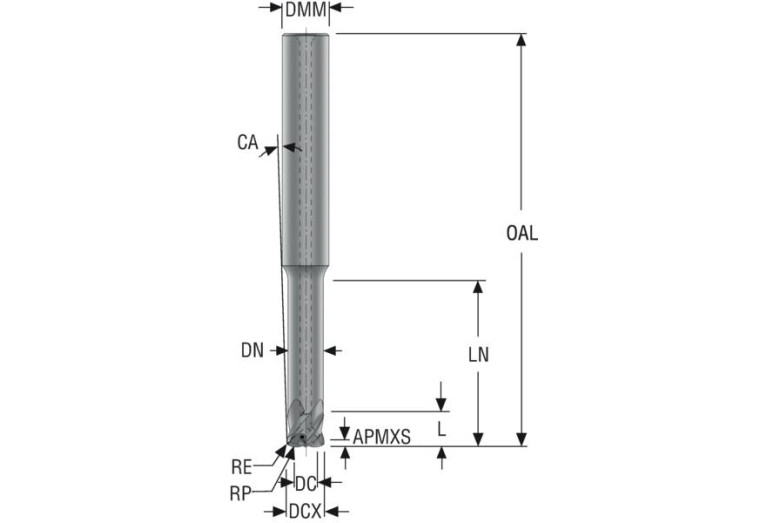

APMX Depth of cut maximum
1.35 mm
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COATN Coating / Покрытие
MEGA-64
COMPC Company code
SO - SECO Tools
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
DC Cutting diameter
7.5 mm
DCP Data chip provision
0 - Without data chip
DCX Cutting diameter maximum
15 mm
Delivery state valid from
12/1/2023
DIN
ZYL01600115
DN Neck diameter
14.3 mm
FamilyProducts
JC898150G3HZ4A.0-M64
FHA Flute helix angle
42 Degree
FHH Flute helix hand
R - Hand of helix right
GAMF Rake angle radial
5 Degree
GAMP Rake angle axial
10 Degree
HAND Cutting direction
R - Right
ID Technical product number
03245309
Interface codes
J6 /
ISYC Subclass
303-00 - End mill unspecified
KAPR Tool cutting edge angle
90 Degree
LN Neck length
70 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0160
LOC-03 DCONMS Diameter
16 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL01600115
LS Shank length
48 mm
Name Identifying order number
JC898150G3HZ4A.0-M64
OAL Overall length
125 mm
RE Corner radius
0.94 mm
RMPX Ramping angle maximum
1.5 Degree
Working process
No working processes available
WT Weight of item
0.292 kg
ZEFP Peripheral effective cutting edge count
4
