Главная Каталог продукции Toolunited 10 303-00 - End mill unspecified 48A10001T6RA101 IN2006

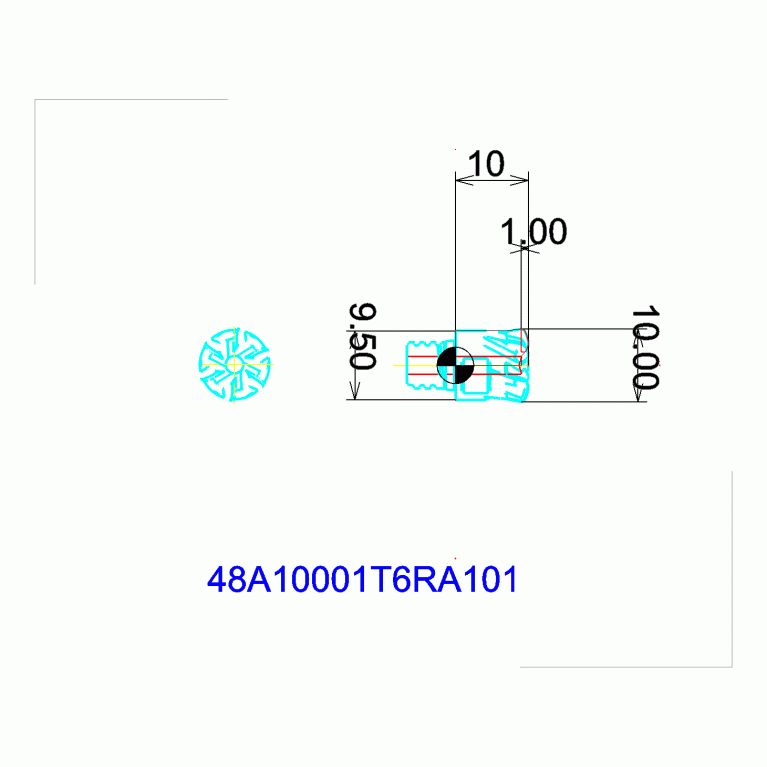

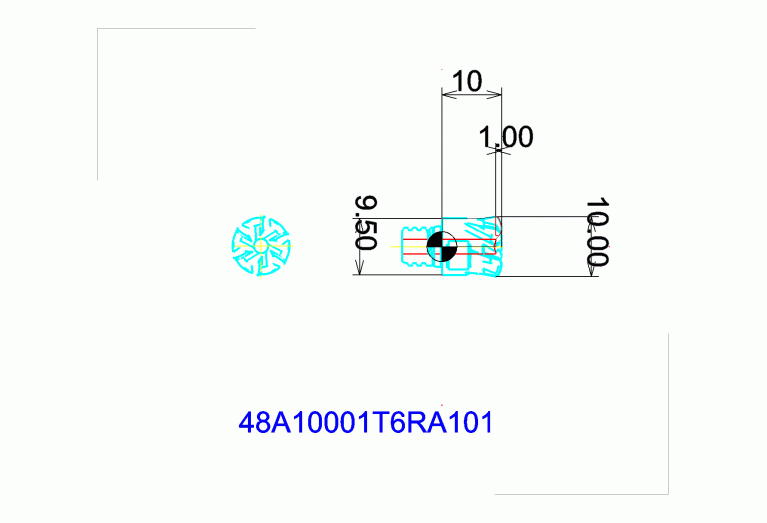

48A10001T6RA101 IN2006

Артикул: 2927968

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

0.5 mm

BMC Body material code

H - Solid carbide

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COATN Coating

TiAIN

COMPC Company code

IL - Ingersoll

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

DC Cutting diameter

10 mm

DCP Data chip provision

0 - Without data chip

Delivery state

LA - Soon discontinued

DIN

SAI00600115

FamilyProducts

High feed cutter Z=4 / Z=6

FHA Flute helix angle

0 Degree

FHH Flute helix hand

N - Hand of helix neutral

GRD2ND Standard designation of the grade 2nd application

HC-M20

GRDMFG Grade manufacturers designation

IN2006

GRDPRIO Standard designation of the grade main application

HC-P20

HAND Cutting direction

R - Right

ID Technical product number

2927968

Interface codes

J6 /

ISYC Subclass

303-00 - End mill unspecified

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

SAI Screw mounting ISCAR

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0060

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SAI00600115

Name Identifying order number

48A10001T6RA101 IN2006

OAL Overall length

16.65 mm

PRFRAD2 Profile radius 2

1 mm

THSZMS Connection thread nominal size machine side

Working process

No working processes available

WT Weight of item

0.012 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
