Главная Каталог продукции Toolunited 10 303-00 - End mill unspecified 3538L.10085A

3538L.10085A

Артикул: 3538L.10085A

В наличии

В корзину

Описание

Характеристики

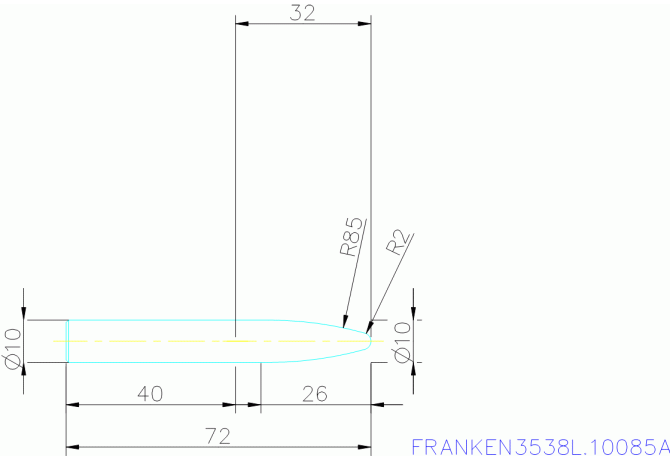

APMX Depth of cut maximum

26 mm

BMC Body material code

H - Solid carbide

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating

ALCR

COMPC Company code

E - Emuge

CRCLDIN Chip removal class

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

10 mm

DCONMSLD Shank diameter lower limit

-0.009 mm

DCONMSUD Shank diameter upper limit

0 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

10/1/2022

DIN

ZYL01000105

DN Neck diameter

10 mm

FamilyProducts

Circle Segment End Mill

FHA Flute helix angle

30 Degree

FHH Flute helix hand

R - Hand of helix right

GRDMFG Grade manufacturers designation

GRDPRIO Standard designation of the grade main application

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

303-00 - End mill unspecified

LF Functional length

72 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0100

LOC-03 DCONMS Diameter

10 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01000105

LPR Protruding length

32 mm

LS Shank length

40 mm

Name Identifying order number

3538L.10085A

OAL Overall length

72 mm

PRFRAD Profile radius 1

2 mm

TCDCONMS ISO-tolerance class shank diameter

Working process

No working processes available

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
