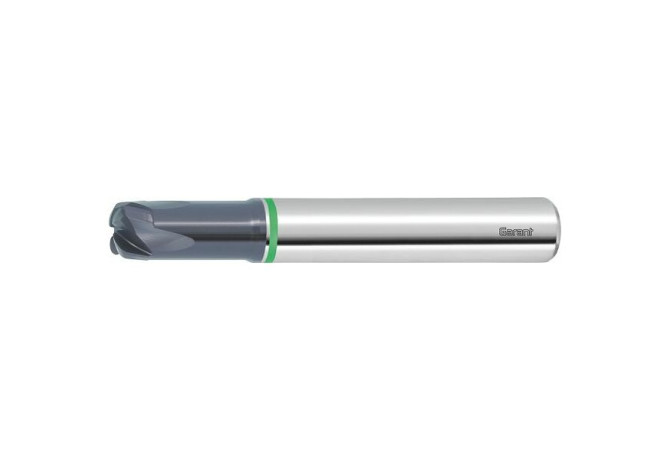

Главная Каталог продукции Toolunited 10 303-00 - End mill unspecified 206266 12

206266 12

Артикул: 206266 12

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

6.8 mm

AZ Plunge depth maximum

0 mm

BMC Body material code

H - Solid carbide

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating

TIALN

COMPC Company code

HOG - Hoffmann Group

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

12 mm

DCP Data chip provision

0 - Without data chip

DCX Cutting diameter maximum

4.5 mm

DIN

ZYL01200105

DN Neck diameter

11 mm

FamilyProducts

Solid carbide end torus cutter

FHA Flute helix angle

20 Degree

FHH Flute helix hand

R - Hand of helix right

GAMF Rake angle radial

12 Degree

GAMP Rake angle axial

-5 Degree

GRDMFG Grade manufacturers designation

VHM

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

303-00 - End mill unspecified

KAPR Tool cutting edge angle

15 Degree

LH Head length

7 mm

LN Neck length

30 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0120

LOC-03 DCONMS Diameter

12 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$05

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01200105

LPR Protruding length

35 mm

LS Shank length

58 mm

MILTTY Mill tool type ISO

N - Torus End Mill

Name Identifying order number

206266 12

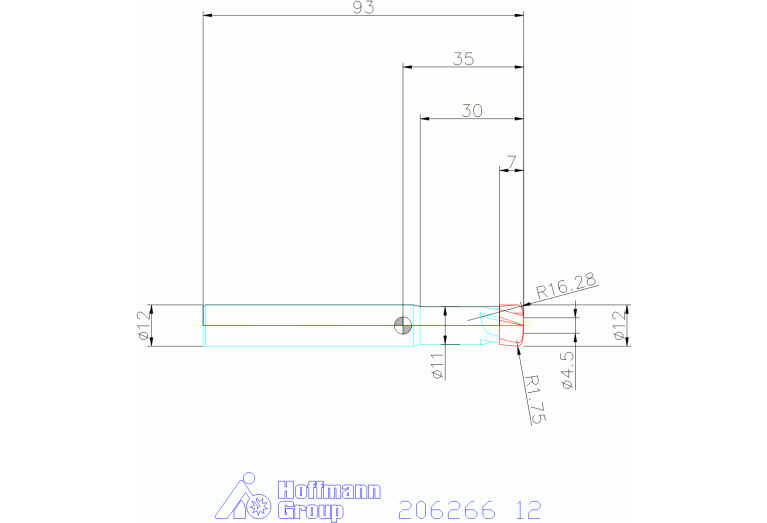

OAL Overall length

93 mm

RE Corner radius

1.3 mm

RMPX Ramping angle maximum

0 Degree

TCDCONMS ISO-tolerance class shank diameter

Working process

No working processes available

WT Weight of item

0.14 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
