Главная Каталог продукции Toolunited 10 303-00 - End mill unspecified 18S27756TRRP10 IN1530

18S27756TRRP10 IN1530

18S27756TRRP10 IN1530 18S27756TRRP10 IN1530 18S27756TRRP10 IN1530

18S27756TRRP10 IN1530

Ingersoll
Артикул: 2927851
В наличии
В корзину
Описание
Характеристики
APMX Depth of cut maximum
2.7 mm
BMC Body material code
H - Solid carbide
CNSC Coolant entry style code
0 - Without coolant entry
COATN Coating / Покрытие
TiCN+TiN
COMPC Company code
IL - Ingersoll
CXSC Coolant exit style code
0 - Without coolant exit
DC Cutting diameter
24.8 mm
DCP Data chip provision
0 - Without data chip
DCX Cutting diameter maximum
27.7 mm
Delivery state
LA - Soon discontinued
DIN
SAI01000105
DN Neck diameter
15.3 mm
FamilyProducts

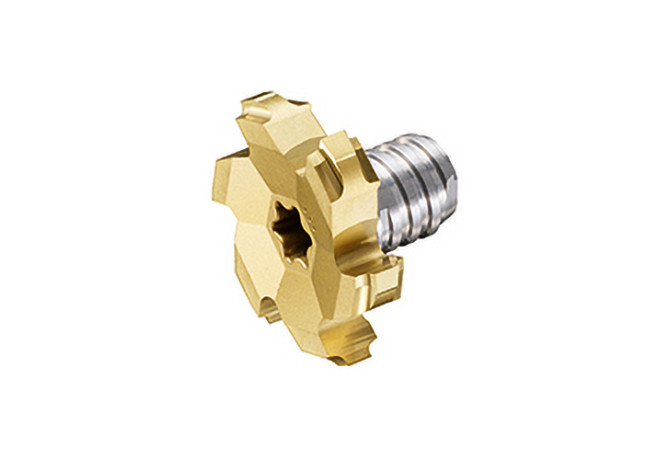

Concave radius milling cutter Z=6
FHA Flute helix angle
10 Degree
FHH Flute helix hand
R - Hand of helix right
GRDMFG Grade manufacturers designation
IN1530
HAND Cutting direction
R - Right
ID Technical product number
2927851
Interface codes
J6 /
ISYC Subclass
303-00 - End mill unspecified
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
SAI Screw mounting ISCAR
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0100
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SAI01000105
Name Identifying order number
18S27756TRRP10 IN1530
OAL Overall length
17.8 mm
PRFRAD2 Profile radius 2
1 mm
THSZMS Connection thread nominal size machine side
T10
Working process
No working processes available
ZEFP Peripheral effective cutting edge count
6
