Главная Каталог продукции Toolunited 10 302-06 - Spot drill 121130 5

121130 5

Артикул: 121130 5

В наличии

В корзину

Описание

Характеристики

CCONMS Connection count machine side

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating

TIAIN

COMPC Company code

HOG - Hoffmann Group

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter minimum

5 mm

DCP Data chip provision

0 - Without data chip

DIN

ZYL00600105

FamilyProducts

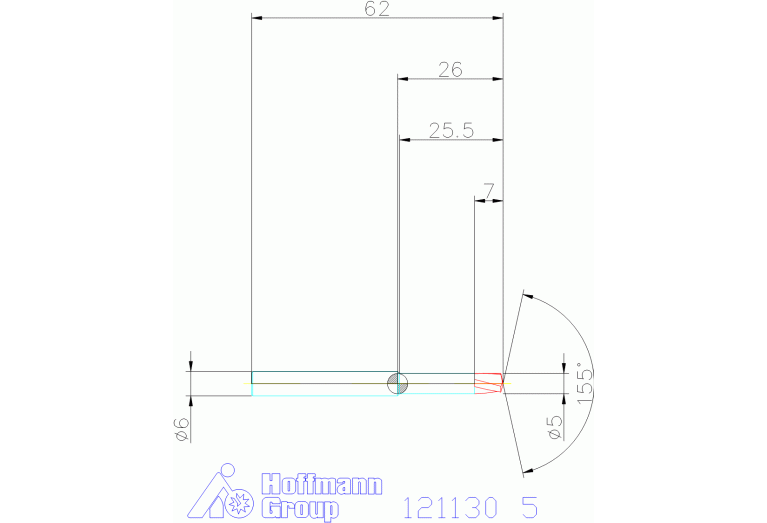

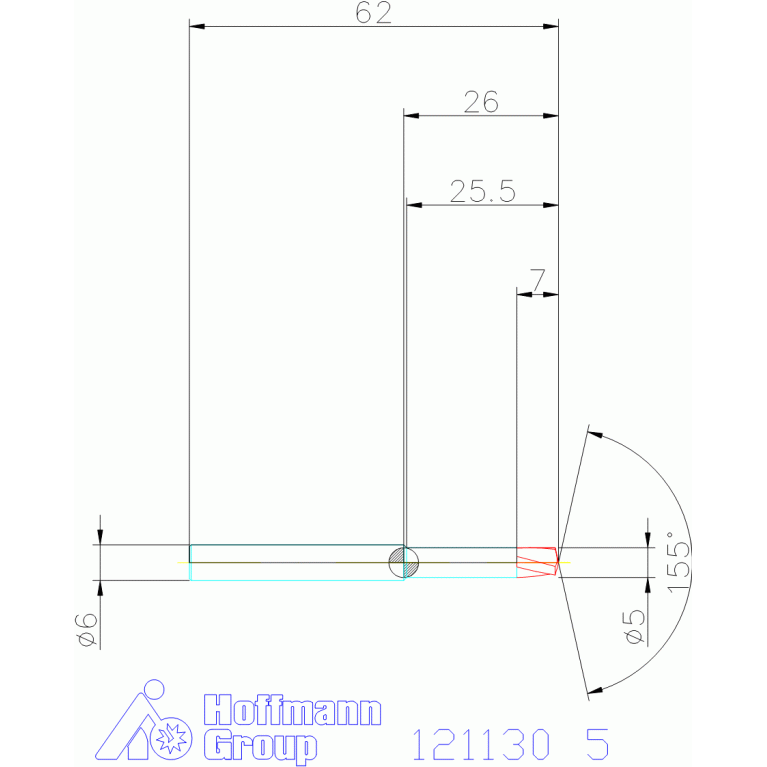

MasterSteel solid carbide NC spotting drill, plain shank 155° DIN 6535 HA

FHA Flute helix angle

15 Degree

FHH Flute helix hand

R - Hand of helix right

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

302-06 - Spot drill

LCF Length chip flute

7 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0060

LOC-03 DCONMS Diameter

6 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00600105

LPR Protruding length

26 mm

LS Shank length

36 mm

LU Usable length

7 mm

Name Identifying order number

121130 5

NOF Flute count

OAL Overall length

62 mm

PL Point length

0.554237 mm

SIG Point angle 1st step

155 Degree

TCDCONMS ISO-tolerance class shank diameter

Working process

BVB - Drilling

WT Weight of item

0.02 kg
