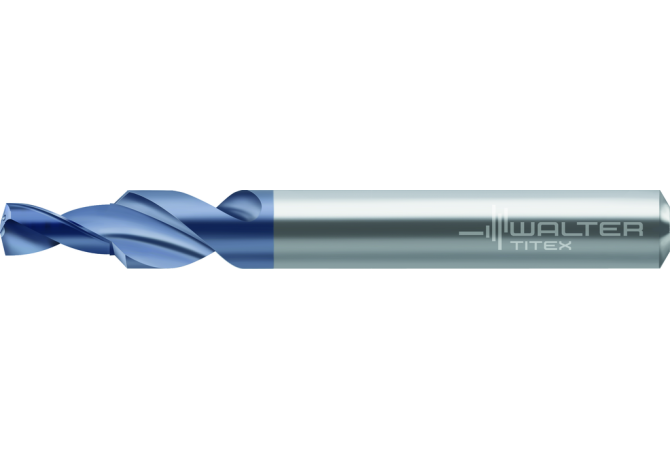

Главная Каталог продукции Toolunited 10 302-02 - Step drill K3281TFT-3/16IN

K3281TFT-3/16IN

Артикул: 6139326

В наличии

В корзину

Описание

Характеристики

BMC Body material code

H - Solid carbide

CCONMS Connection count machine side

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

W - Walter

CXSC Coolant exit style code

3 - With Coolant exit, axial and radial

DC Cutting diameter minimum

4.763 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2023

DIN

ZYL00800115

FamilyProducts

Solid carbide chamfer pilot drills with coolant-through K3281TFT

FHA Flute helix angle

30 Degree

FHH Flute helix hand

R - Hand of helix right

GRDMFG Grade manufacturers designation

TFT

HAND Cutting direction

R - Right

ID Technical product number

6139326

Interface codes

J6 / J61

ISO

ZYL01F8000h$06

ISYC Subclass

302-02 - Step drill

LCF Length chip flute

28 mm

LF Functional length

43 mm

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

ZYL cylindrical shank

LOC-03 CCUMS Unit base

1 Metric with coolant

LOC-03 CZCMS Size code

0080

LOC-03 DCONMS Diameter

8 mm

LOC-03 TCDCONCDMS Tolerance class coded

h$06

LOC-03 ISO

ZYL01F8000h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00800115

LPR Protruding length

43.000122 mm

LS Shank length

36 mm

LU Usable length

14.3 mm

Name Identifying order number

K3281TFT-3/16IN

NOF Flute count

NOS Step count

OAL Overall length

79 mm

PL Point length

0.638121 mm

RPMX Rotational speed maximum

100000 1/min

SDL Step diameter length

12 mm

SIG Point angle 1st step

150 Degree

STDLET Standard letter to the standard number

STDNO Standard

TP-NORM 64

TCDCONMS ISO-tolerance class shank diameter

Working process

BVB - Drilling

WT Weight of item

0.054 kg
