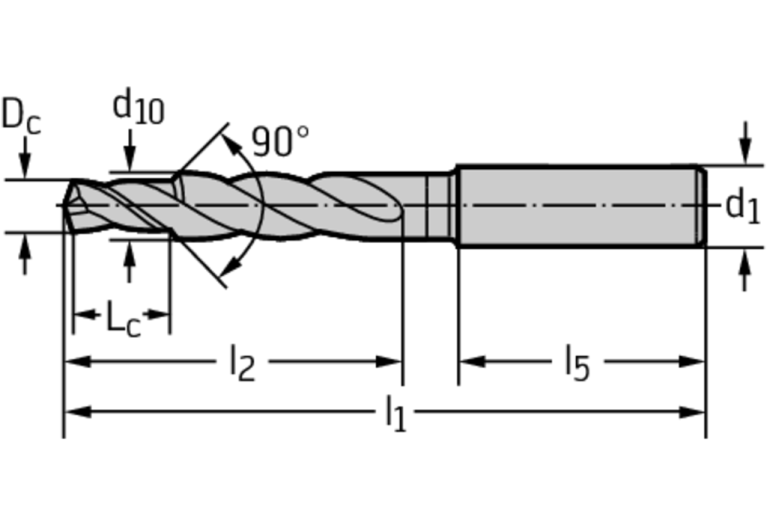

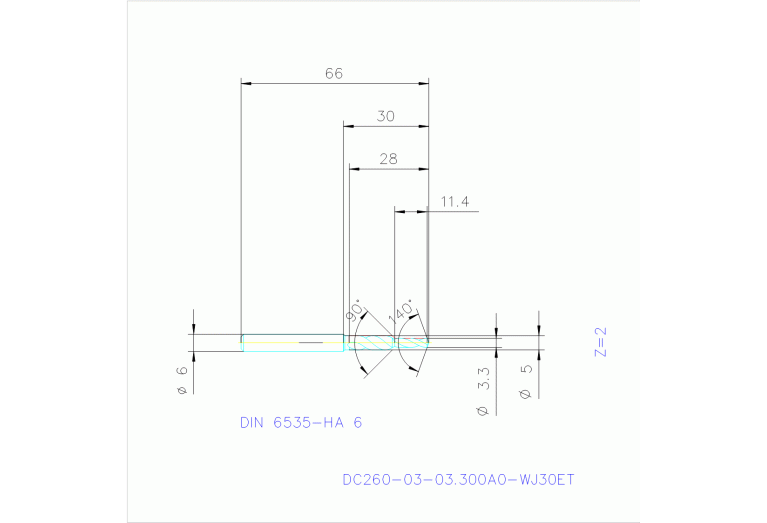

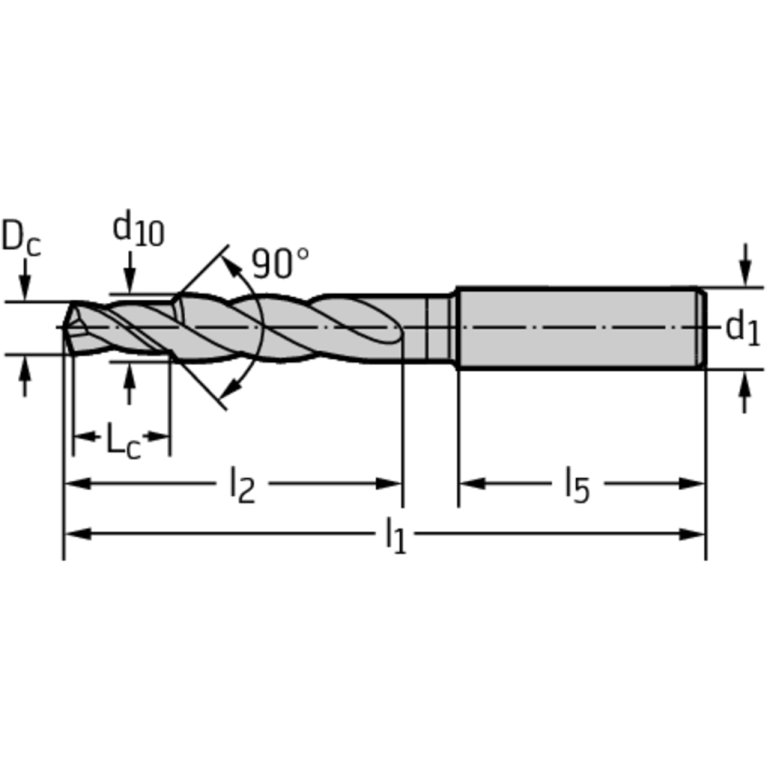

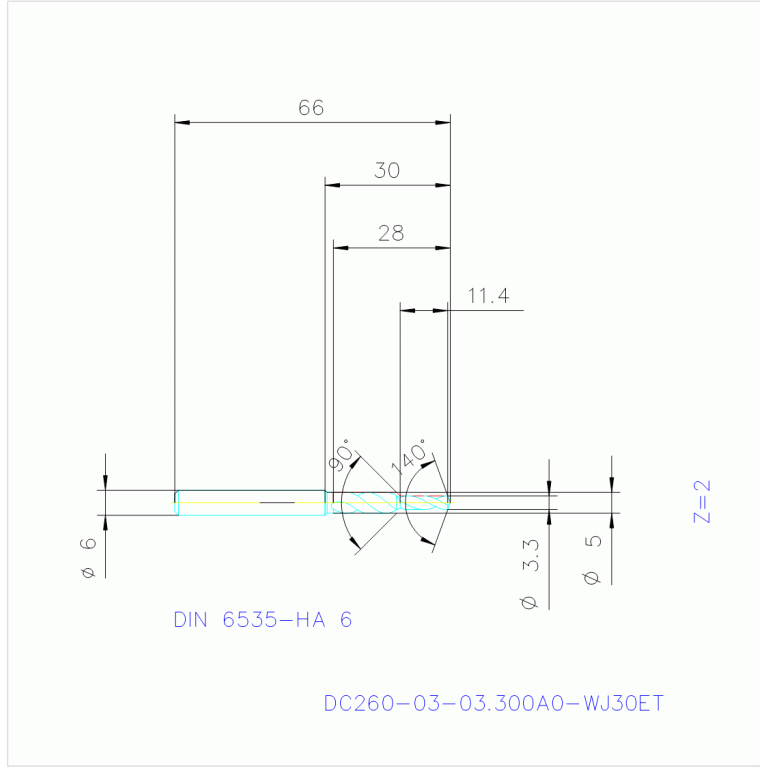

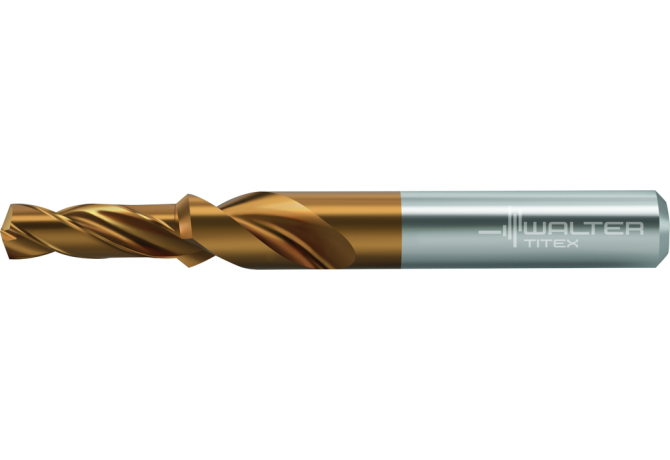

DC260-03-03.300A0-WJ30ET

DC260-03-03.300A0-WJ30ET DC260-03-03.300A0-WJ30ET DC260-03-03.300A0-WJ30ET DC260-03-03.300A0-WJ30ET

DC260-03-03.300A0-WJ30ET

Walter
Артикул: 7378925
В наличии
В корзину
Описание
Характеристики
BMC Body material code
H - Solid carbide
CCONMS Connection count machine side
2
CNSC Coolant entry style code
0 - Without coolant entry
COATN Coating
TiSiAlCrN/AlTiN
COMPC Company code
W - Walter
CXSC Coolant exit style code
0 - Without coolant exit
DC Cutting diameter minimum
3.3 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
ZYL00600105
FamilyProducts
Solid carbide twist drills DC260
FHA Flute helix angle
30 Degree
FHH Flute helix hand
R - Hand of helix right
GRDMFG Grade manufacturers designation
WJ30ET
HAND Cutting direction
R - Right
ID Technical product number
7378925
Interface codes
J6 / J61
ISO
ZYL01F6000h$06
ISYC Subclass
302-02 - Step drill
LCF Length chip flute
28 mm
LDRED Neck length
12.9 mm
LF Functional length
65.399 mm
LOC-03 CCFMS Form
01
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
ZYL cylindrical shank
LOC-03 CCUMS Unit base
0 Metric
LOC-03 CZCMS Size code
0060
LOC-03 DCONMS Diameter
6 mm
LOC-03 TCDCONCDMS Tolerance class coded
h$06
LOC-03 ISO
ZYL01F6000h$06
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL00600105
LPR Protruding length
30.001 mm
LS Shank length
36 mm
LU Usable length
12.9 mm
Materials
P,K,N,S,H,O
Name Identifying order number
DC260-03-03.300A0-WJ30ET
NOF Flute count
2
NOS Step count
2
OAL Overall length
66 mm
PL Point length
0.601 mm
RPMX Rotational speed maximum
100000 1/min
SDL Step diameter length
11.4 mm
SIG Point angle 1st step
140 Degree
STDLET Standard letter to the standard number
HA
STDNO Standard
TP-NORM 65
TCDCONMS ISO-tolerance class shank diameter
h6
Working process
BVB - Drilling
WT Weight of item
0.018 kg
