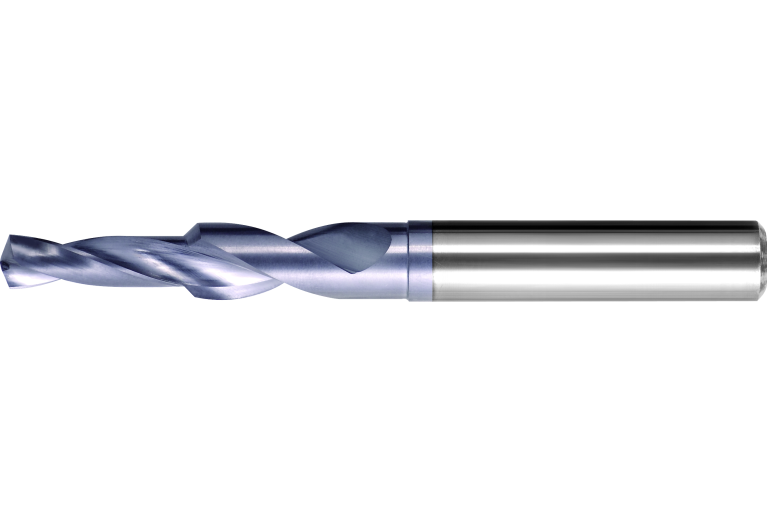

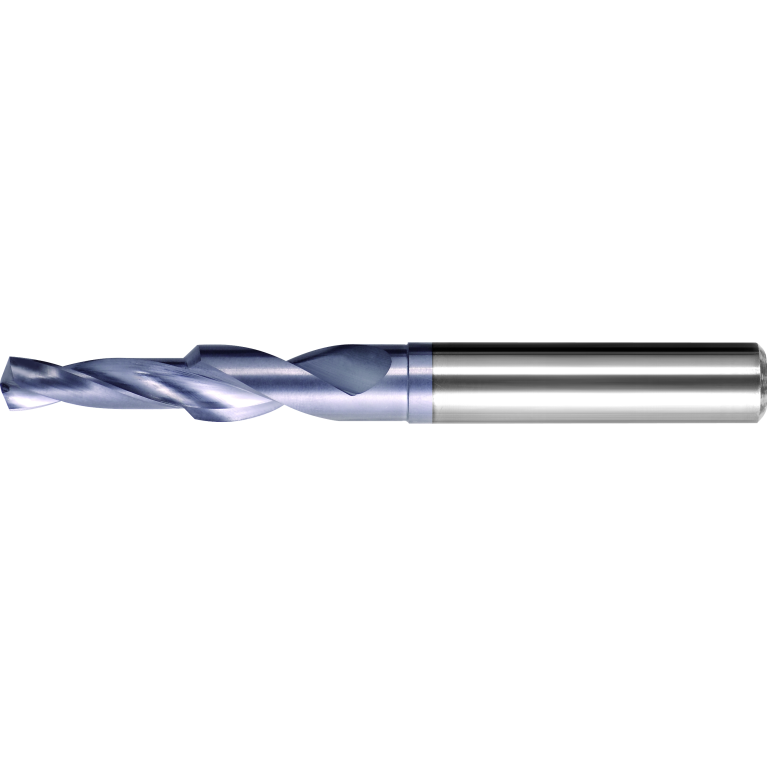

1557SU03-M4 KDG303
1557SU03-M4 KDG303
Артикул:
1557SU03-M4 KDG303
В наличии
Характеристики
CCONMS Connection count machine side
1
CNSC Coolant entry style code
0 - Without coolant entry
COATN Coating
AlTiN
COMPC Company code
ZCC - ZCC Cutting Tools
CXSC Coolant exit style code
0 - Without coolant exit
DC Cutting diameter minimum
3.3 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
0.22 kg
DIN
ZYL00600105
FamilyProducts
SU drill 3xD
FHH Flute helix hand
R - Hand of helix right
GRDMFG Grade manufacturers designation
KDG303
HAND Cutting direction
R - Right
ID Identifying order number
1557SU03-M4 KDG303
Interface codes
J6 /
ISYC Subclass
302-02 - Step drill
LCF Length chip flute
28 mm
LOC-03 CCFMS Form
01
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
ZYL cylindrical shank
LOC-03 CCUMS Unit base
0 Metric
LOC-03 CZCMS Size code
0060
LOC-03 DCONMS Diameter
6 mm
LOC-03 TCDCONCDMS Tolerance class coded
h$06
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL00600105
LS Shank length
36 mm
NOF Flute count
2
NOS Step count
2
OAL Overall length
66 mm
SDL Step diameter length
11.4 mm
SIG Point angle 1st step
140 Degree
TCDCONMS ISO-tolerance class shank diameter
h6
Working process
BPB - Drilling of profiles
